FRONT WHEELS
4-6
EAS21890
REMOVING THE FRONT WHEELS
1. Place the vehicle on a level surface.
2. Elevate:
• Front wheels
T
IP
Place the vehicle on a suitable stand so that the
front wheels are elevated.
3. Remove:
• Front brake calipers
T
IP
Do not apply the brake lever when removing the
brake calipers.
EAS29380
CHECKING THE FRONT WHEELS
The following procedure applies to both of the
front wheels.
1. Check:
• Tire
• Wheel
Refer to “CHECKING THE TIRES” on page
3-34 and “CHECKING THE WHEELS” on
page 3-35.

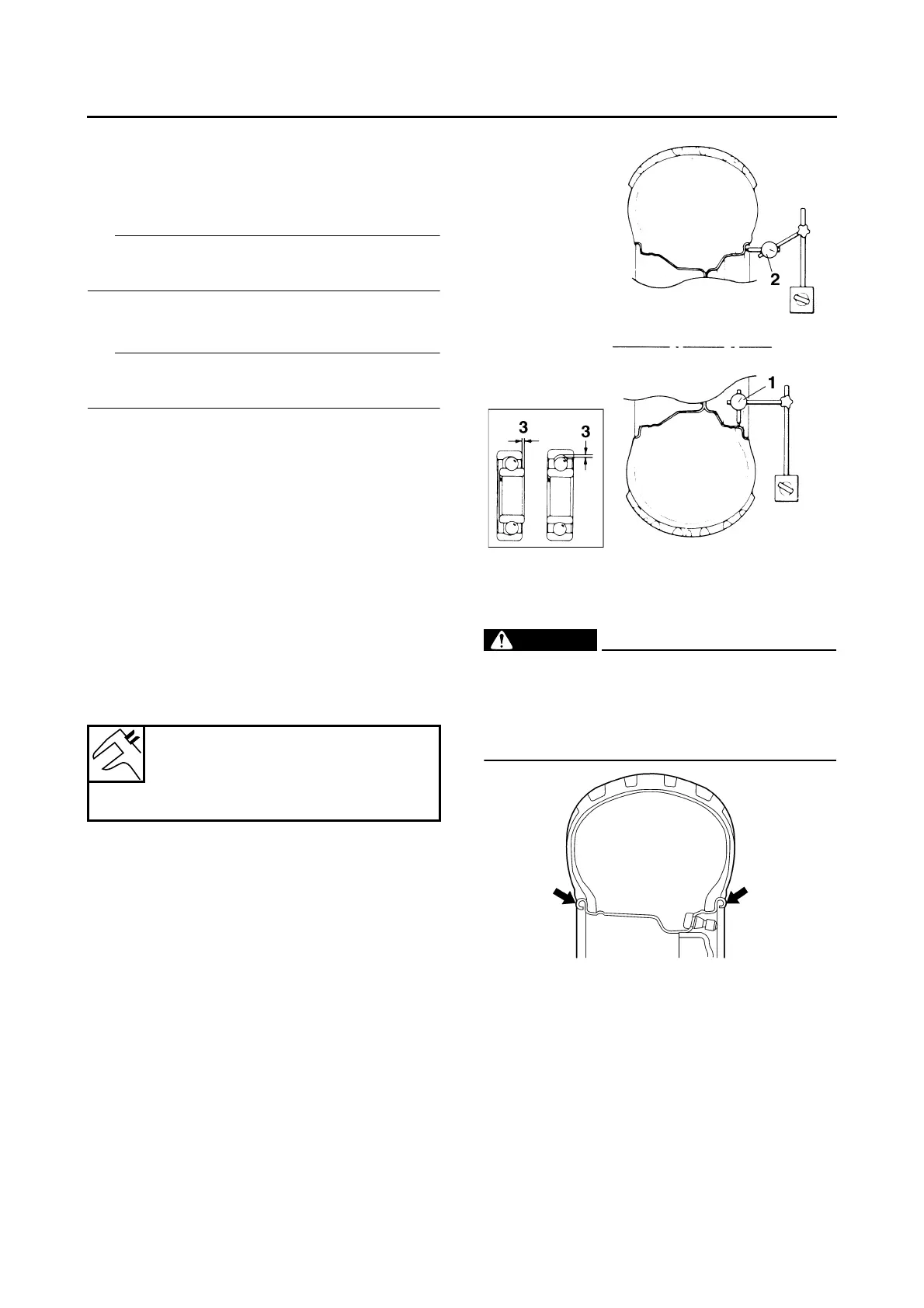

2. Measure:
• Radial wheel runout “1”
• Lateral wheel runout “2”
Over the specified limit → Replace the wheel
or check the wheel bearing play “3”.
3. Check:
• Wheel balance
Out of balance → Adjust.
WARNING
EWA15000
After replacing the tire, ride conservatively to
allow the tire to be properly seated in the rim.
Failure to do so may cause an accident re-
sulting in vehicle damage and possible inju-
ry.
EAS29390
CHECKING THE FRONT WHEEL HUBS
The following procedure applies to both of the
front wheel hubs.
1. Check:
• Wheel hub “1”
Cracks/damage → Replace.
Radial wheel runout limit
2.0 mm (0.08 in)
Lateral wheel runout limit
2.0 mm (0.08 in)
