TRANSMISSION
5-65
EAS26241
TRANSMISSION

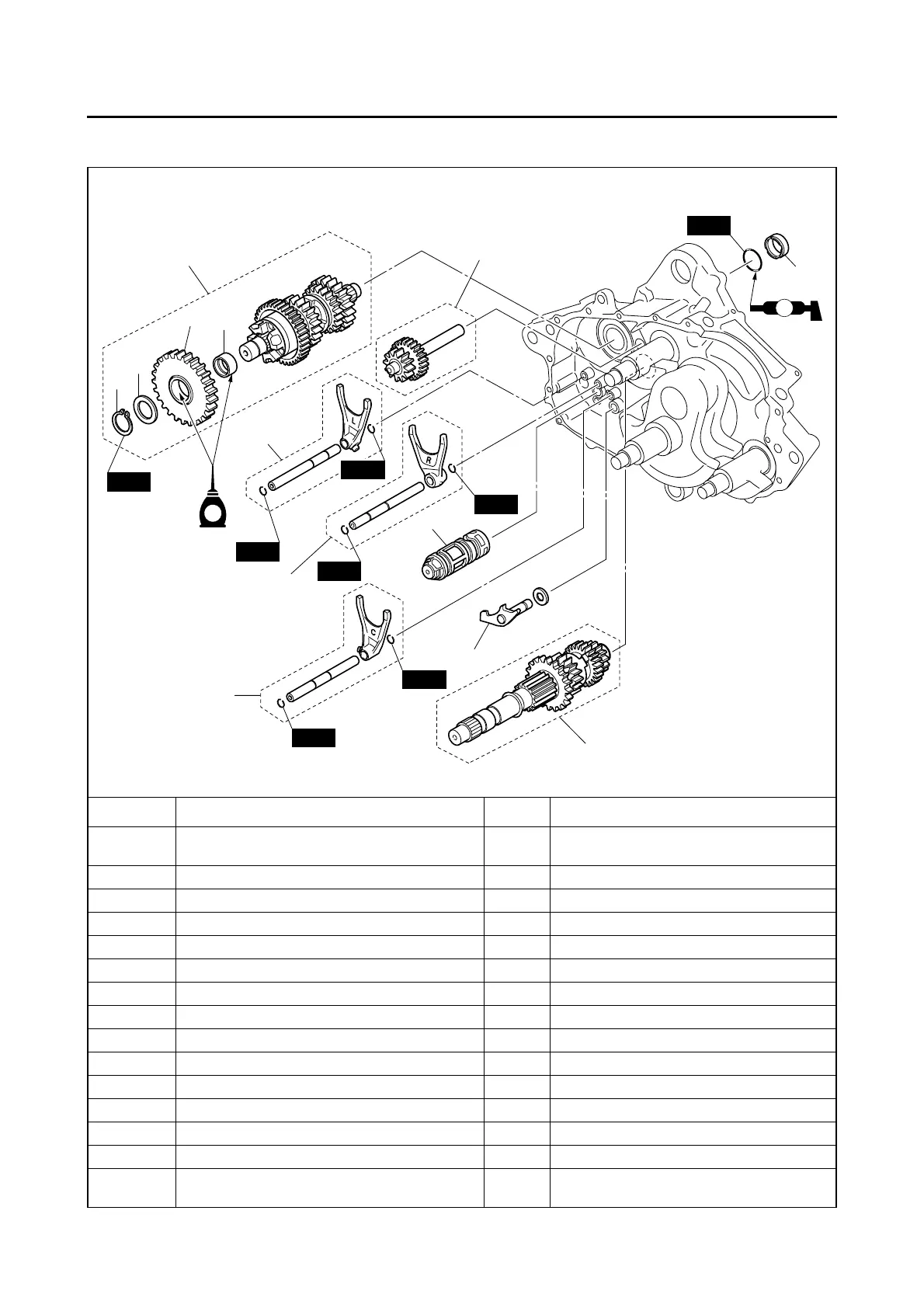

Removing the transmission, shift drum assembly, and shift forks
Order Job/Parts to remove Q’ty Remarks
Crankcase
Separate.
Refer to “CRANKCASE” on page 5-56.
1 Spacer 1
2 Circlip 1
3Washer 1
4 Reverse wheel gear 2 1
5 Spacer 1
6 Counter axle assembly 1
7 Shift drum 1
8 Shift fork “R” 1
9 Shift fork “C” 1
10 Shift fork “L” 1
11 Drive axle assembly 1
12 Main axle assembly 1
13 Reverse shift shaft 1
For installation, reverse the removal proce-
dure.
M
12
13
New
New
New
New
New
New
New
9
7
10
8
2
3
4
5
11
6
1
New
LS
