CHASSIS
3-29
Refer to “FRONT ARMS AND FRONT
SHOCK ABSORBER ASSEMBLIES” on
page 4-49.
3. Check:
• Operation
Pump the front shock absorber assembly up
and down several times.
Unsmooth operation → Replace front shock
absorber assembly.
Refer to “FRONT ARMS AND FRONT
SHOCK ABSORBER ASSEMBLIES” on
page 4-49.
EAS1S3L007

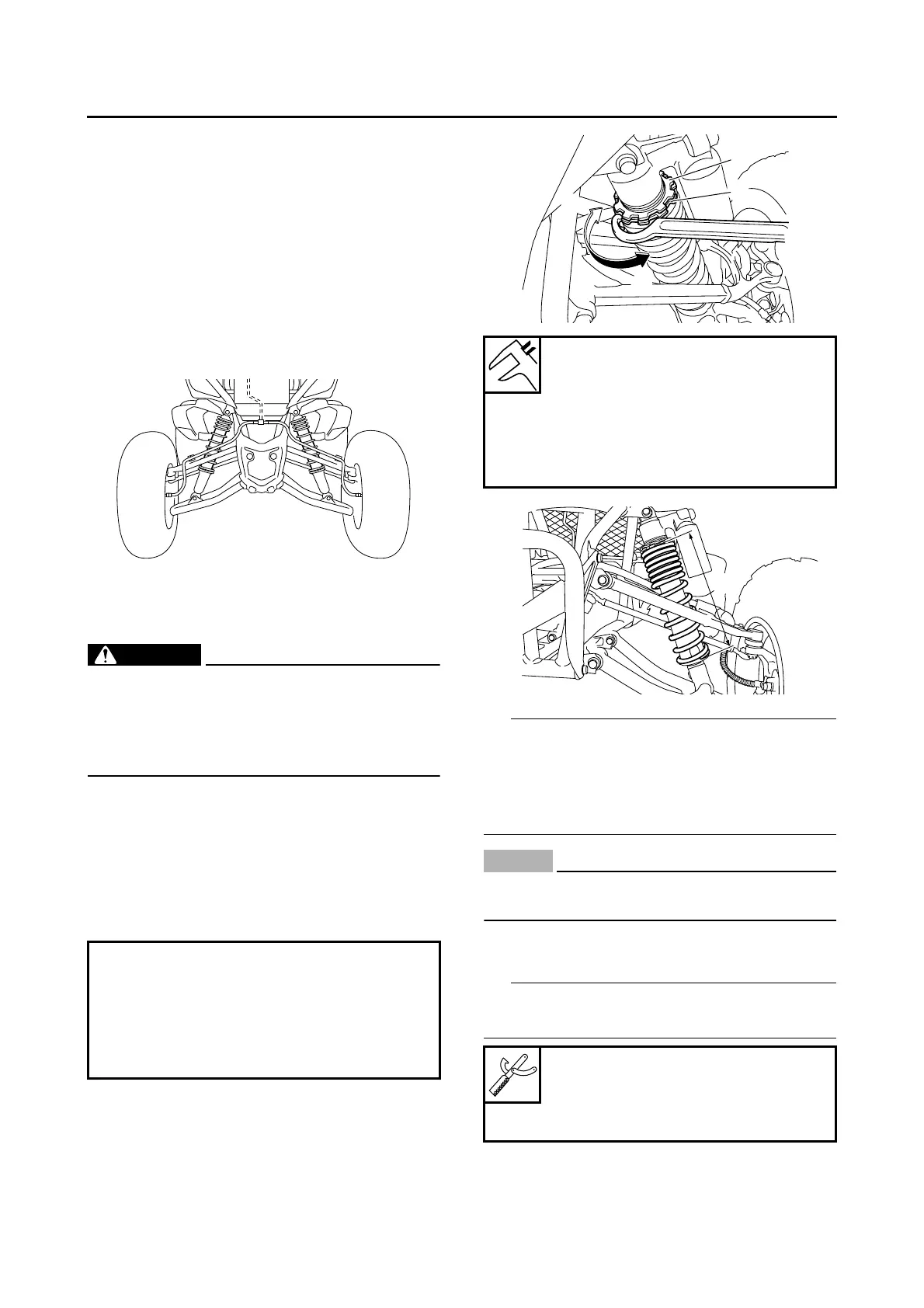

ADJUSTING THE FRONT SHOCK
ABSORBER ASSEMBLIES
WARNING
EWA1S3L002
Always adjust the spring preload, rebound
damping force and compression damping
force of both front shock absorbers to the
same setting. Uneven adjustment can result
in poor handling and loss of stability.
1. Adjust:
• Spring preload
▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼▼▼
a. Elevate the front wheels by placing a suitable
stand under the frame.
b. Loosen the locknut “1”.
c. Turn the adjusting ring “2” in direction “a” or
“b”.
IP
• Be sure to remove all dirt and mud from around
the locknut and adjusting ring before adjust-
ment.
• The length of the spring (installed) changes 1.5
mm (0.06 in) per turn of the adjuster.
NOTICE
ECA1S3L002
Never attempt to turn the adjusting ring be-
yond the maximum or minimum setting.
d. Tighten the locknut “1” with a steering nut
wrench “3”.
IP
Set the torque wrench at a right angle to the
steering nut wrench.
Direction “a”
Spring preload is increased (suspen-
sion is harder).
Direction “b”
Spring preload is decreased (suspen-
sion is softer).
Adjusting length “c”
Minimum
251.0 mm (9.88 in)
Standard
260.0 mm (10.24 in)
Maximum
263.0 mm (10.35 in)
Steering nut wrench
90890-01443
Spanner wrench
YU-33975
1
2
a
b
c
