CHASSIS
3-28
▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲▲▲
3. Adjust:
• Toe-in
WARNING
EWA14910
• Be sure that both tie-rods are turned the
same amount. If not, the vehicle will drift
right or left even though the handlebar is
positioned straight. This may lead to mis-
handling and an accident.
• After setting the toe-in to specification, run
the vehicle slowly for some distance with
both hands lightly holding the handlebar
and check that the handlebar responds cor-
rectly. If not, turn either the right or left tie-
rod within the toe-in specification.
▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼▼▼

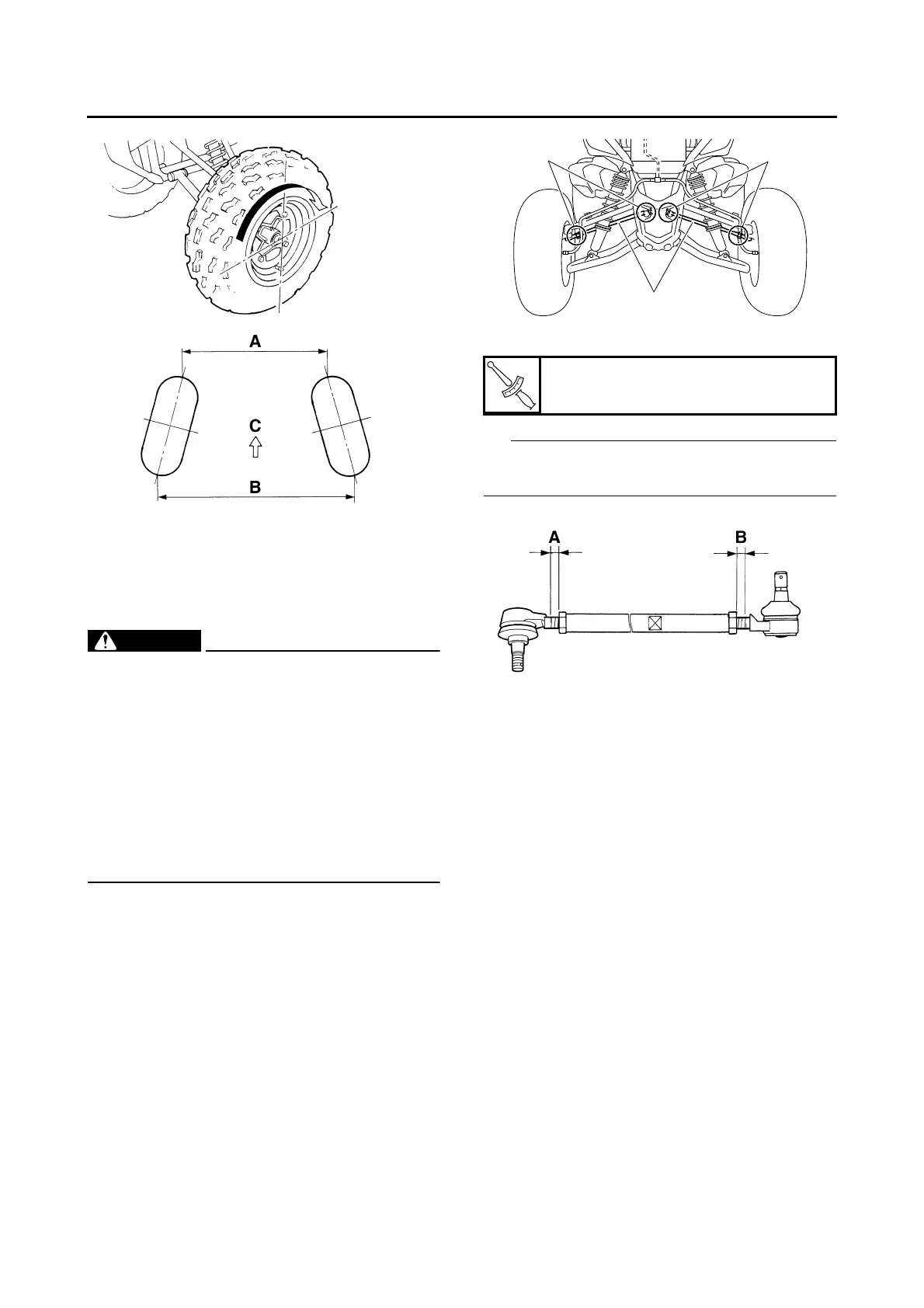

a. Mark both tie-rod ends.
This reference point will be needed during
adjustment.
b. Loosen the locknuts (tie-rod end) “1” of both
tie-rods.
c. The same number of turns should be given to
both the right and left tie-rods “2” until the
specified toe-in is obtained. This is to keep
the length of the tie-rods the same.
d. Tighten the rod end locknuts of both tie-rods.
IP
Adjust the tie-rod ends so that “A” and “B” are
equal.
▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲▲▲
EAS29300
CHECKING THE FRONT SHOCK ABSORBER
ASSEMBLIES
The following procedure applies to both of the
front shock absorber assemblies.
1. Place the vehicle on a level place.
2. Check:
• Damper rod
Bends/damage → Replace the front shock
absorber assembly.
Refer to “FRONT ARMS AND FRONT
SHOCK ABSORBER ASSEMBLIES” on
page 4-49.
• Oil leakage
Excessive oil leakage → Replace the front
shock absorber assembly.
Refer to “FRONT ARMS AND FRONT
SHOCK ABSORBER ASSEMBLIES” on
page 4-49.
• Spring
Fatigue → Replace the front shock absorber
assembly.
C. Forward
T
R
.
.
Locknut (tie-rod end)
18 Nm (1.8 m·kg, 13 ft·lb)
1
1
2
To Next Page
