ENGINE
3-14
IP

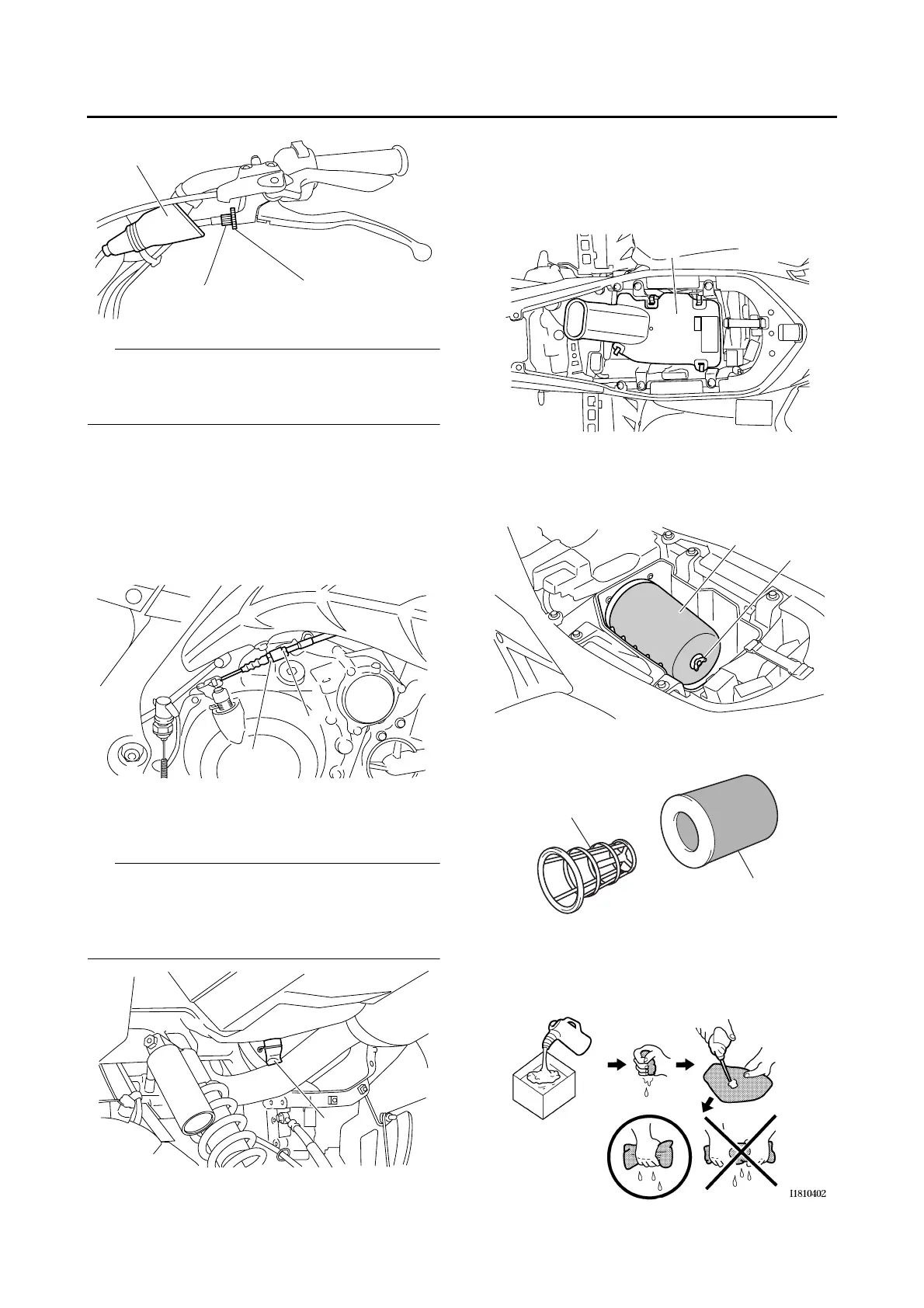

If the specified clutch cable free play cannot be
obtained on the handlebar side of the cable, use
the adjusting nut on the engine side.
▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲▲▲
▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼▼▼
Engine side
a. Loosen the locknut “4”.
b. Turn the adjusting bolt “5” until the specified
clutch cable free play is obtained.
c. Tighten the locknut.
▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲▲▲
EAS20941
CLEANING THE AIR FILTER ELEMENT
IP
On the bottom of the air filter case is a check
hose “1”. If dust or water or both collects in this
hose, clean the air filter element and air filter
case.
1. Remove:
• Seat
Refer to “GENERAL CHASSIS” on page 4-1.
2. Remove:
• Air filter case cover “1”
3. Remove:
• Wing bolt “1”
• Air filter element “2”
• Air filter element frame “3”
4. Clean:
• Air filter element
(with solvent)
2
3
1
4
5
1
1
1
2
3
2
