Yamaha Raptor 700R 2009 Service Manual

CYLINDER AND PISTON
5-26
EAS24350
CYLINDER AND PISTON

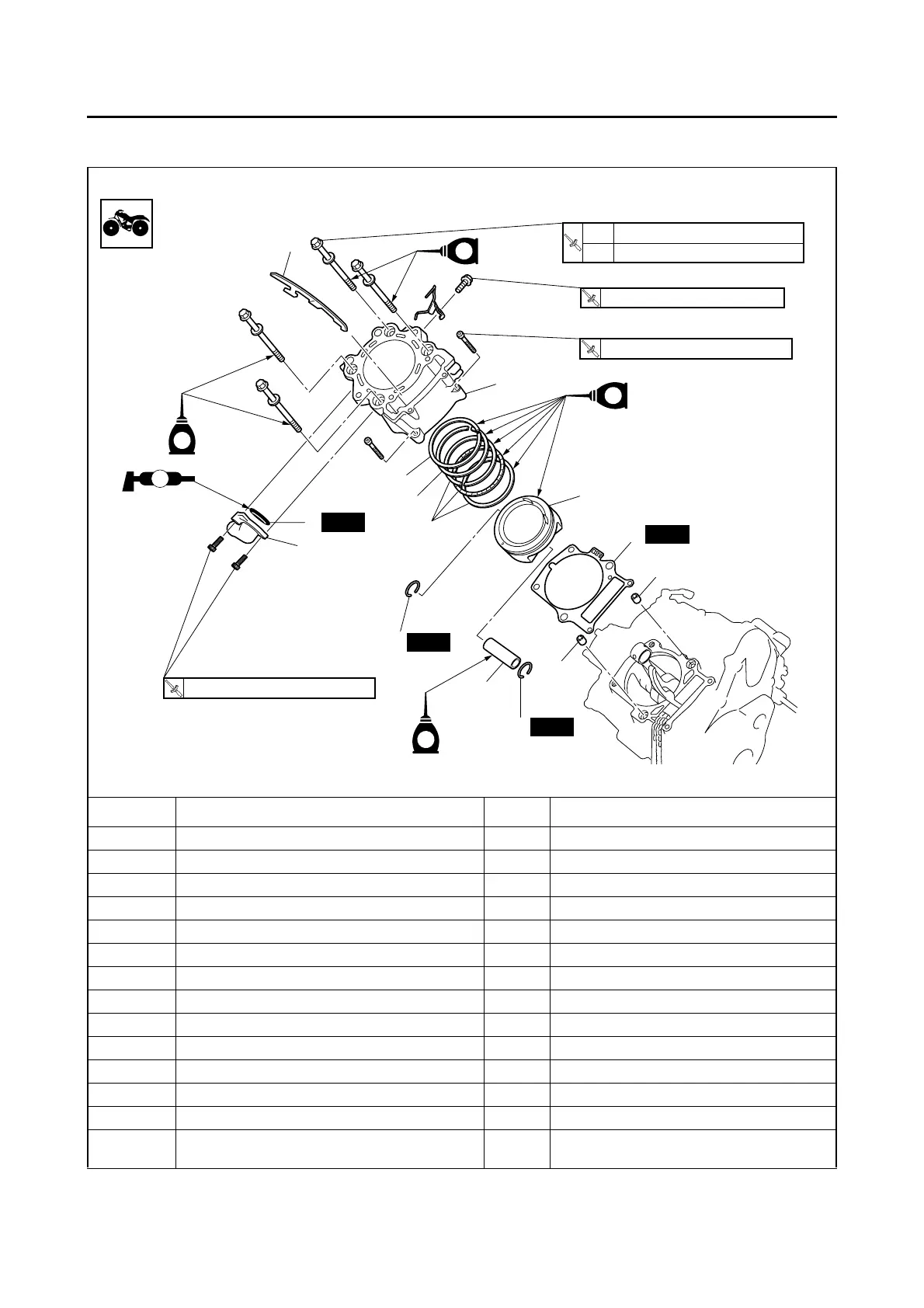

Removing the cylinder and piston
Order Job/Parts to remove Q’ty Remarks
Cylinder head Refer to “CYLINDER HEAD” on page 5-8.
1 Timing chain guide (exhaust side) 1
2 Water jacket joint 1
3O-ring 1
4 Cylinder 1
5 Cylinder gasket 1
6 Dowel pin 2
7 Piston pin clip 2
8 Piston pin 1
9Piston 1
10 Top ring 1
11 2nd ring 1
12 Oil ring 1
For installation, reverse the removal proce-
dure.
T
R
.
.
1st 15Nm (1.5 m
•
kg, 11 ft
•
lb)
2nd 50Nm (5.0m
•
kg, 5.1 ft
•
lb)
T
R
.
.
10 Nm (1.0 m
•
kg, 7.2 ft
•
Ib)
New
7
6
6
5
9
New
New
7
New
3
10
1
2
8
11
12
4
T
R
.
.
10 Nm (1.0 m
•
kg, 7.2 ft
•
Ib)
LS
E
E
E
E
T
R
.
.
7 Nm (0.7 m
•
kg, 5.1 ft
•
Ib)
