Check each bulb socket for continuity in the
same manner as described in the bulb section;
however, note the following.
▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼▼▼
a. Install a good bulb into the bulb socket.
b. Connect the pocket tester probes to the re-
spective leads of the bulb socket.
c. Check the bulb socket for continuity. If any of
the readings indicate no continuity, replace
the bulb socket.
▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲▲▲
EAS28000

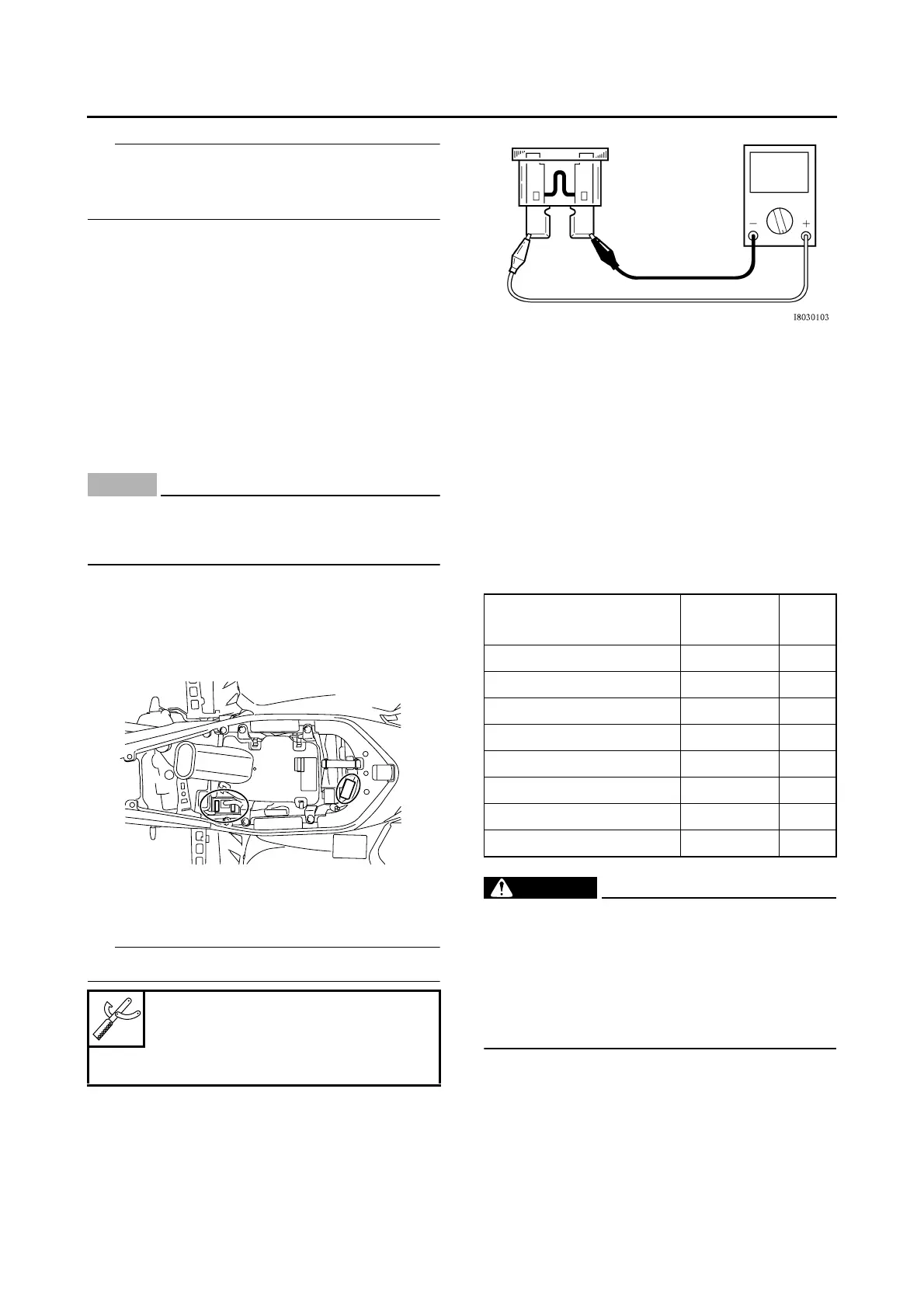

CHECKING THE FUSES
The following procedure applies to all of the fus-
es.
NOTICE
ECA13680
To avoid a short circuit, always set the main
switch to “OFF” when checking or replacing
a fuse.
1. Remove:
• Seat
Refer to “GENERAL CHASSIS” on page 4-1.
2. Check:
• Fuse
▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼▼▼
a. Connect the pocket tester to the fuse and
check the continuity.
IP
Set the pocket tester selector to “Ω × 1”.
b. If the pocket tester indicates “∞”, replace the
fuse.
▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲▲▲
3. Replace:
• Blown fuse
▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼▼▼
a. Set the main switch to “OFF”.
b. Install a new fuse of the correct amperage
rating.
c. Set the switches to on to verify if the corre-
sponding electrical circuits are operational.
d. If the fuse immediately blows again, check
the electrical circuit.
WARNING
EWA13310
Never use a fuse with an amperage rating
other than that specified. Improvising or us-
ing a fuse with the wrong amperage rating
may cause extensive damage to the electri-
cal system, cause the lighting and ignition
systems to malfunction and could possibly
cause a fire.
▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲▲▲
4. Install:
• Seat
Refer to “GENERAL CHASSIS” on page 4-1.
Pocket tester
90890-03112
Analog pocket tester
YU-03112-C
Fuses
Amperage
rating
Q’ty
Main 20 A 1
Headlight 15 A 1
Ignition 10 A 1
Fuel injection system 10 A 1
Signaling system 10 A 1
Spare 20 A 1
Spare 15 A 1
Spare 10 A 1
