FUEL INJECTION SYSTEM
8-31
EAS27350
ECU SELF-DIAGNOSTIC FUNCTION
The ECU is equipped with a self-diagnostic function in order to ensure that the fuel injection system is
operating normally. If this function detects a malfunction in the system, it immediately operates the en-
gine under substitute characteristics and illuminates the engine trouble warning light to alert the rider
that a malfunction has occurred in the system. Once a malfunction has been detected, a fault code is
stored in the memory of the ECU.
• To inform the rider that the fuel injection system is not functioning, the engine trouble warning light
flashes when the start switch is being pushed to start the engine.
• If a malfunction is detected in the system by the self-diagnostic function, the ECU provides an appro-
priate substitute characteristic operation, and alerts the rider of the detected malfunction by illuminat-
ing the engine trouble warning light.
• After the engine has been stopped, the lowest fault code number appears on the multi-function meter.
Once a fault code has been displayed, it remains stored in the memory of the ECU until it is deleted.

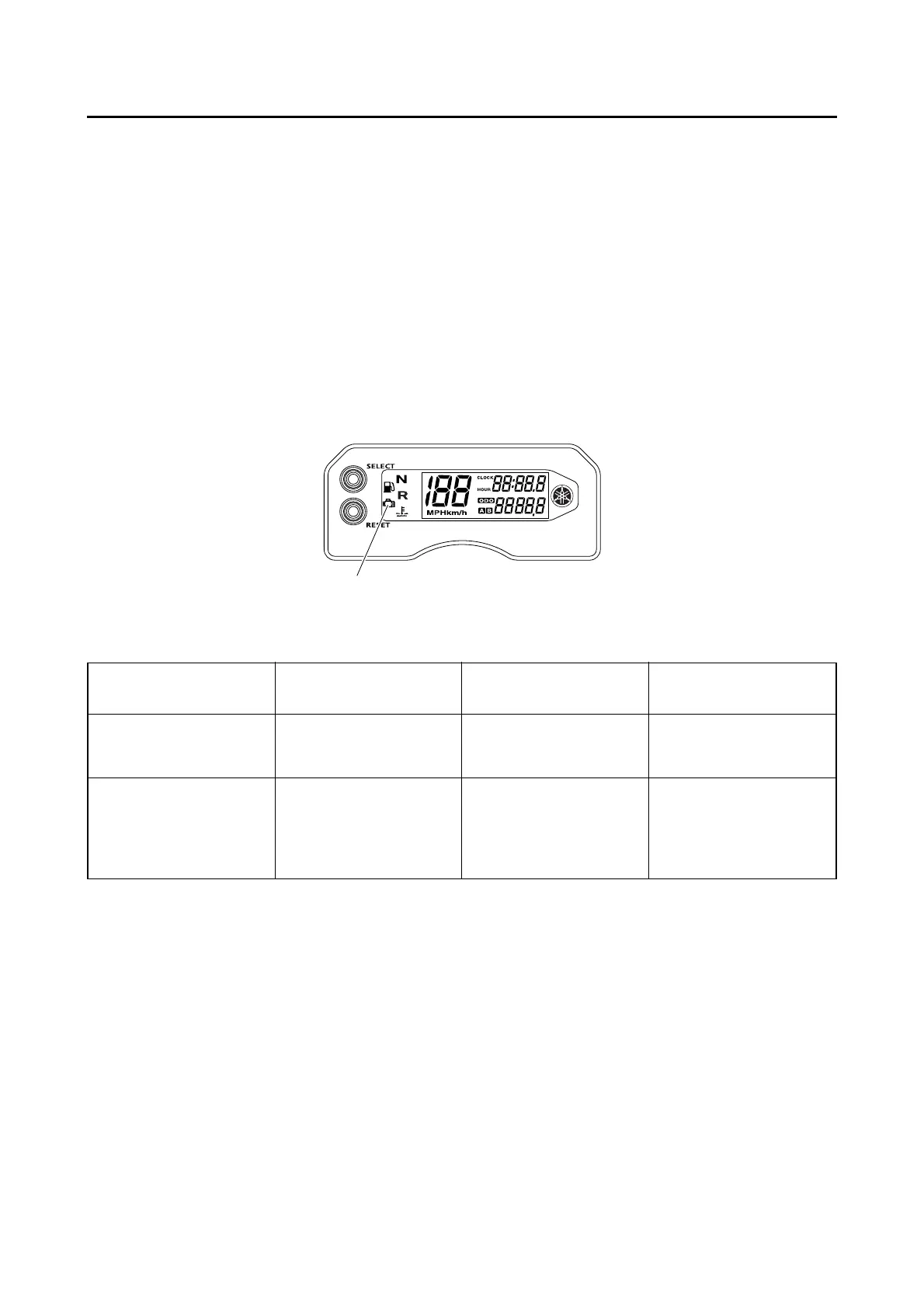

Engine trouble warning light indication and FI system operation
* The warning light flashes when any one of the conditions listed below is present and the start switch
is pushed:
EAS27380
SELF-DIAGNOSTIC FUNCTION TABLE
If the ECU detects an abnormal signal from a sensor while the vehicle is being driven, the ECU illumi-
nates the engine trouble warning light and provides the engine with alternate operating instructions that
are appropriate for the type of malfunction.
When an abnormal signal is received from a sensor, the ECU processes the specified values that are
programmed for each sensor in order to provide the engine with alternate operating instructions that
enable the engine to continue to operate or stop operating, depending on the conditions.
1
1. Engine trouble warning light
Warning light indica-
tion
ECU operation FI operation Vehicle operation
Flashing*
Warning provided
when unable to start
engine
Operation stopped Cannot be operated
Remains on Malfunction detected
Operated with substi-
tute characteristics in
accordance with the
description of the mal-
function
Can or cannot be oper-
ated depending on the
fault code
12: Crankshaft position sensor 41:
Lean angle sensor
(open or short-circuit)
30:
Lean angle sensor
(latch up detected)
50:
ECU internal malfunction
(faulty ECU memory)
