ENGINE
3-6
• Front fender
• Seat
Refer to “GENERAL CHASSIS” on page 4-1.
EAS20620

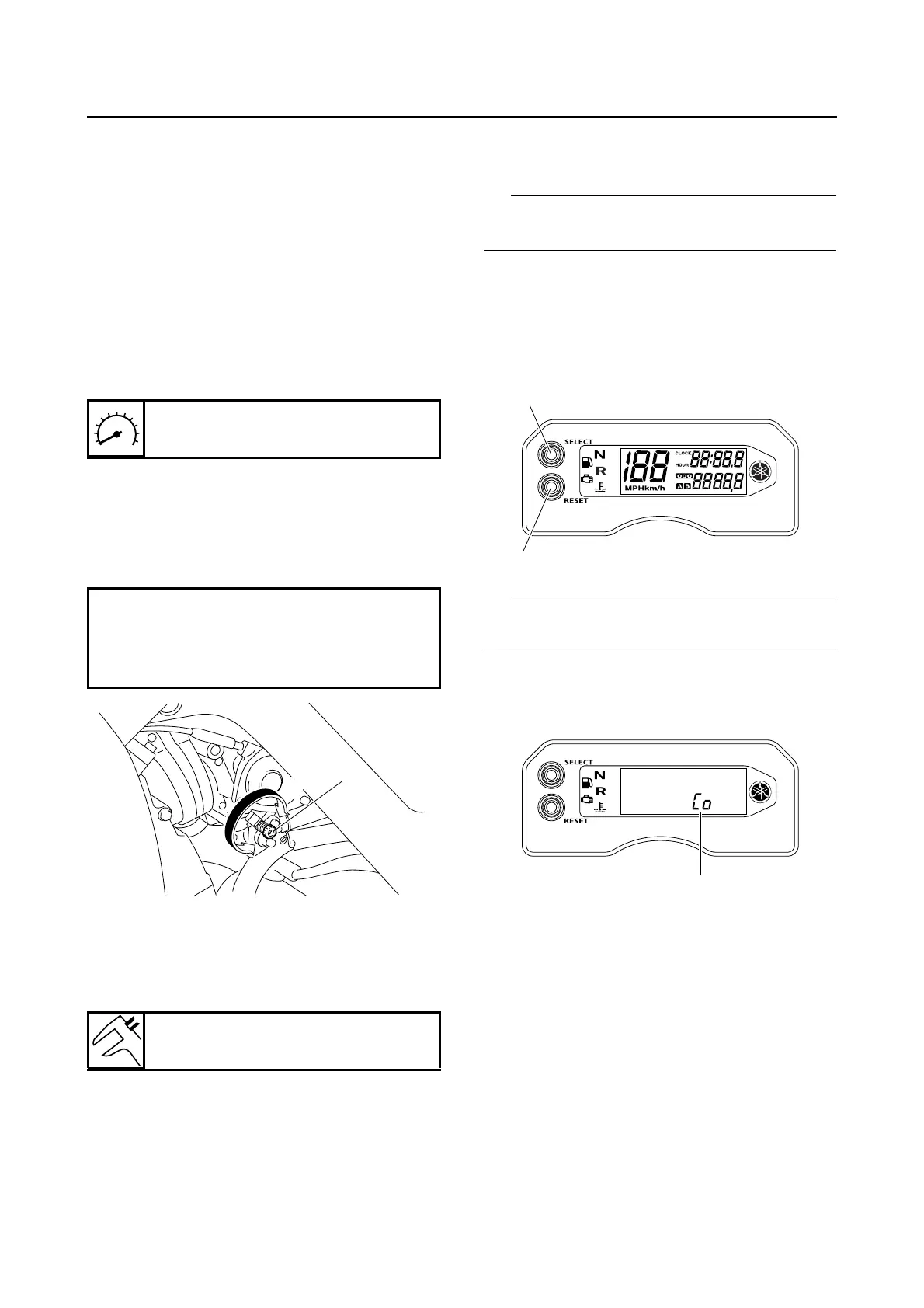

ADJUSTING THE ENGINE IDLING SPEED
1. Start the engine and let it warm up for several
minutes.
2. Install:
• Digital tachometer
(onto the spark plug lead)
3. Check:
• Engine idling speed
Out of specification → Adjust.
4. Adjust:
• Engine idling speed
▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼▼▼
a. Turn the throttle stop screw “1” in direction “a”
or “b” until the specified engine idling speed is
obtained.
▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲▲▲
5. Adjust:
• Throttle lever free play
Refer to “ADJUSTING THE THROTTLE LE-
VER FREE PLAY” on page 3-7.
EAS20600
ADJUSTING THE EXHAUST GAS VOLUME
(for Europe and Oceania)
IP
Be sure to set the CO density level to standard,
and then adjust the exhaust gas volume.
1. Turn the main switch to “OFF” and set the en-
gine stop switch to “ON”.
2. Simultaneously press and hold the “SE-
LECT” and “RESET” buttons, turn the main
switch to “ON”, and continue to press the but-
tons for 8 seconds or more.
IP
• All displays on the meter disappear.
•“dIAG” appears on the multifunction meter.
3. Press and release the “SELECT” button to
select the CO adjustment mode “Co” “1”.
4. After selecting “CO”, simultaneously press
and hold the “SELECT” and “RESET” buttons
for 2 seconds or more to activate the selec-
tion.
5. Check that “C1” “1” appears on the LCD
meter, and then simultaneously press and
hold the “SELECT” and “RESET” buttons for
2 seconds or more.
Engine idling speed
1500–1700 r/min
Direction “a”
Engine idling speed is increased.
Direction “b”
Engine idling speed is decreased.
Throttle lever free play
2.0–4.0 mm (0.08–0.16 in)
1
a
b
“SELECT”
“RESET”
1
To Next Page
