Yamaha Raptor 700R 2009 Service Manual

CHAIN DRIVE
4-63
EAS23400
CHAIN DRIVE

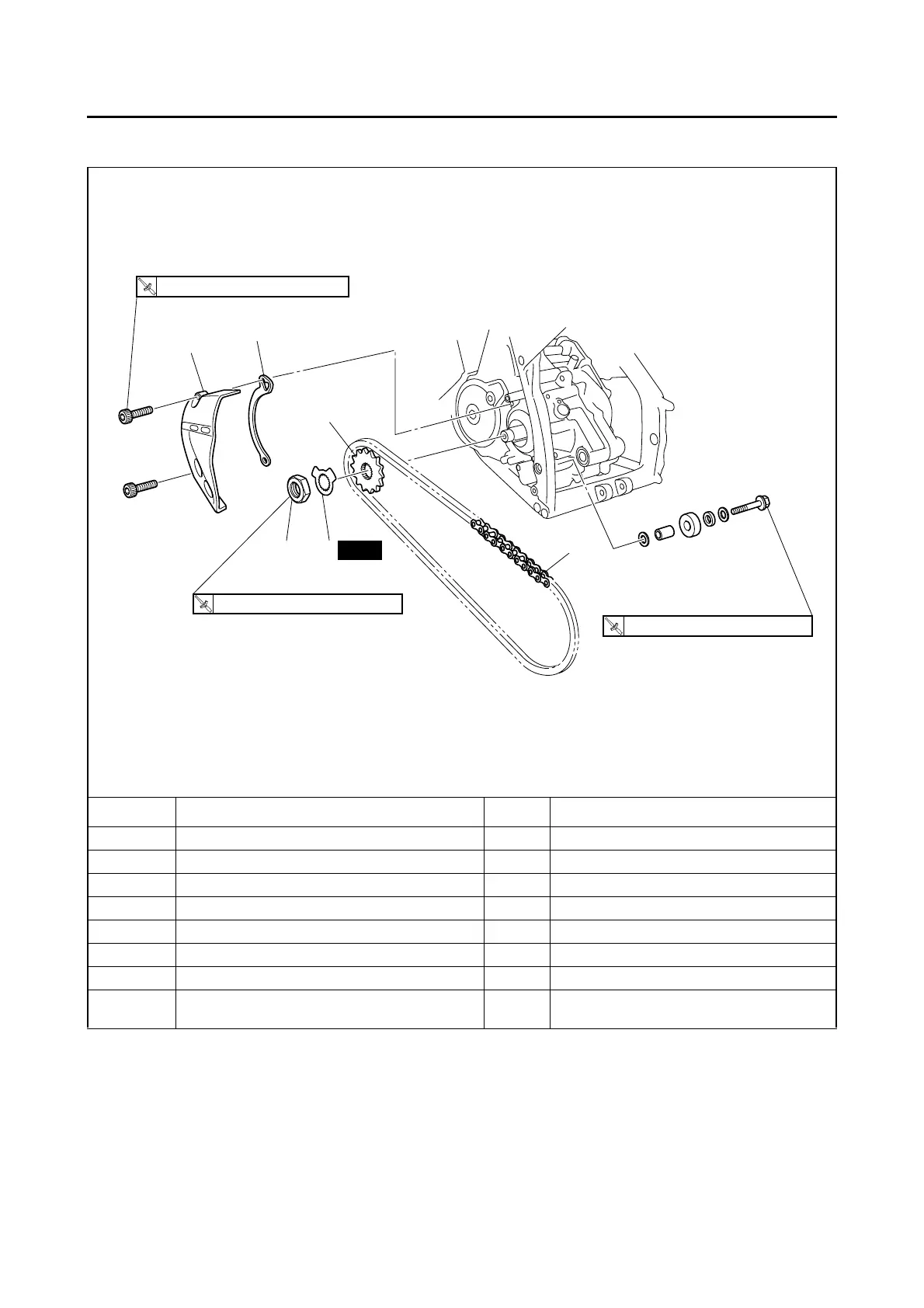

Removing the drive chain
Order Job/Parts to remove Q’ty Remarks
Swingarm Refer to “SWINGARM” on page 4-59.
1 Drive sprocket cover 1
2 Drive chain guide 2 1
3 Drive sprocket nut 1
4 Lock washer 1
5 Drive sprocket 1
6Drive chain 1
For installation, reverse the removal proce-
dure.
1
2
5
3
4
6
85 Nm (8.5 m
•
kg, 61 ft
•
Ib)
T
.R.
32 Nm (3.2 m
•
kg, 23 ft
•
Ib)
T
.R.
10 Nm (1.0 m
•
kg, 7.2 ft
•
Ib)
T
.R.
New
