Yamaha Raptor 700R 2009 Service Manual

CLUTCH
5-40
EAS25061
CLUTCH

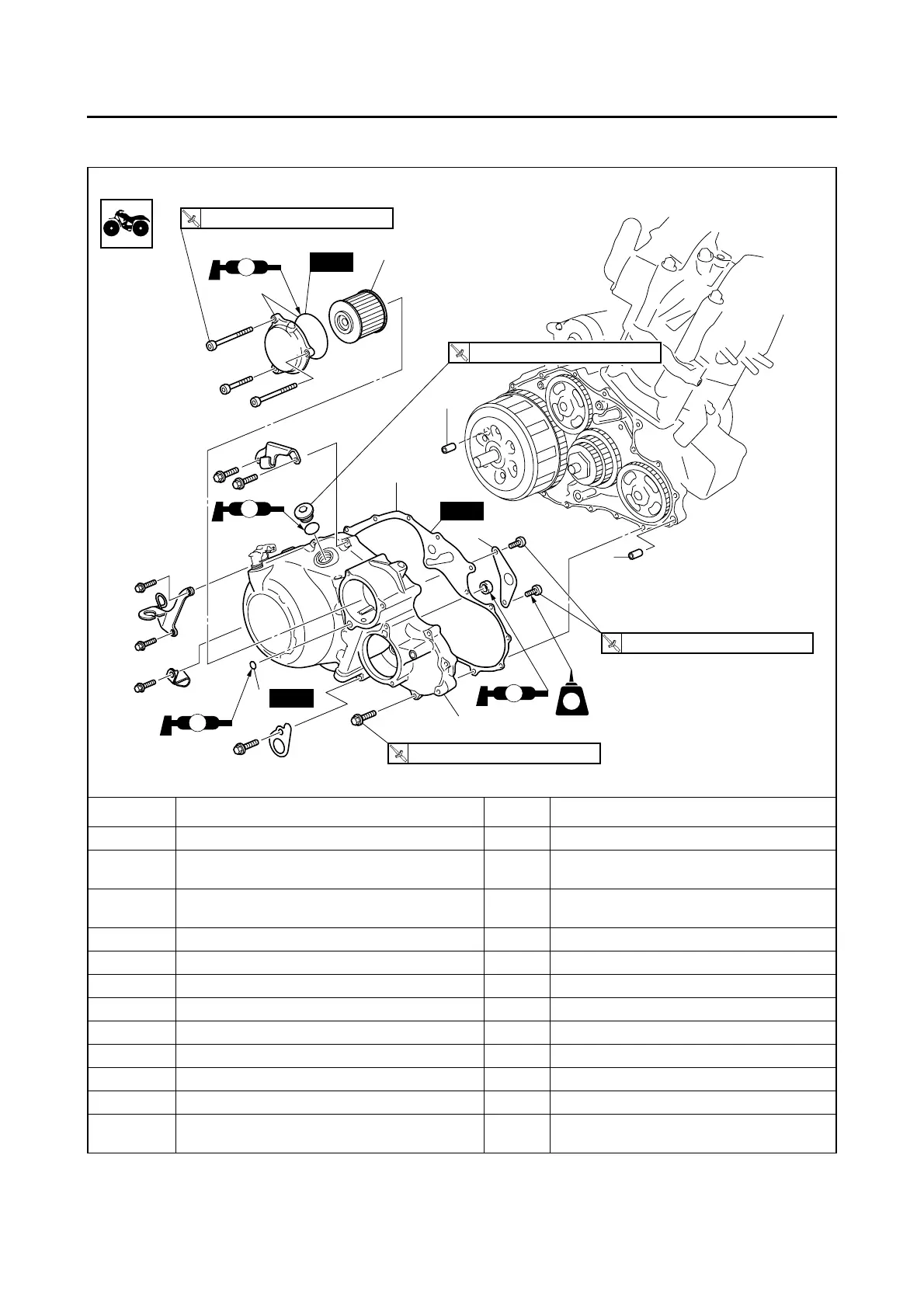

Removing the clutch cover
Order Job/Parts to remove Q’ty Remarks
Engine oil Drain.
Front fender
Refer to “GENERAL CHASSIS” on page
4-1.
Rear brake light switch/right foot rest/brake ped-
al/spring
Refer to “REAR BRAKE” on page 4-28.
Oil delivery pipe Refer to “CYLINDER HEAD” on page 5-8.
1 Oil filter cover/O-ring 1/1
2 Oil filter 1
3O-ring 1
4 Clutch cover 1
5 Clutch cover gasket 1
6 Dowel pin 2
7 Oil seal retainer 1
For installation, reverse the removal proce-
dure.
LS
LS
LS
LS
1
6
5
7
6
4
2
New
3
(14)
New
New
T
R
.
.
10 Nm (1.0 m
•
kg, 7.2 ft
•
Ib)
T
R
.
.
10 Nm (1.0 m
•
kg, 7.2 ft
•
Ib)
T
R
.
.
10 Nm (1.0 m
•
kg, 7.2 ft
•
Ib)
T
R
.
.
12 Nm (1.2 m
•
kg, 8.7 ft
•
Ib)
LT
