CHASSIS
3-26
d. Tighten the locknut.
e. Slide the boots to their original positions.
▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲▲▲
EAS21390

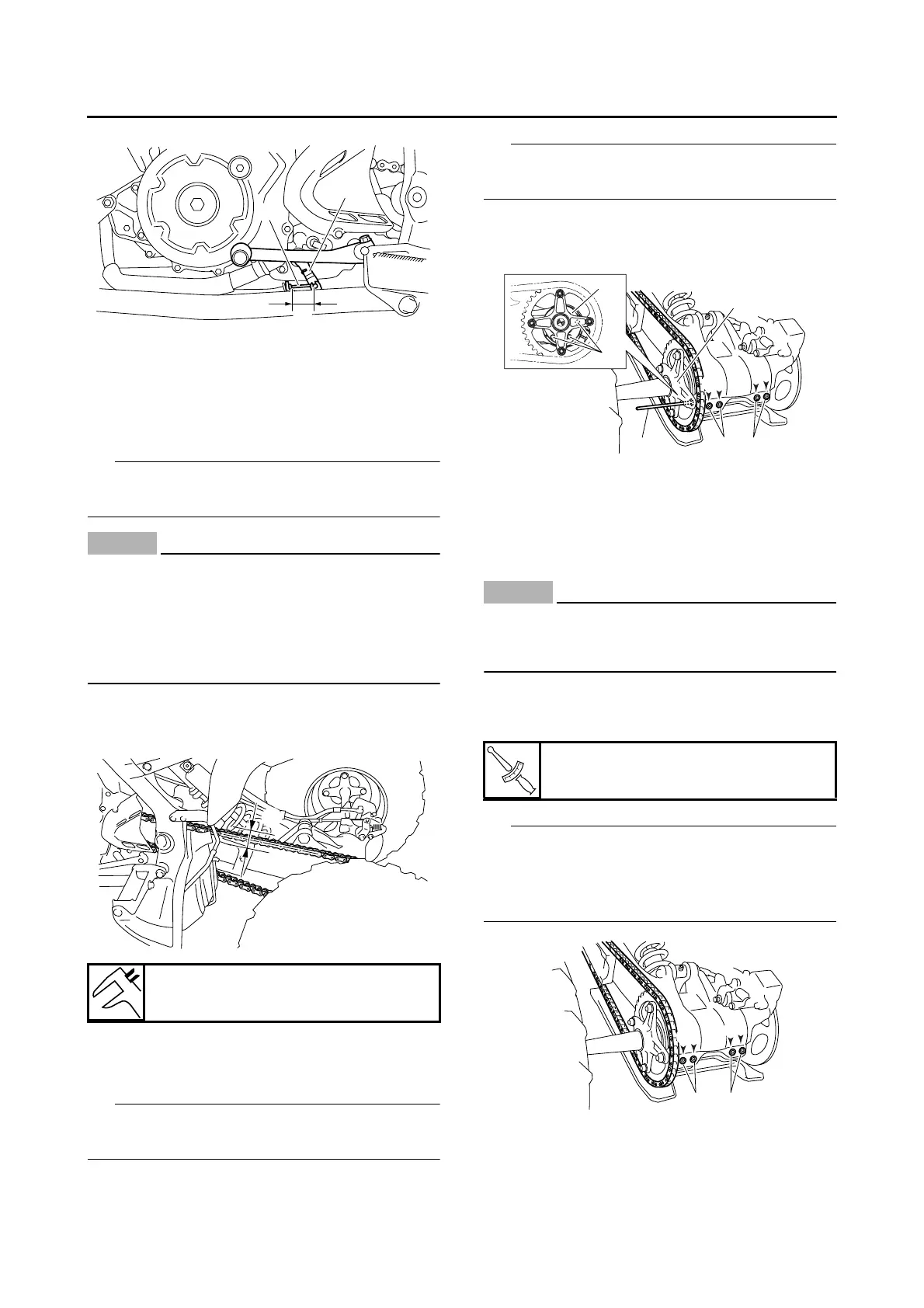

ADJUSTING THE DRIVE CHAIN SLACK
IP
Measure the drive chain slack halfway between
the drive axle and the rear axle.
NOTICE
ECA13550
A drive chain that is too tight will overload
the engine and other vital parts, and one that
is too loose can skip and damage the swing-
arm or cause an accident. Therefore, keep
the drive chain slack within the specified lim-
its.
1. Check:
• Drive chain slack “a”
Out of specification → Adjust.
2. Adjust:
• Drive chain slack
▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼▼▼
IP
The drive chain slack is adjusted by the rotation
of the rear axle hub.
a. Loosen the rear axle pinch bolts “1”.
IP
Loosen the rear axle pinch bolts in the proper se-
quence as shown.
b. Insert an appropriate shaft “2” in the hole “4”
of rear axle hub “3” so that the sprocket
bracket “5” does not move.
c. Shift the transmission into the neutral posi-
tion.
d. To loosen the drive chain, push the vehicle
forward, and to tighten the drive chain, pull
the vehicle backward.
NOTICE
ECA1S3L001
Excessive chain slack will overload the en-
gine and other vital parts; keep the slack
within the specified limits.
e. If the chain slack cannot be adjusted, replace
the sprockets and drive chain as a set.
f. Tighten the rear axle pinch bolts “1”.
IP
• Tighten the rear axle pinch bolts “1” in the prop-
er sequence as shown.
• The chain should be cleaned and lubricated af-
ter every use of the vehicle.
▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲▲▲
Drive chain slack
25.0–35.0 mm (0.98–1.38 in)
a
5
6
a
T
R
.
.
Rear axle pinch bolt
21 Nm (2.1 m·kg, 15 ft·lb)
1
2
3
4
1
5
1
3
4
2
11
4
2
1
3
