Yamaha Raptor 700R 2009 Service Manual

ENGINE
3-12
EAS20800

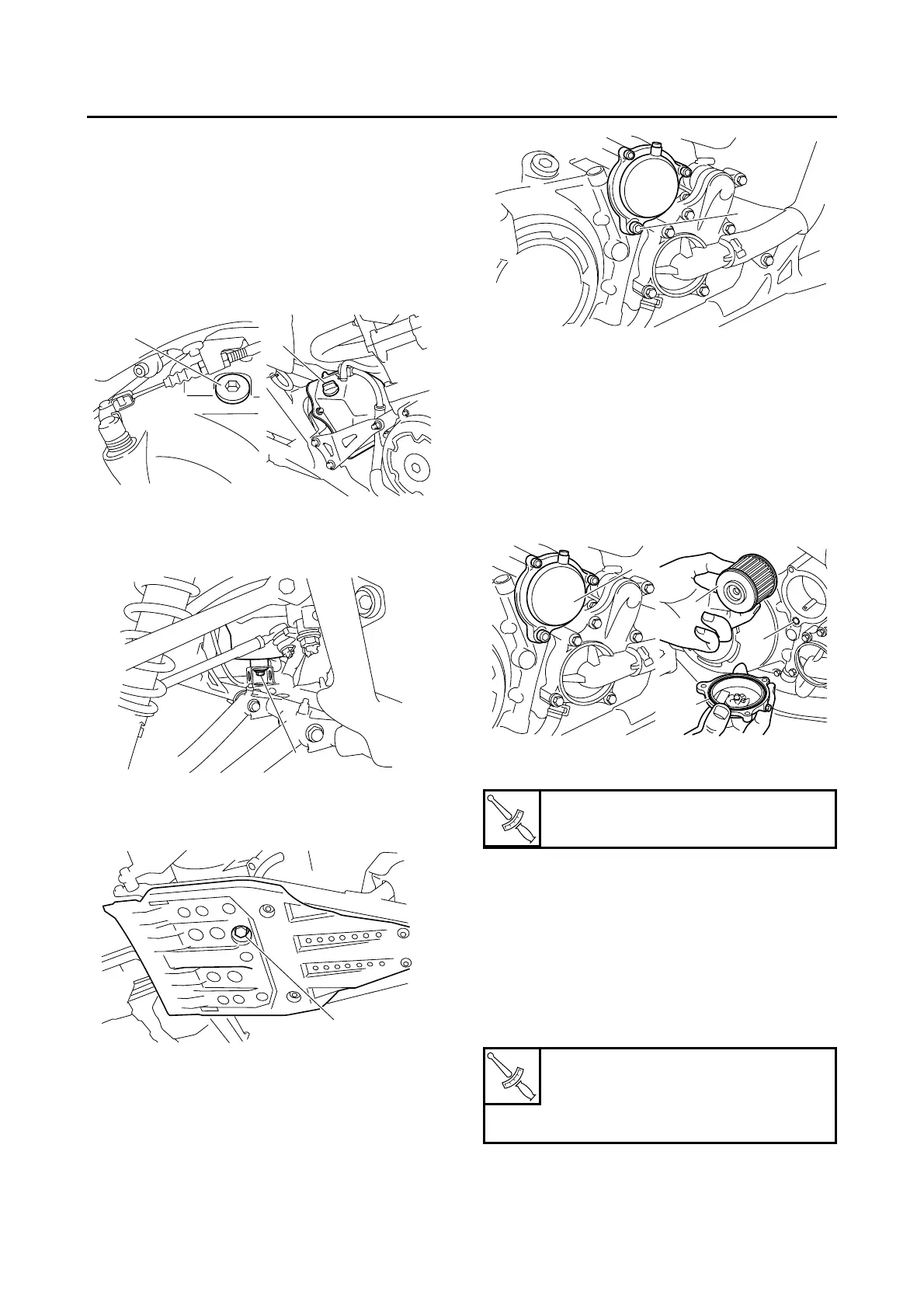

CHANGING THE ENGINE OIL
1. Start the engine, warm it up for several min-
utes, and then turn it off.
2. Place a container under the engine oil drain
bolt.
3. Remove:
• Engine oil filler bolt “1”
• Dipstick “2”
4. Remove:
• Engine oil drain bolt (oil tank) “1”
(along with the gasket)
5. Remove:
• Engine oil drain bolt (crankcase) “1”
(along with the gasket)
6. Remove:
• Oil filter element drain bolt “1”
7. Drain:
• Engine oil
(completely from the oil tank and crankcase)
8. If the oil filter element is also to be replaced,
perform the following procedure.
▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼▼▼
a. Remove the oil filter element cover “1” and oil
filter element “2”.
b. Check the O-rings “3” and replace them if
they are cracked or damaged.
c. Install the new oil filter element and the oil fil-
ter element cover.
▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲▲▲
9. Check:
• Engine oil drain bolt gasket
Damage → Replace.
10.Install:
• Engine oil drain bolt (crankcase)
(along with the gasket)
• Engine oil drain bolt (oil tank)
(along with the gasket)
• Oil filter element drain bolt
(along with the gasket)
1
2
1
1
T
R
.
.
Oil filter element cover bolt
10 Nm (1.0 m·kg, 7.2 ft·lb)
T
R
.
.
Engine oil drain bolt (crankcase)
23 Nm (2.3 m·kg, 17 ft·lb)
Engine oil drain bolt (oil tank)
19 Nm (1.9 m·kg, 13 ft·lb)
1
2
3
3
1
