Yamaha Raptor 700R 2009 Service Manual

REAR AXLE AND REAR AXLE HUB
4-12
EAS29470

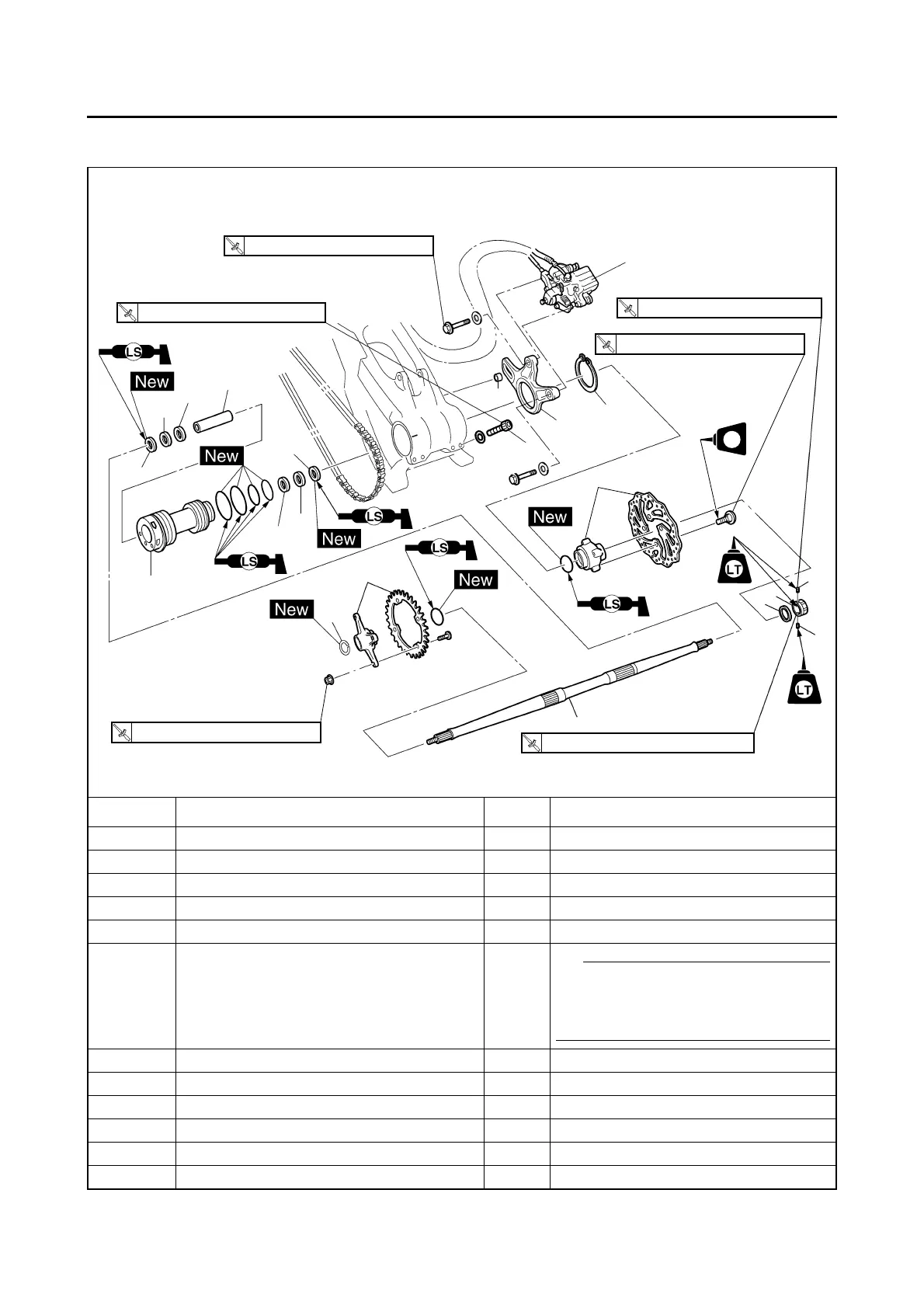

REAR AXLE AND REAR AXLE HUB
Removing the rear axle and rear axle hub
Order Job/Parts to remove Q’ty Remarks
Rear wheels/rear wheel hubs Refer to “REAR WHEELS” on page 4-9.
1 Set bolt 2
2 Rear axle ring nut 1
3 Conical spring washer 1
4 Rear axle pinch bolt 4
5 Rear brake caliper 1
T
IP
Do not apply the brake pedal and do not use
the parking brake when the brake caliper is
off of the brake disc as the brake pads will
be forced shut.
6 Brake disc/brake disc bracket 1/1
7 Rear axle 1
8 Circlip 1
9 Driven sprocket/sprocket bracket 1/1
10 Circlip 1
11 Brake caliper bracket 1
16
16
1
1
2
3
7
5
6
4
(4)
(4)
11
10
12
17
15
15
14
14
13
8
9
LT
LT
7 Nm (0.7 m
•
kg, 5.1 ft
•
Ib)
T
.R.
33 Nm (3.3 m
•
kg, 24 ft
•
Ib)
T
.R.
240 Nm (24.0 m
•
kg, 170 ft
•
lb)
T
.R.
34 Nm (3.4 m
•
kg, 24 ft
•
Ib)
T
.R.
21 Nm (2.1 m
•
kg, 15 ft
•
Ib)
T
.R.
72 Nm (7.2 m
•
kg, 52 ft
•
lb)
T
.R.
