REAR SHOCK ABSORBER ASSEMBLY
4-58
• Gas cylinder
Damage/gas leaks → Replace the rear shock
absorber assembly.
EAS1S3L021

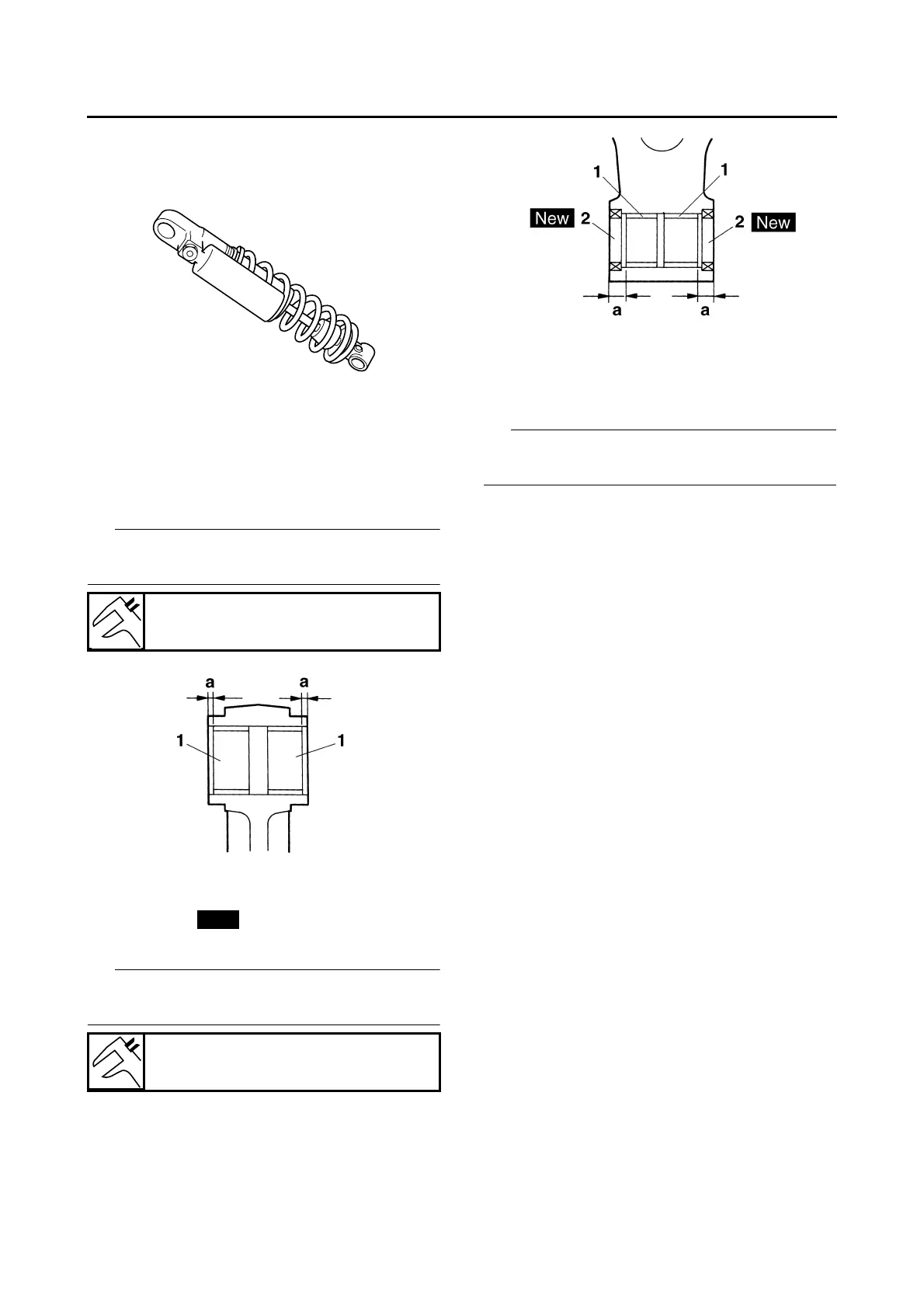

INSTALLING THE REAR SHOCK
ABSORBER ASSEMBLY
1. Install:
• Bushing “1”
(to connecting arm)
IP
Apply lithium-soap-based grease on the bush-
ings when installing.
2. Install:
• Bushing “1”
• Oil seal “2”
(to relay arm)
IP
Apply lithium-soap-based grease on the bush-
ings when installing.
3. Install:
• Connecting arm
• Relay arm
• Rear shock absorber
IP
When installing the rear shock absorber, lift up
the swingarm.
Installed depth of bushing “a”
1.0 mm (0.04 in)
Installed depth of bushing “a”
6.5 mm (0.26 in)
New
To Next Page
