ELECTRICAL COMPONENTS
8-72
T
IP

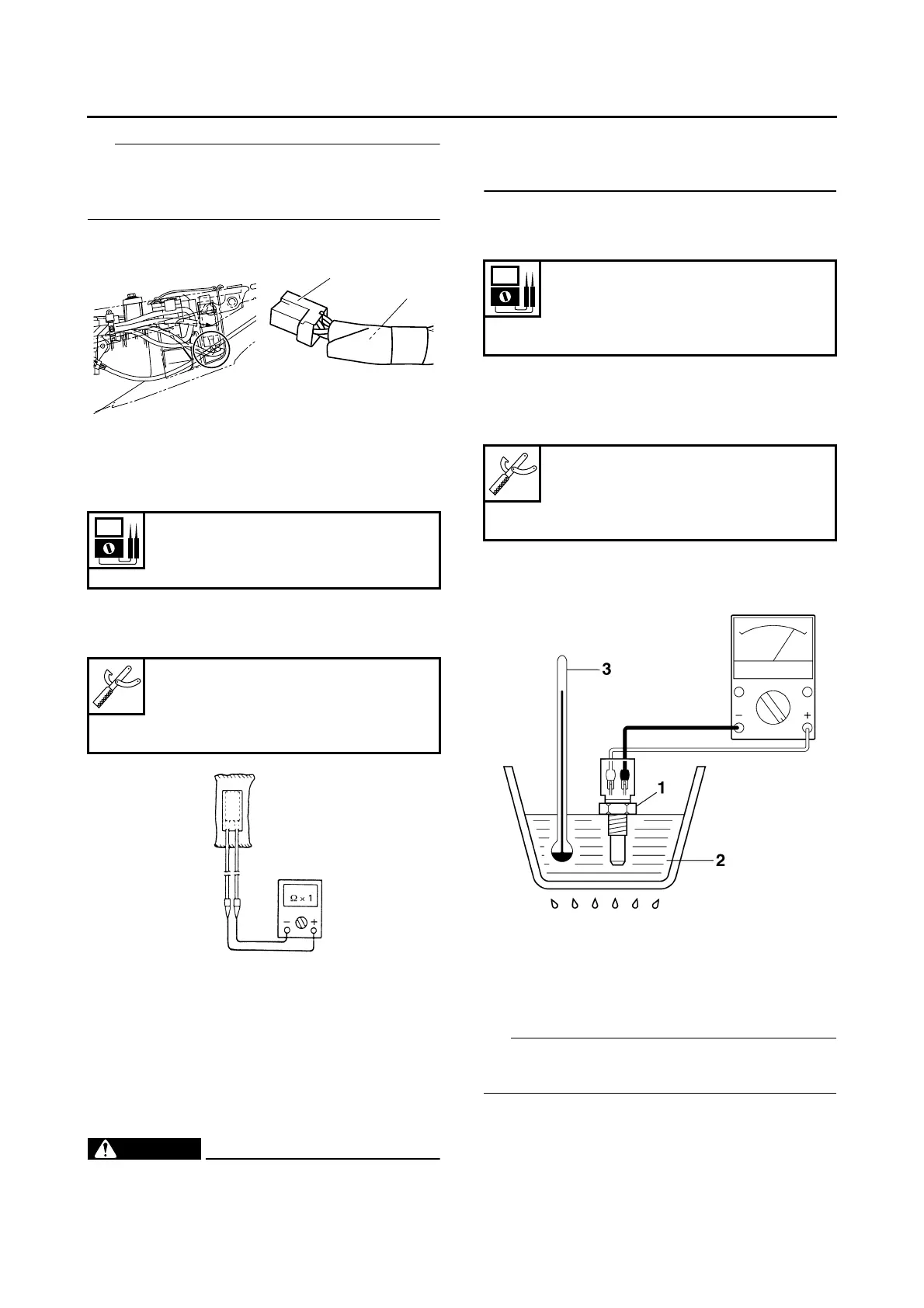

The radiator fan motor circuit breaker “1” is at-
tached to the wire harness with white tape near
the headlight relay “2”.
2. Check:
• Radiator fan motor circuit breaker resistance
Out of specification → Replace the radiator
fan motor circuit breaker.
▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼▼▼
a. Connect the pocket tester (Ω × 1) to the radi-
ator fan motor circuit breaker as shown.
b. Measure the radiator fan motor circuit break-
er resistance.
▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲▲▲
EAS28260
CHECKING THE COOLANT TEMPERATURE
SENSOR
1. Remove:
• Coolant temperature sensor
WARNING
EWA14130
• Handle the coolant temperature sensor
with special care.
• Never subject the coolant temperature sen-
sor to strong shocks. If the coolant temper-
ature sensor is dropped, replace it.
2. Check:
• Coolant temperature sensor resistance
Out of specification → Replace.
▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼▼▼
a. Connect the pocket tester (Ω × 100) to the
coolant temperature sensor terminals as
shown.
b. Immerse the coolant temperature sensor “1”
in a container filled with coolant “2”.
T
IP
Make sure the coolant temperature sensor ter-
minals do not get wet.
c. Place a thermometer “3” in the coolant.
d. Slowly heat the coolant, and then let it cool
down to the specified temperature.
Radiator fan motor circuit break-
er resistance
Zero Ω at 20 °C (68 °F)
Pocket tester
90890-03112
Analog pocket tester
YU-03112-C
2
1
Coolant temperature sensor re-
sistance
2.32–2.59 kΩ at 20 °C (68 °F)
0.310–0.326 kΩ at 80 °C (176 °F)
Pocket tester
90890-03112
Analog pocket tester
YU-03112-C
