Yamaha Raptor 700R 2009 Service Manual

WATER PUMP
6-5
EAS26500

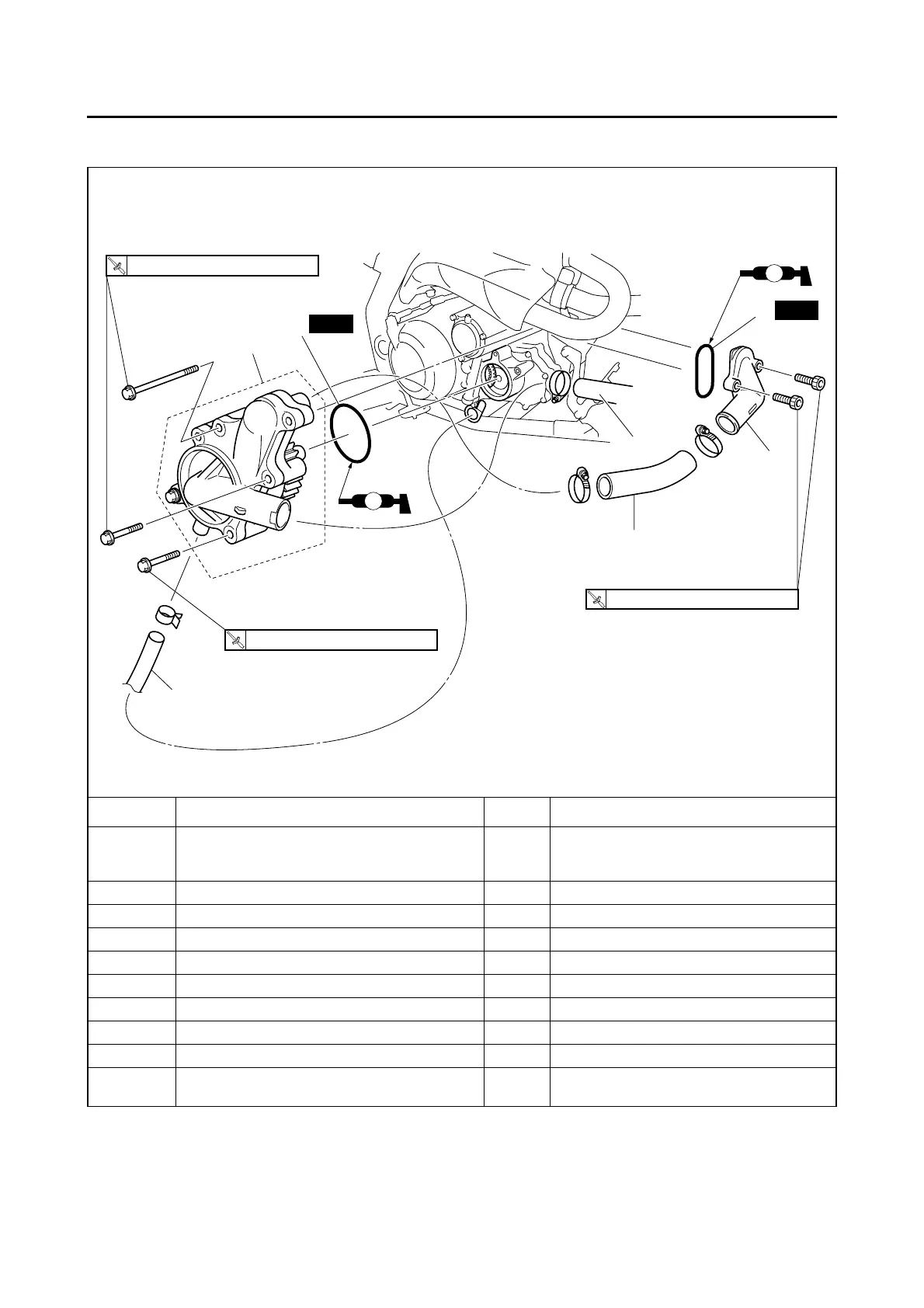

WATER PUMP
Removing the water pump
Order Job/Parts to remove Q’ty Remarks
It is not necessary to remove the water
pump unless the coolant level is extremely
low or the coolant contains engine oil.
Coolant Drain.
1 Radiator outlet hose 1 Disconnect.
2 Water pump outlet hose 1
3 Water pump 1
4O-ring 1
5 Water pump breather hose 1
6 Water jacket inlet housing 1
7O-ring 1
For installation, reverse the removal proce-
dure.
LS
T
R
.
.
10 Nm (1.0 m
•
kg, 7.2 ft
•
Ib)
T
R
.
.
10 Nm (1.0 m
•
kg, 7.2 ft
•
Ib)
T
R
.
.
10 Nm (1.0 m
•
kg, 7.2 ft
•
Ib)
New
1
2
5
7
6
New
4
3
LS
