10.3.2.3 Function block
SCSWI
BLOCK
PSTO
L_SEL
L_OPEN
L_CLOSE
AU_OPEN
AU_CLOSE
BL_CMD
RES_EXT
SY_INPRO
SYNC_OK
EN_OPEN
EN_CLOSE
XPOS*
EXE_OP
EXE_CL
SELECTED
START_SY
POSITION
OPENPOS
CLOSEPOS
CMD_BLK
L_CAUSE
POS_INTR
XOUT
IEC09000087_1_en.vsd
IEC09000087 V1 EN

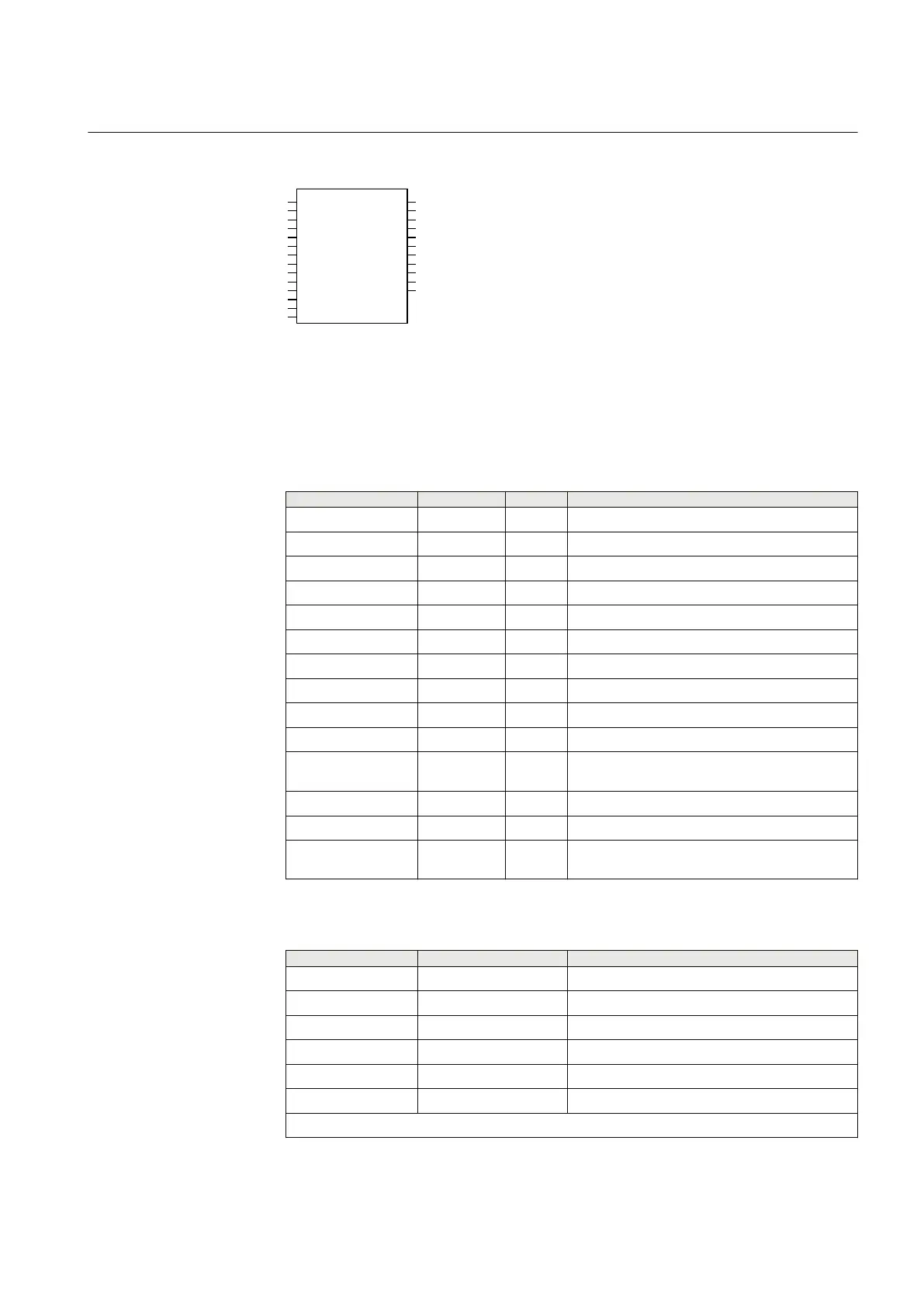

Figure 109: SCSWI function block
10.3.2.4 Signals
Table 176: SCSWI Input signals
Name Type Default Description
BLOCK BOOLEAN 0 Block of function
PSTO INTEGER 2 Operator place selection
L_SEL BOOLEAN 0 Select signal from local panel
L_OPEN BOOLEAN 0 Open signal from local panel
L_CLOSE BOOLEAN 0 Close signal from local panel
AU_OPEN BOOLEAN 0 Used for local automation function
AU_CLOSE BOOLEAN 0 Used for local automation function
BL_CMD BOOLEAN 0 Steady signal for block of the command
RES_EXT BOOLEAN 0 Reservation is made externally
SY_INPRO BOOLEAN 0 Synchronizing function in progress
SYNC_OK BOOLEAN 0 Closing is permitted at set to true by the
synchrocheck
EN_OPEN BOOLEAN 0 Enables open operation
EN_CLOSE BOOLEAN 0 Enables close operation
XPOS GROUP
SIGNAL
- Group signal from XCBR/XSWI
Table 177: SCSWI Output signals
Name
Type Description
EXE_OP BOOLEAN Execute command for open direction
EXE_CL BOOLEAN Execute command for close direction
SELECTED BOOLEAN Select conditions are fulfilled
START_SY BOOLEAN Starts the synchronizing function
POSITION INTEGER Position indication
OPENPOS BOOLEAN Open position indication
Table continues on next page
1MRK 511 287-UEN A Section 10
Control
237
Technical manual
