11.3.1.8 Timer function block TIMERSET
Identification
Function description
IEC 61850
identification
IEC 60617
identification
ANSI/IEEE C37.2
device number
Timer function block TIMERSET - -
Functionality
The function block TIMERSET has pick-up and drop-out delayed outputs related to
the input signal. The timer has a settable time delay (t).
On
Off
t
tdelay
tdelay
en08000289-2-en.vsd
Input
IEC08000289 V1 EN

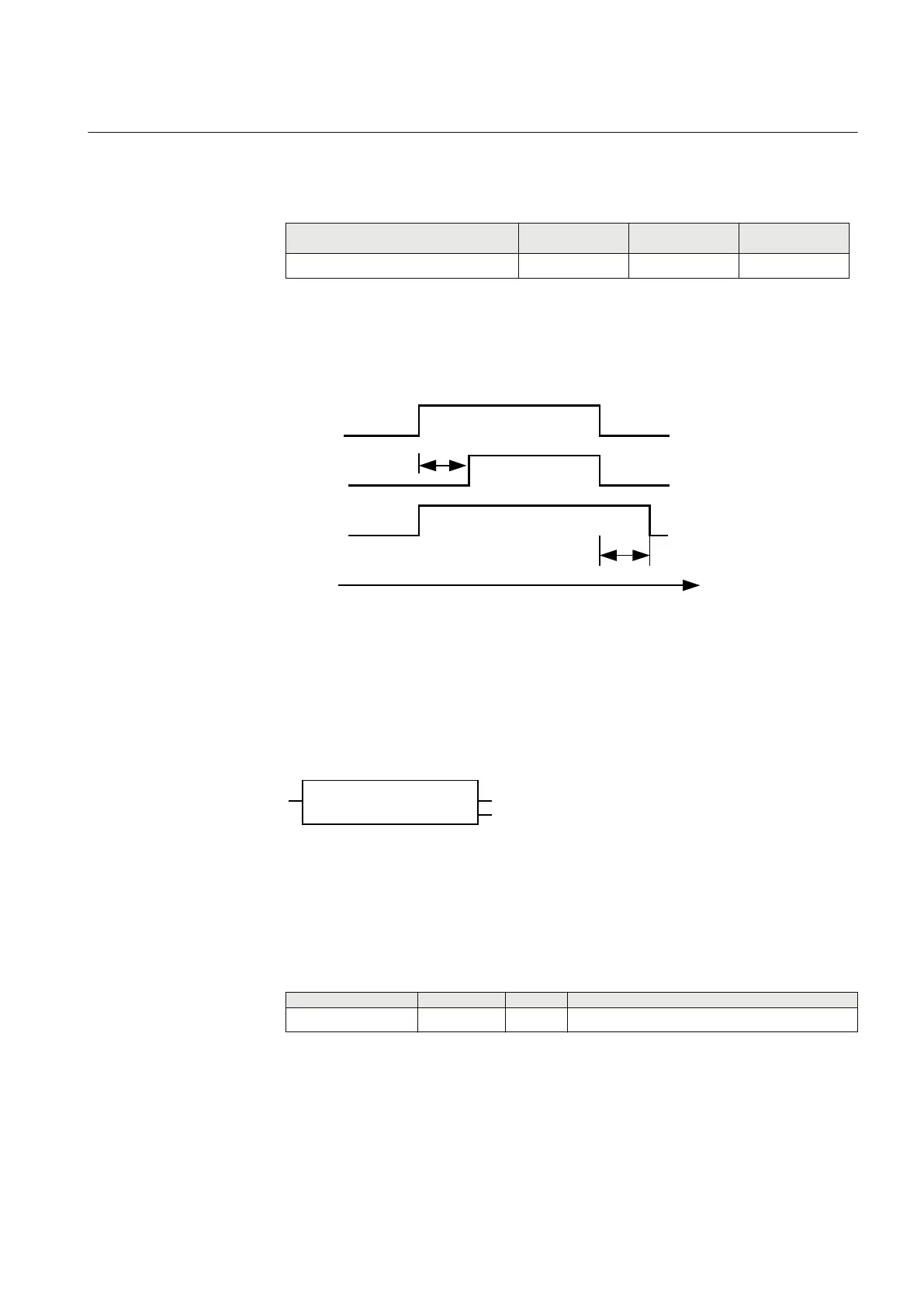

Figure 173: TIMERSET Status diagram
Function block
TIMERSET
INPUT ON
OFF
IEC09000290-1-en.vsd
IEC09000290 V1 EN
Figure 174: TIMERSET function block
Signals
Table 278: TIMERSET Input signals
Name
Type Default Description
INPUT BOOLEAN 0 Input signal
1MRK 511 287-UEN A Section 11
Logic
355
Technical manual
