ABB REC650 User Manual

AND
BLOCK
TRIN
Operation Mode = On
OR
t
tTripMin
TRIP
en05000789.vsd
Program = 3Ph
IEC05000789 V1 EN

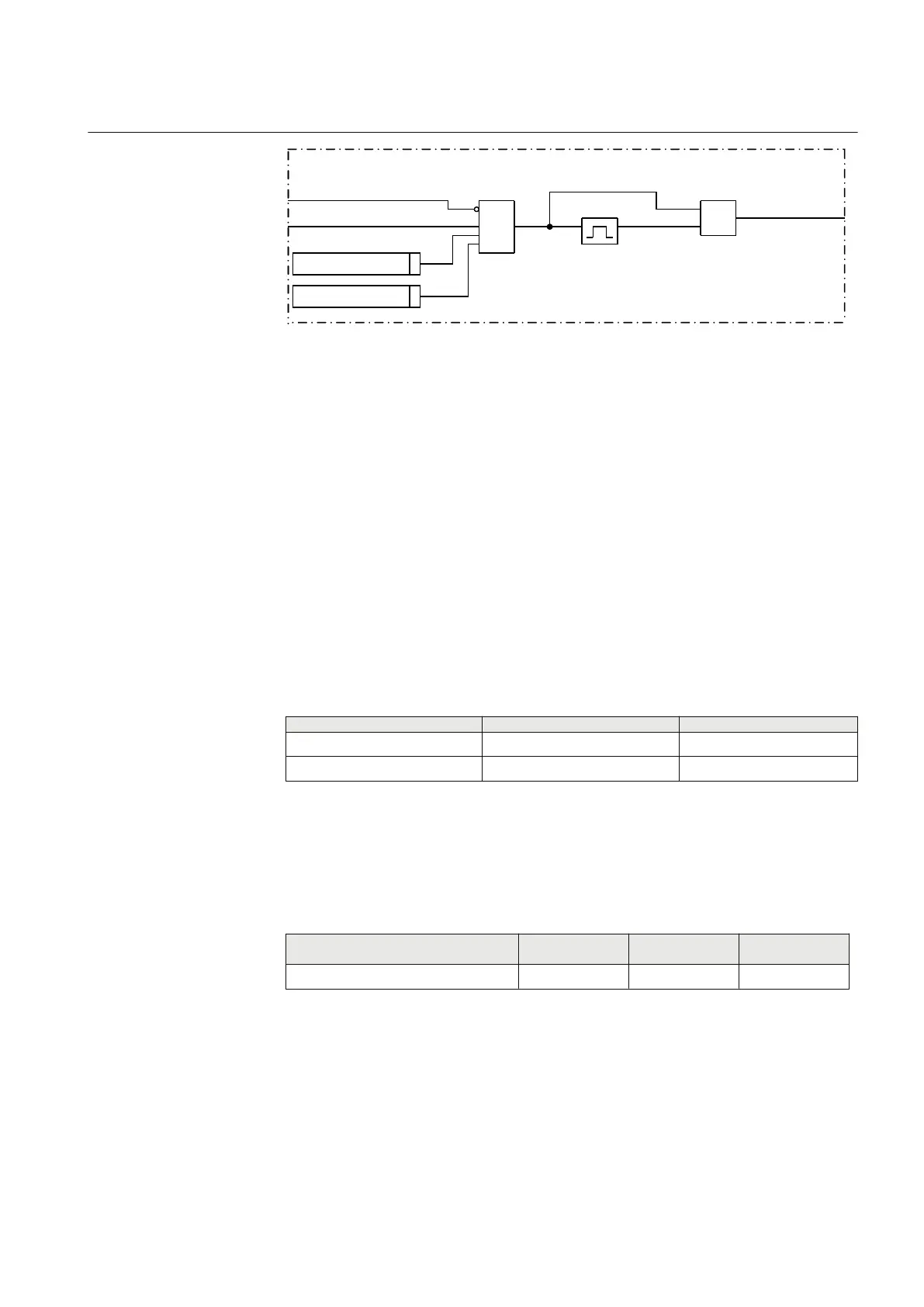

Figure 164: Simplified logic diagram for three phase trip
In multi-breaker arrangements, one SMPPTRC function block is used for each
breaker.
Lockout can be activated either by activating the input (SETLKOUT) or
automatically from trip input by setting AutoLock to On. A Lockout condition will be
indicated by activation of the output (CLLKOUT). If lockout has been activated it can
be reset by activating the input (RSTLKOUT) or via the HMI.
If TripLockout is set to On an active Lockout will result in a three-phase trip output.
In this way if both AutoLock and TripLockout are set to On the trip will always be
three-phase and sealed in.
11.1.7 Technical data
Table 260: SMPPTRC technical data
Function
Range or value Accuracy
Trip action 3-ph -
Timers (0.000-60.000) s ± 0.5% ± 10 ms
11.2 Trip matrix logic TMAGGIO
11.2.1 Identification
Function description
IEC 61850
identification
IEC 60617
identification
ANSI/IEEE C37.2
device number
Trip matrix logic TMAGGIO - -
11.2.2 Functionality
The 12 Trip matrix logic TMAGGIO function each with 32 inputs are used to route
trip signals and other logical output signals to the tripping logics SMPPTRC and
SPTPTRC or to different output contacts on the IED.
1MRK 511 287-UEN A Section 11
Logic
343
Technical manual
