I103USRDEF can be used, for example in mapping the INF numbers not supported
directly by specific function blocks, like: INF17, INF18, INF20 or INF35. After
connecting the appropriate signals to the I103USRDEF inputs, the user must also set
the InfNo_x values in the settings.
GUID-391D4145-B7E6-4174-B3F7-753ADDA4D06F V1 EN

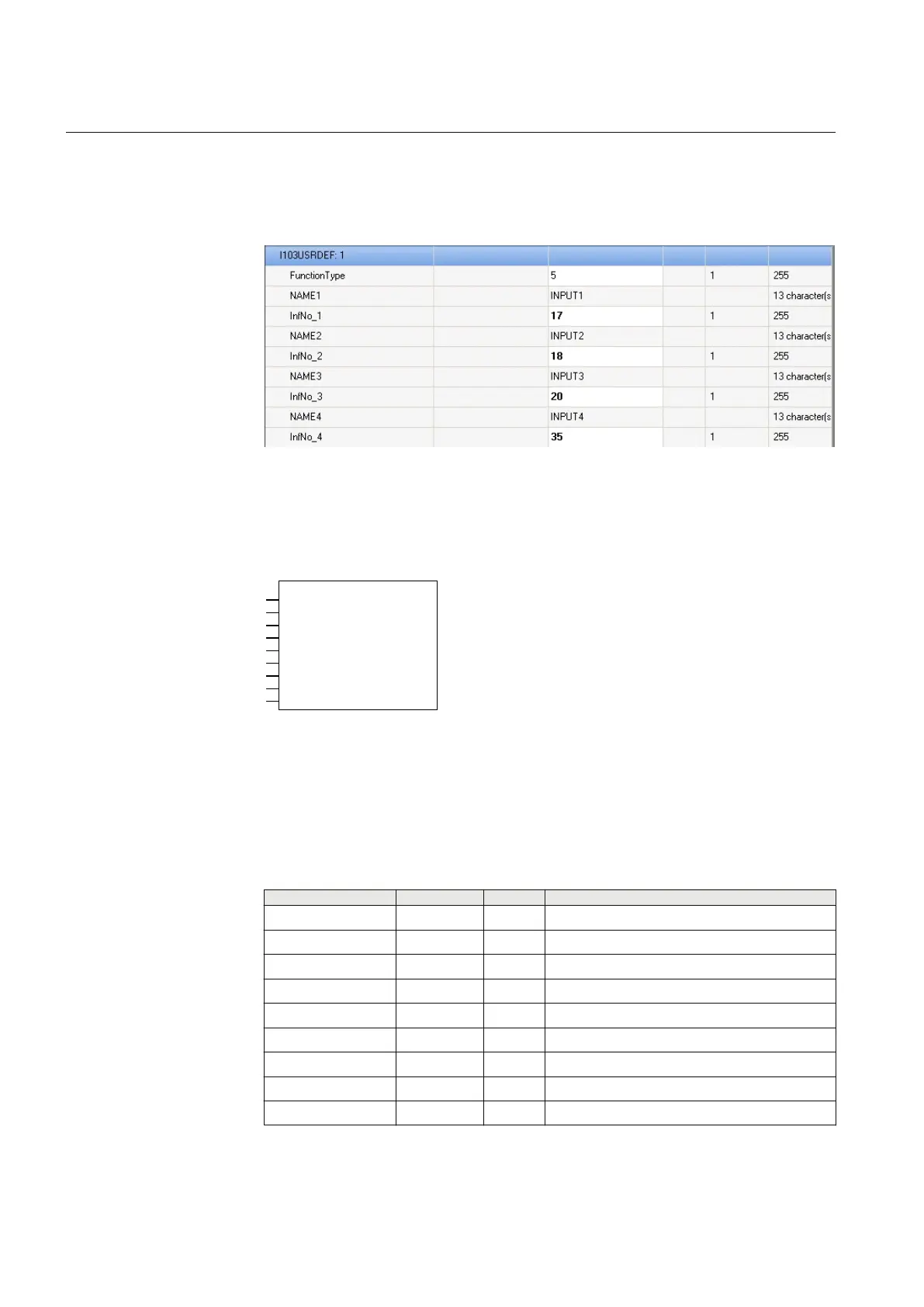

Figure 249: IEC 60870-5-103I103USRDEF:1
12.26.2 Function block
IEC10000294-1-en.vsd
I103USRDEF
BLOCK
^INPUT1
^INPUT2
^INPUT3
^INPUT4
^INPUT5
^INPUT6
^INPUT7
^INPUT8
IEC10000294 V1 EN
Figure 250: I103USRDEF function block
12.26.3 Signals
Table 446: I103USRDEF Input signals
Name
Type Default Description
BLOCK BOOLEAN 0 Block of status reporting
INPUT1 BOOLEAN 0 Binary signal Input 1
INPUT2 BOOLEAN 0 Binary signal input 2
INPUT3 BOOLEAN 0 Binary signal input 3
INPUT4 BOOLEAN 0 Binary signal input 4
INPUT5 BOOLEAN 0 Binary signal input 5
INPUT6 BOOLEAN 0 Binary signal input 6
INPUT7 BOOLEAN 0 Binary signal input 7
INPUT8 BOOLEAN 0 Binary signal input 8
Section 12 1MRK 511 287-UEN A
Monitoring
512
Technical manual
