OPEN_EN
POSOPEN
POSCLOSE
1
EN_OPEN
EN_CLOSECLOSE_EN
SCILO
=1
&
>1
>1
&
&
&
en04000525.vsd
IEC04000525 V1 EN

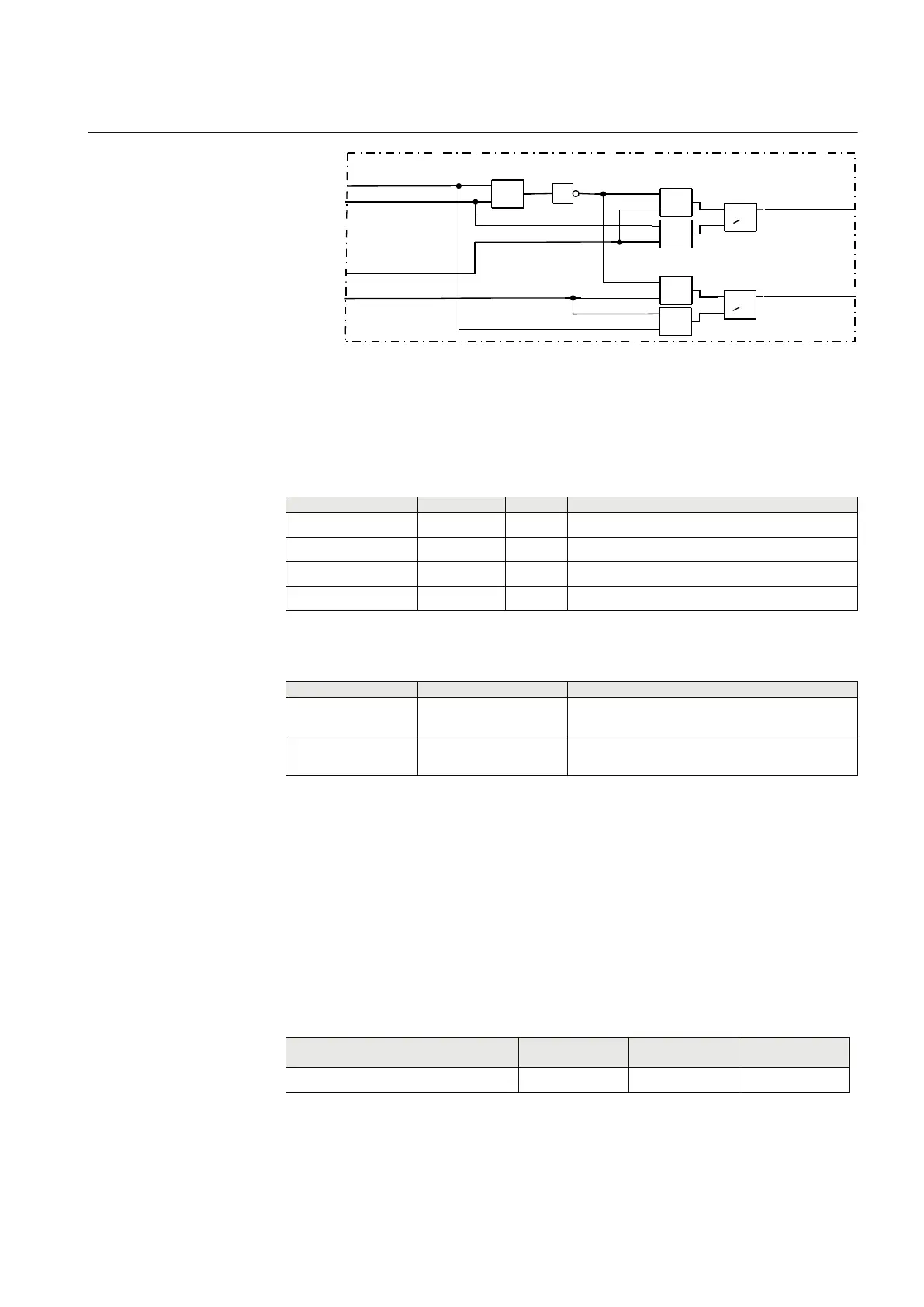

Figure 130: SCILO function logic diagram
10.4.2.5 Signals
Table 199: SCILO Input signals
Name Type Default Description
POSOPEN BOOLEAN 0 Open position of switch device
POSCLOSE BOOLEAN 0 Closed position of switch device
OPEN_EN BOOLEAN 0 Open operation from interlocking logic is enabled
CLOSE_EN BOOLEAN 0 Close operation from interlocking logic is enabled
Table 200: SCILO Output signals
Name
Type Description
EN_OPEN BOOLEAN Open operation at closed or intermediate or bad
position is enabled
EN_CLOSE BOOLEAN Close operation at open or intermediate or bad
position is enabled
10.4.2.6 Settings
The function does not have any settings available in Local HMI or Protection and
Control IED Manager (PCM600).
10.4.3 Interlocking for busbar earthing switch BB_ES
10.4.3.1 Identification
Function description
IEC 61850
identification
IEC 60617
identification
ANSI/IEEE C37.2
device number
Interlocking for busbar earthing switch BB_ES - 3
1MRK 511 287-UEN A Section 10
Control
265
Technical manual
