4.2.2 Installation
4.2.2.1 Installation site selection
Take note of the maximum admissible cable length between units and the control as well as between the units themselves,
as shown in the following table:
Cable section 0.3 mm
2
≥ 0.75 mm
2
Cable length 30 m 500 m

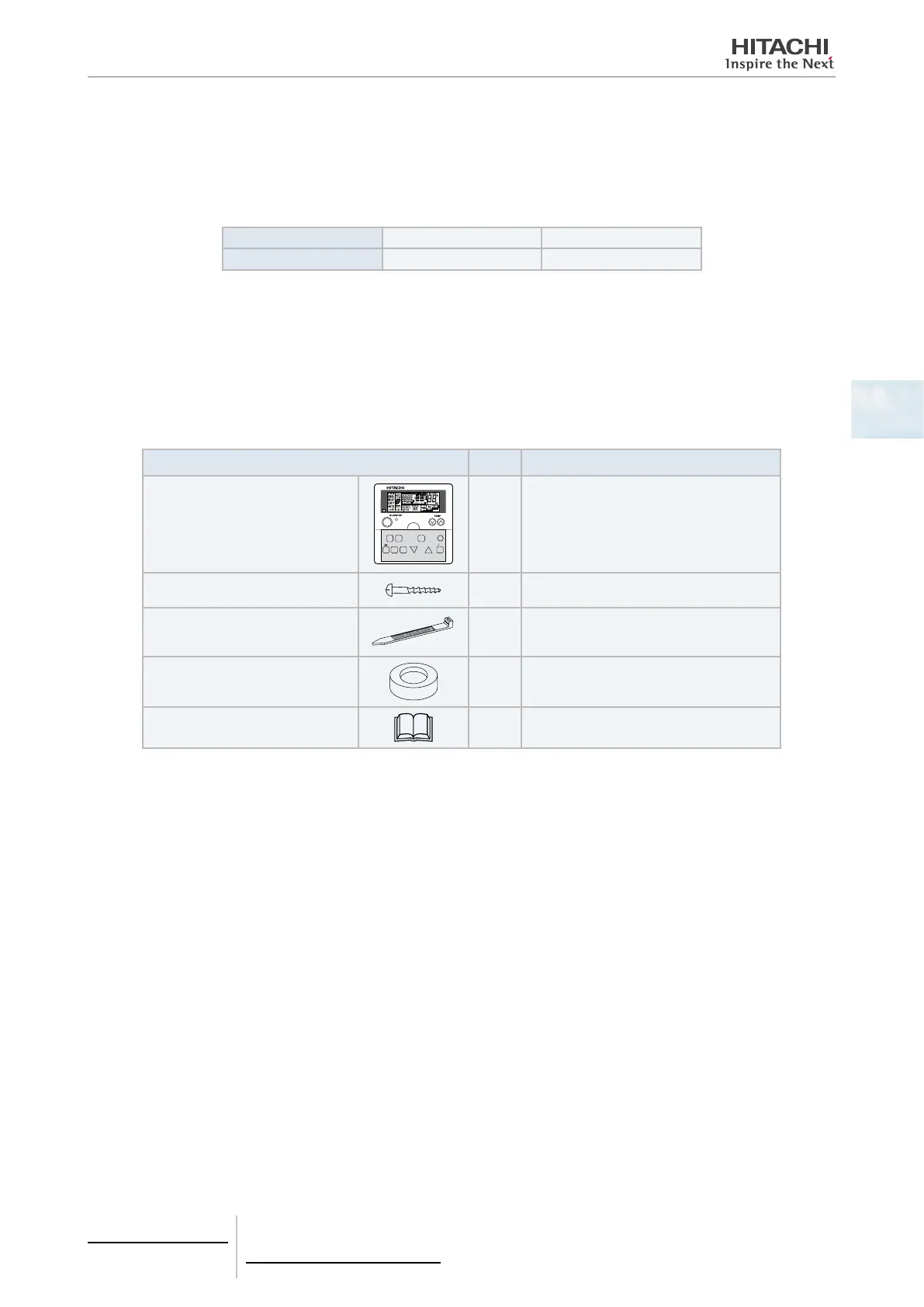

4.2.2.2 Components list
Unpack the unit and check that:
• The package contains all the components (see next table).
• All components are in perfect condition.
Otherwise, contact the manufacturer.
Name Quant. Comments
Remote control
DAY
SCHEDULE
SELECT
LOUVER
VENTI
MODE
FANSPEED TIMER
RESET
OK
1 For controlling system operation
M4x16L screws
2 For îš¿xing the bracket to the wall
Cable tie
1 For attaching the cable to the ring core
Ring core
1 For securing the cables
Installation and operation manual
1 Installation and operation unit instructions.
