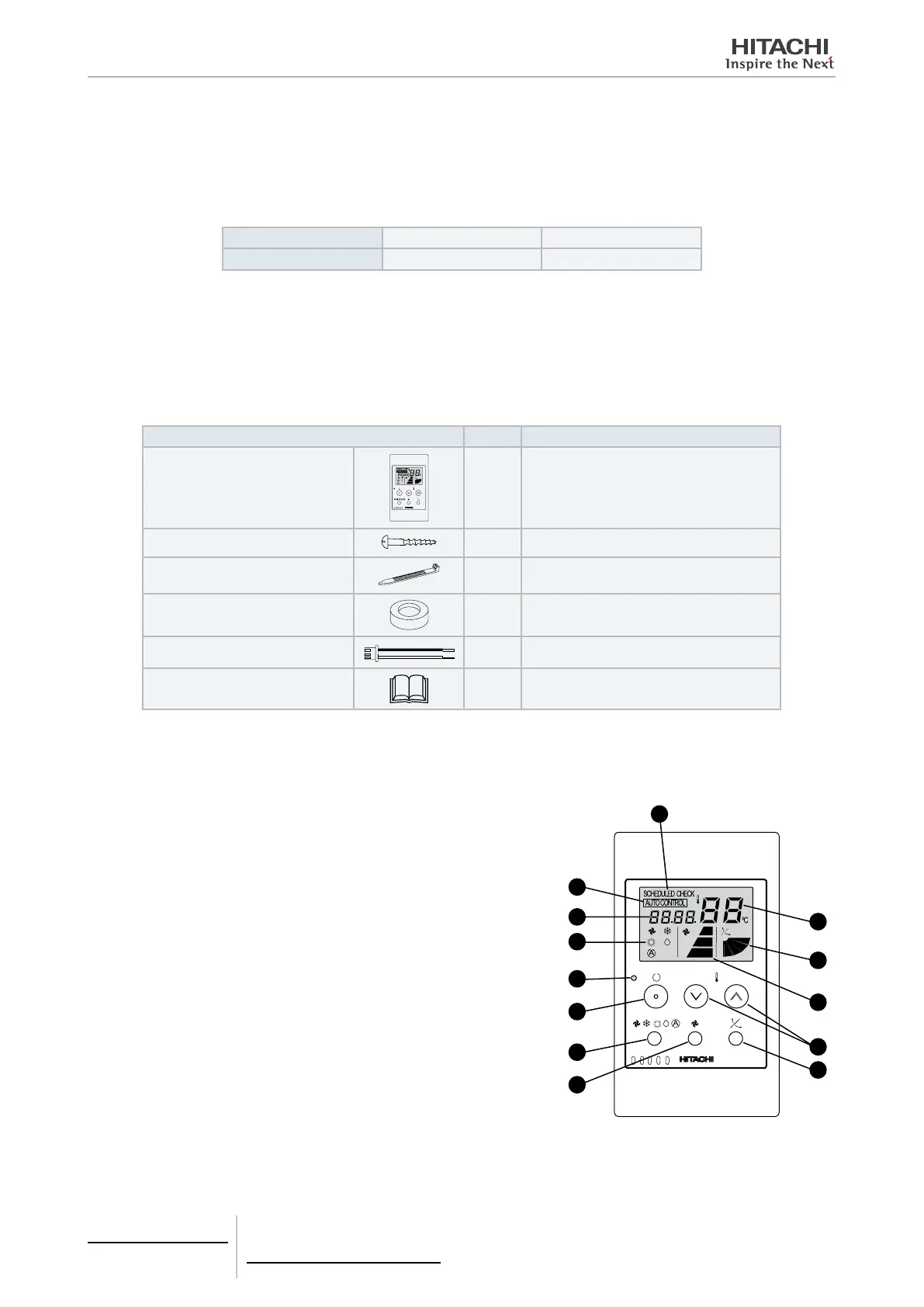

4 Individual remote controls
PC-ARH
TCGB0106 rev.0 - 12/2014
160
4.3.2 Installation
4.3.2.1 Installation site selection
Take note of the maximum admissible cable length between units and the control as well as between the units themselves,
as shown in the following table:
Cable section 0.3 mm
2
≥ 0.75 mm
2
Cable length 30 m 500 m
4.3.2.2 Components list
Unpack the unit and check that:
• The package contains all the components (see next table).
• All components are in perfect condition.
Otherwise, contact the manufacturer.
Name Quant. Comments
Remote control
1 For controlling system operation
M4x16L screws
2 For xing the bracket to the wall
Cable tie
1 For attaching the cable to the ring core
Ring core
1 For securing the cables
Cable with connector (20 cm)
1 –
Installation and operation manual
1 Installation and operation unit instructions.
4.3.2.3 Description of the parts
SCHEDULED CHECK indicator
4
6
7
8
9
10
11
1
2
3
5
12
13
Model: PC-ARH
AUTO CONTROL indicator
Alarm code indicator
Operation mode indicator
RUN LED
RUN/STOP button
MODE button
FAN SPEED button
Swing louver
TEMP button (temperature setting)
Fan speed indicator
Swing louver indicator
Temperature indicator
