5.1.2.3 Description of the parts

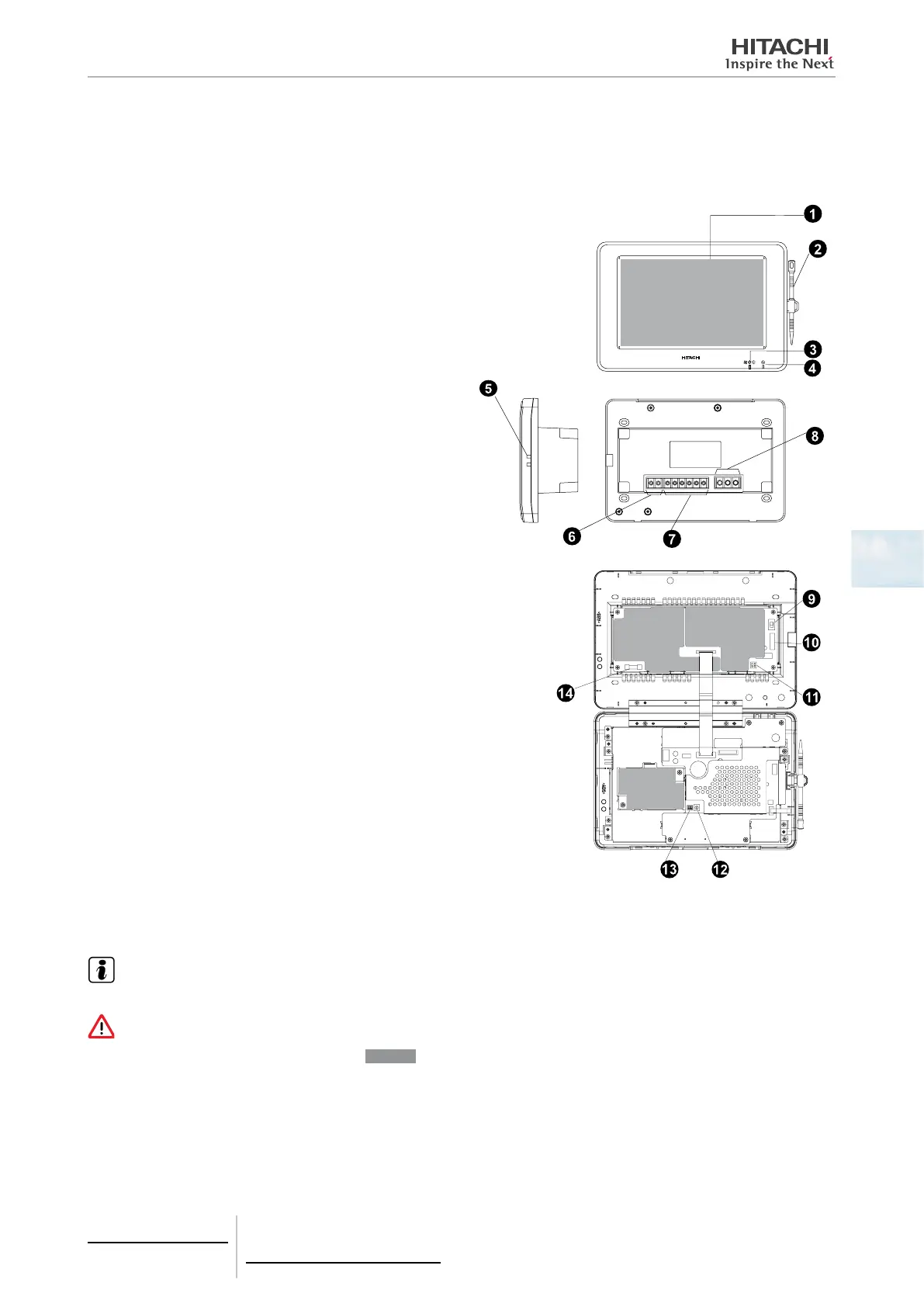

Colour LCD Display with Touchscreen
To operate and monitor the units through the touchscreen
display. It is operated by using the touch pen (accessory). The
touchscreen display will be automatically turned off when the
touchscreen is not operated for the given length of time.
Front side
Right side
Rear side
When unit body is open
Model: PSC-A64GT
Touch Pen
To operate the touchscreen of the central station.
Operation Indicator
To indicate the Run/Stop condition of the units
OFF: All the units are stopped.
ON (Green): One or more units are in operation.
Flashing (Red): In abnormal condition.
Power Indicator
To indicate the power condition of the central station
OFF (lamp): Power is turned OFF
ON (lamp): Power is turned ON
Fixing holes for Touch Pen holder
TB2
Terminals for connecting H-LINK control wiring (Non-pole)
TB3
Terminals for external input/output
1-2: External input 1
2-3: External input 2
4-5: External output 1
5-6: External output 2
TB1
Terminals for connecting the power cable
Power switch to turn OFF power supply
Use this switch to avoid an electrical shock when unit body is
opened
Fuse for H-LINK Transmission Line
For protection of H-LINK transmission line
DSW2
For terminating resistance. It is used for transmission line
recovery
Rotatory Switch for Address Setting
For address setting of controller
DSW1
For optional function setting
Fuse for Power supply
For protection of power circuit
NOTE
Remove the protection sheet on the LCD (liquid crystal display) before using this product.
DANGER
DO NOT remove the covers of parts marked with “ ” for safety. If these covers are removed, contact with the inside components
may cause a serious electrical shock.
5 Centralised remote controls
PSC-A64GT
TCGB0106 rev.0 - 12/2014
