6 Building air conditioning controls
CSNET Manager LT/XT
TCGB0106 rev.0 - 12/2014
585585
6
6.2.5 Extras
6.2.5.1 Customization and conguration of Building Layout
Building Layout option allows to use a schema of your installation, showing you the installation information in a more
friendly view. It will make easy to manage your installation.
To create a Building layout îš¿le you must to start the Building Layout editor application. This application is provided in your
CSNET Manager installation CD-ROM.
There are two concepts that you must know before start the Building layout creation:
• Shape: marks the area of a unit or a zone.
• Zone: is a slide that contains different shapes.

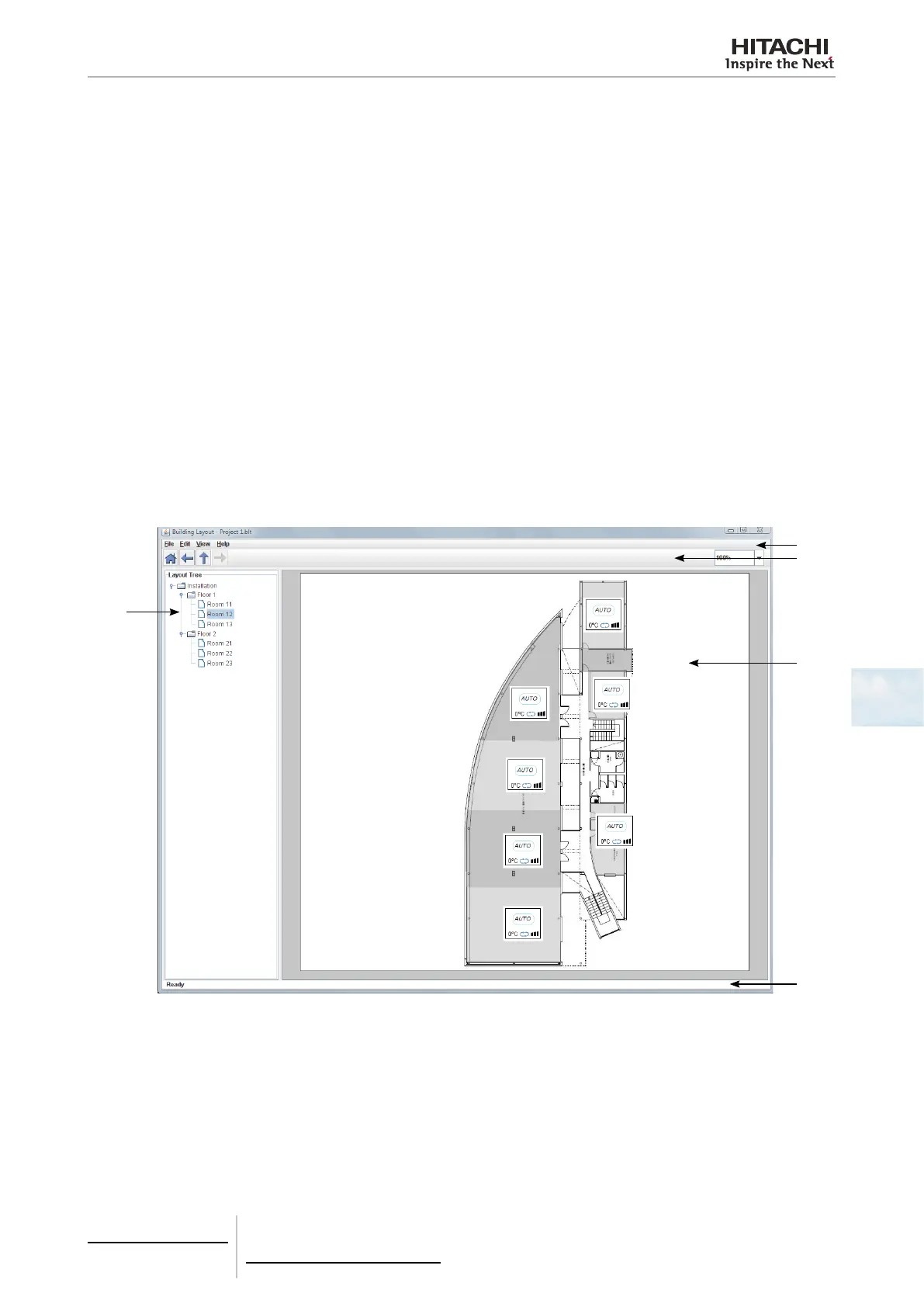

Building Layout Editor has îš¿ve zones:
1 Tree: shows you the installation topology and allow the fast movement of zones.
2 Menu Bar: has general options of actions that you can do.
3 Tool Bar: has navigation and zoom buttons.
4 Edition zone: interface to create the shapes inside a zone.
5 Status Bar: has information of state of program.
2
4
1
5
3
