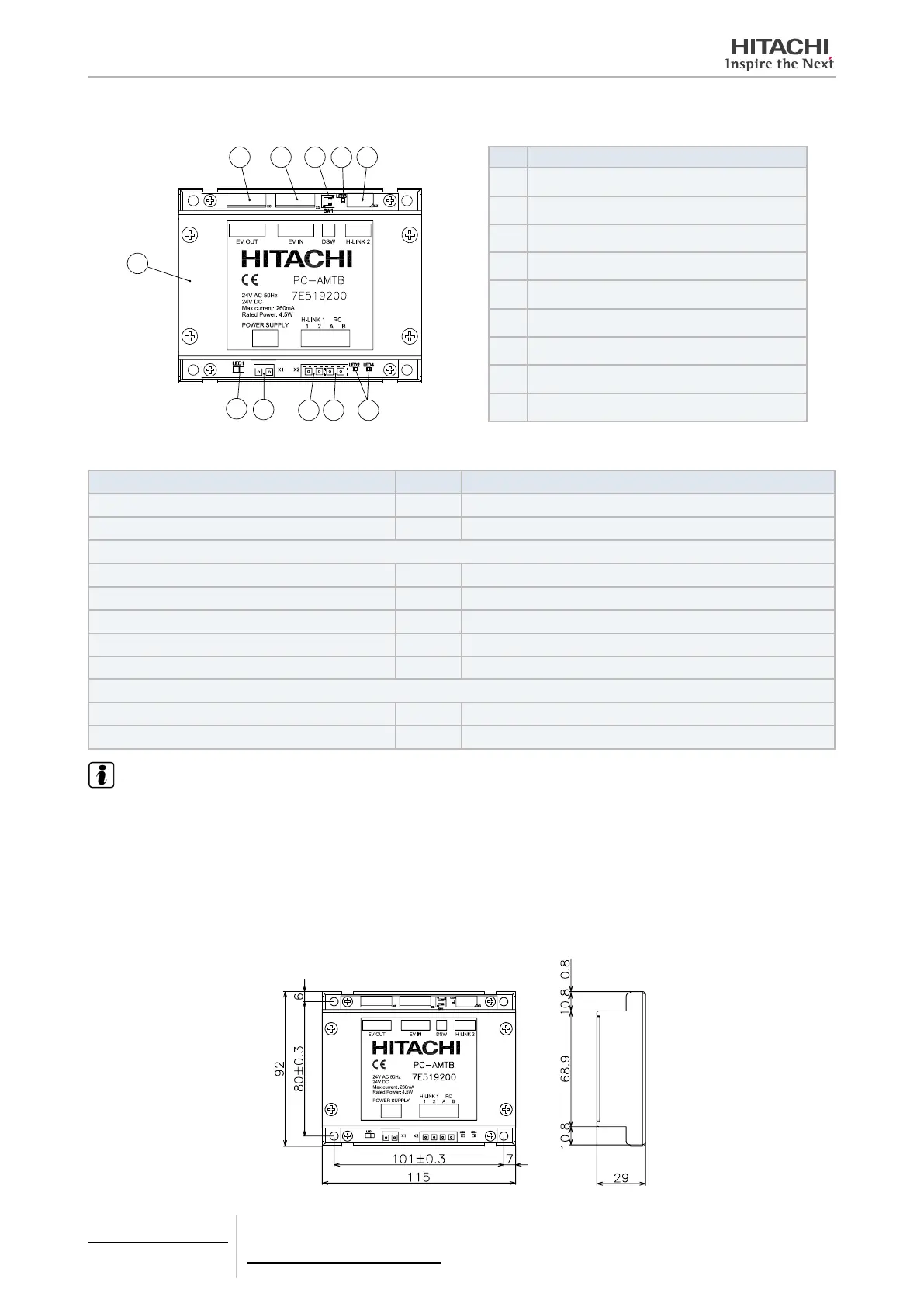

8.5.2.3 Description of the parts
1
2 3 8 9 4
9
5
6 7 9
No. Description

Case

Expansion valve outlet connector

Expansion valve inlet connector

Internal H-LINK connector

Power supply terminals

External H-LINK connector

Remote control communication terminals

DIP switch (SW1)

LED indicators
8.5.2.4 General data
Item Units Description
Power supply V 24 VDC/VAC ±10%
Rated power W 2.3
Peak power consumption
1) Connected to type A models (*) W 4.7
2) Connected to type B models (*) W 7
Dimensions (HxWxD) mm 92 x 115 x 29
Weight (Gross/Net) g 450/250
Mounting conditions - Indoor
Working range
Temperature ºC 0-60ºC
Humidity % 20-85% RH
NOTE
(*):
• Indoor unit models type A: All indoor units except B and C type.
• Indoor unit models type B: RPI-(8.0/10.0)FSN3E.
• Indoor unit models type C: RPI-(16.0/20.0)FSN3PE, which cannot be used with PC-AMTB.
