2.3.3 H-LINK I & H-LINK II Compatibility
All the controls shown in this document work with H-LINK II except HARC-BX E (A/B) and PSC-6RAD. However, all the
H-LINK II controls can also work with H-KINK I units.
H-LINK I unit and H-LINK II unit can be mixed in the same bus without any adapter. Anyway, refer to the following system

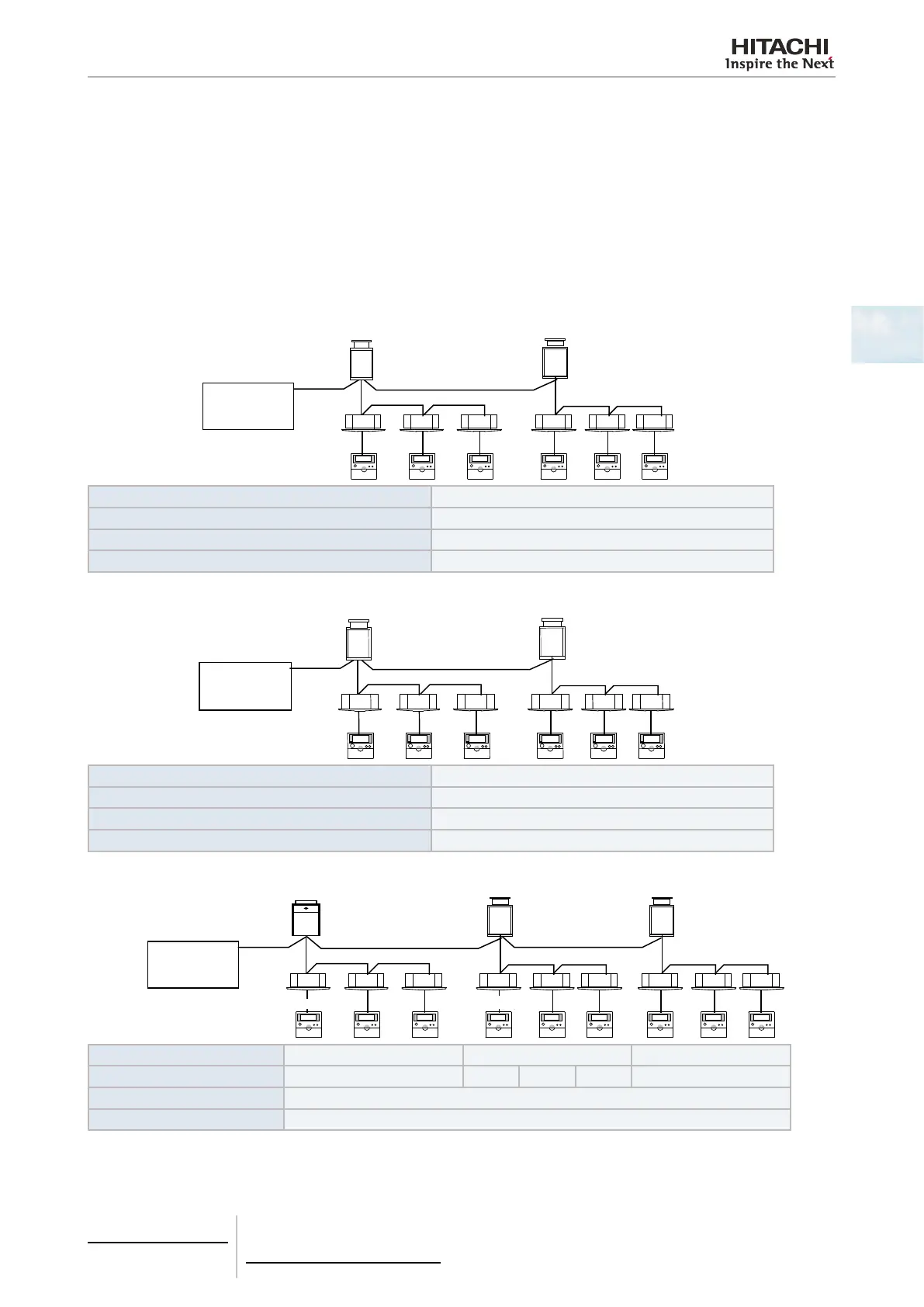

samples to realise the existing limitations in each case.
Legend:
• HII: H-LINK II
• HI (old): H-LINK I
1 In case of Units and Central Controller are H-LINK II type
Refrigerant Cycle Range 0-63
Indoor Address Range 0-63
Connectable Indoor Units 160 Units
Maximum Connected Devices 200 Units
2 In case of Central Controller is H-LINK I type
HI (old)
Refrigerant Cycle Range 0-15
Indoor Address Range 0-15
Connectable Indoor Units 128 Units
Maximum Connected Devices 145 Units
3 In case of Central Controller is controlling both H-LINK I and H-LINK II type
HI(old)
HI(old)
HI(old)
HI(old)
HI(old)
Refrigerant Cycle Range 0-15 0-15 0-63
Indoor Address Range 0-15 0-15 0-15 0-63 0-63
Connectable Indoor Units 128 Units
Maximum Connected Devices 145 Units
