6 Building air conditioning controls
CSNET Manager LT/XT
TCGB0106 rev.0 - 12/2014
520520
6.2.3 Installation
6.2.3.1 Installation site selection
Take note of the maximum admissible cable length between units and the control as well as between the units themselves,
as shown in the following table:
Cable section 0.3 mm
2
≥ 0.75 mm
2
Cable length 30 m 500 m

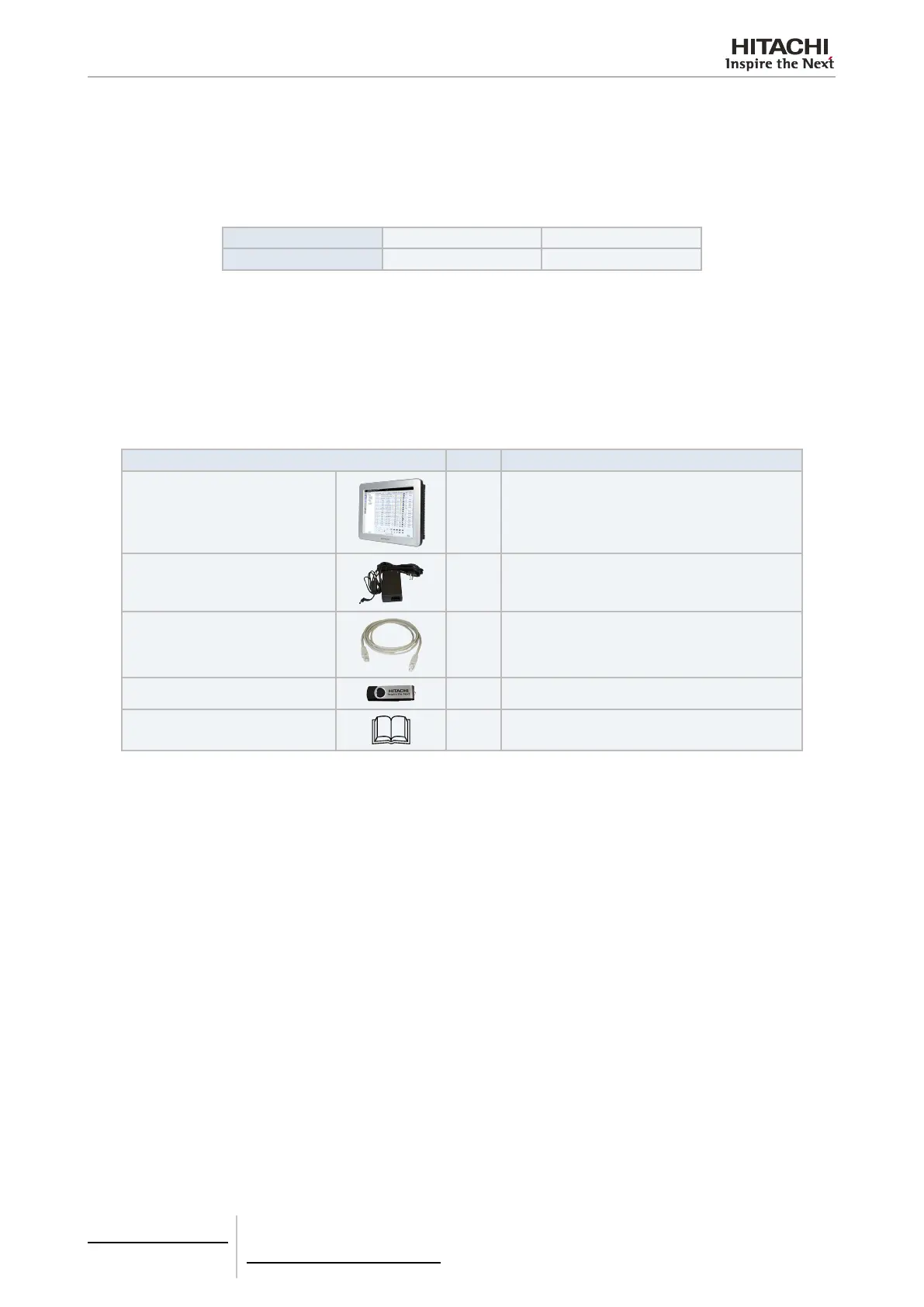

6.2.3.2 Components list
Unpack the unit and check that:
• The package contains all the components (see next table).
• All components are in perfect condition.
Otherwise, contact the manufacturer.
Name Quant. Comments
Touch computer
(LT: 5.0” ; XT: 8.5”)
1
Touch interface which runs CSNET Manager soft-
ware to control the indoor units.
Power adaptor
1 12 VDC, 5.0 A (maximum)
Ethernet cable
For PC connection
USB stick memory
1 To congure the gateway device.
Installation manual
1 Installation unit instructions.
