9.2 PCC-1A
9.2.1 Components list
Unpack the unit and check that:
• The package contains all the components (see next table).
• All components are in perfect condition.
Otherwise, contact the manufacturer.

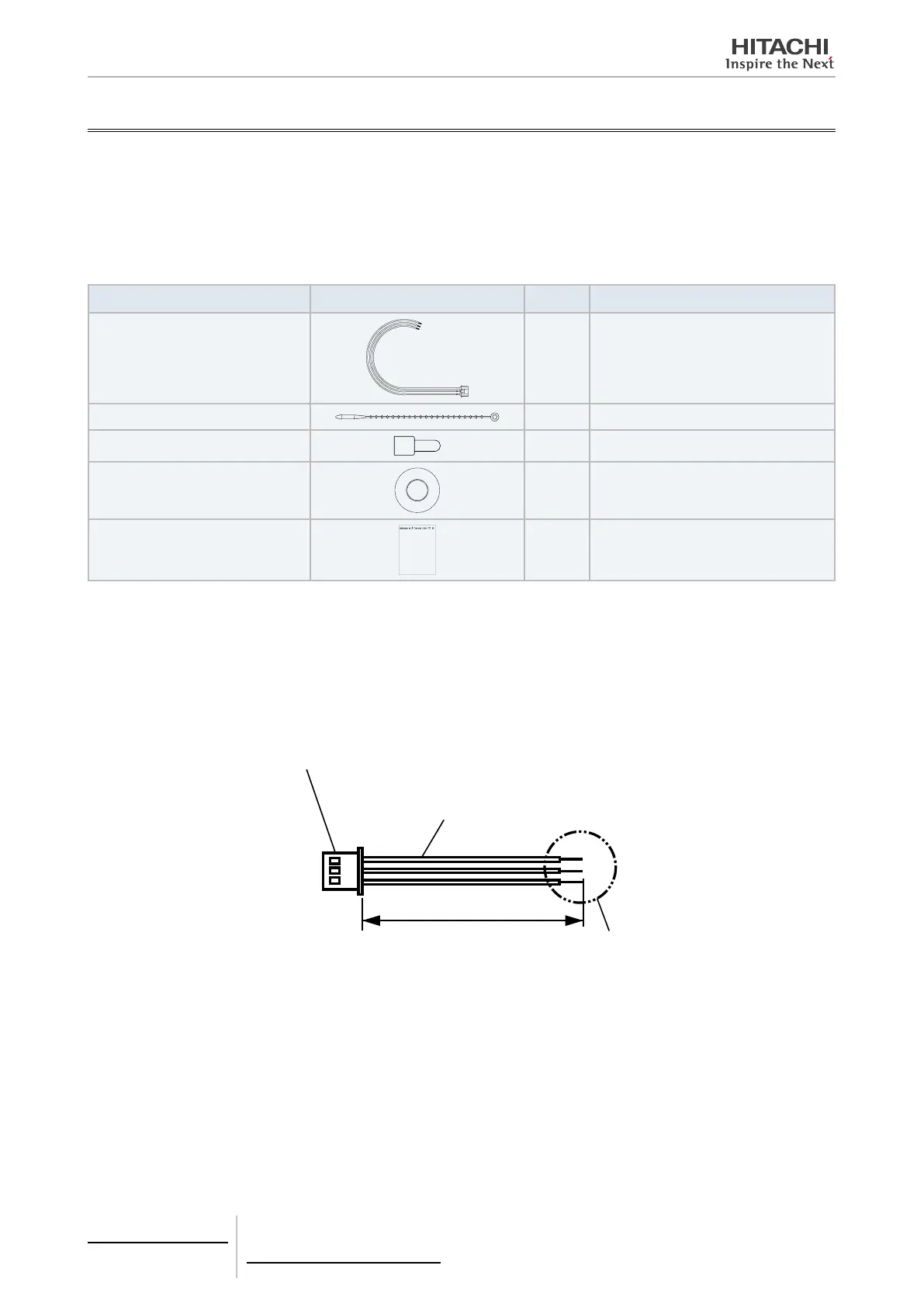

Name Figure Quantity Comments
PCC-1A connector cord
5
For connection of external input/output
signals
Cable tie
5 For securing the cables
Connector caps
15 -
Vinyl tape roll
1 -
Instruction sheet
1 Device instructions
9.2.2 System description
The PCC-1A is a 3P connector cable used when the remote ON/OFF device is connected or signals are taken out on the
printed circuit board. One set contains ve 3P connector cables.
Connector (“XARP-03V”
of NIPPON ACCHAKU
TANSHI = JST)
Lead Wire (0.3 mm
2
)
Approximately
300 mm
If long cord is needed, con-
nect eld supplied wires (0.3
to 0.5mm
2
) with soldering.
9 Control accessories
PCC-1A
TCGB0106 rev.0 - 12/2014
752
