6 Building air conditioning controls
CSNET Manager LT/XT
TCGB0106 rev.0 - 12/2014
530530
6.2.4.4 Graphic interface
CSNET Manager has two ways of presenting information and the available program options:
- Overall view: A tree scheme is used to organize the installation units and a table to show the units information.
- Building Layout view: A tree scheme is used to organize the installation units and a zone layout to show the units
information.
These two interfaces make usage easier and allow access to the system in a clearer, more streamlined way.

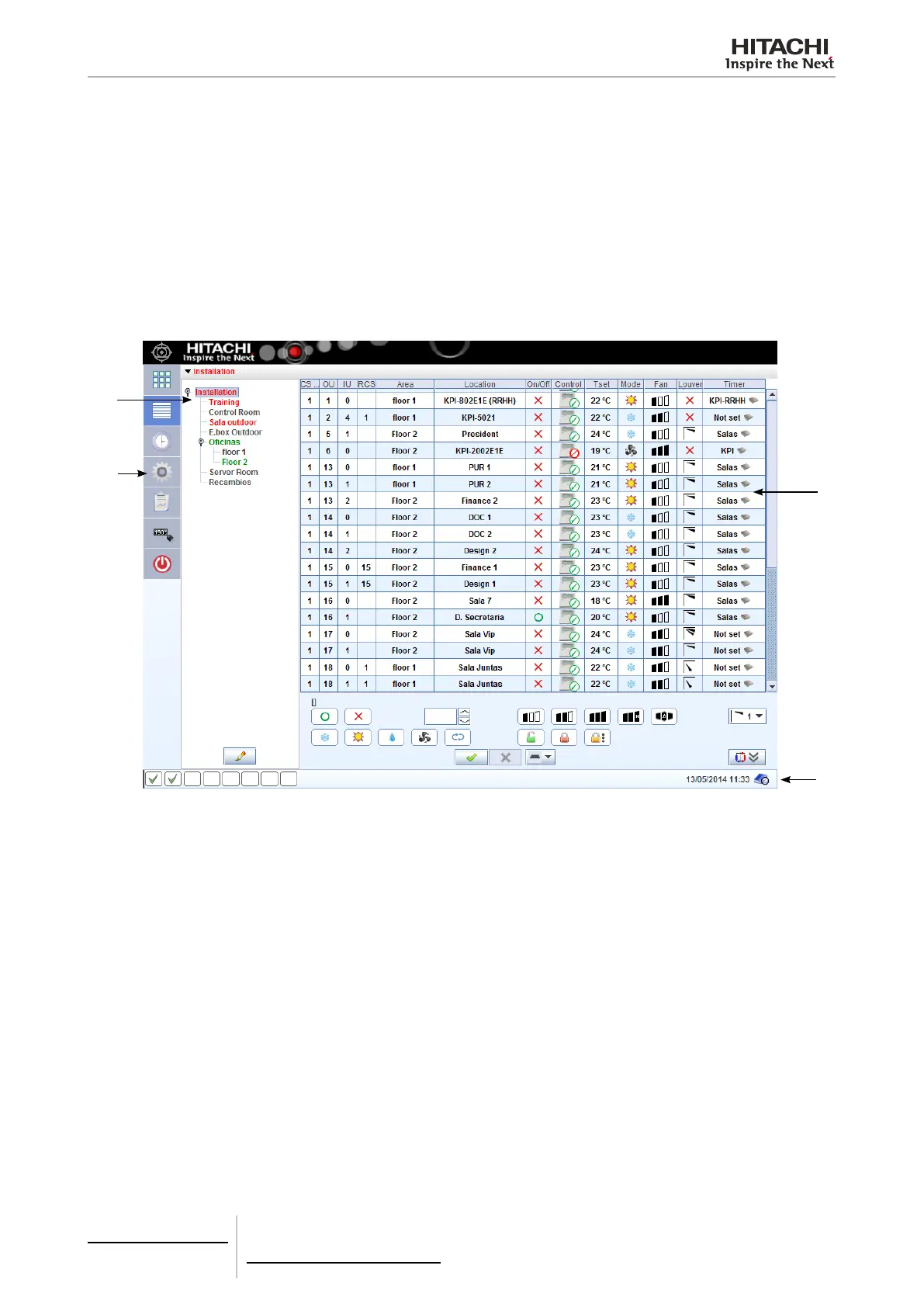

Overall view
CSNET Manager has an initial screen that shows a virtual layout with the detected units.
By clicking on the unit icon a virtual remote controller is displayed giving to the user the option of managing the units.
1
2
4
3
1 Area tree: Installation tree with the different areas dened by the user. Area tree can be hidden by clicking again on
the list view button.
Alarm signals: The CSNET Manager software lets you detect which units are in a situation of alarm, as these units will
be marked in red in the main window. At the same time, each of the areas which contains units in a situation of alarm
will be marked in red.
2 Units zone: Lists of all the indoor units with a basic state information.
3 Main options: Gives access to the installation data view, the conguration of CSNET Manager, the Historical Data and
the Power Consumption.
4 HARC-WEB Status: Shows the current state of HARCWEB connections, software functions enabled and if there are
automatic updates available.
