3 Features and benets
Control accessories
TCGB0106 rev.0 - 12/2014
5353
3
3.6 Control accessories

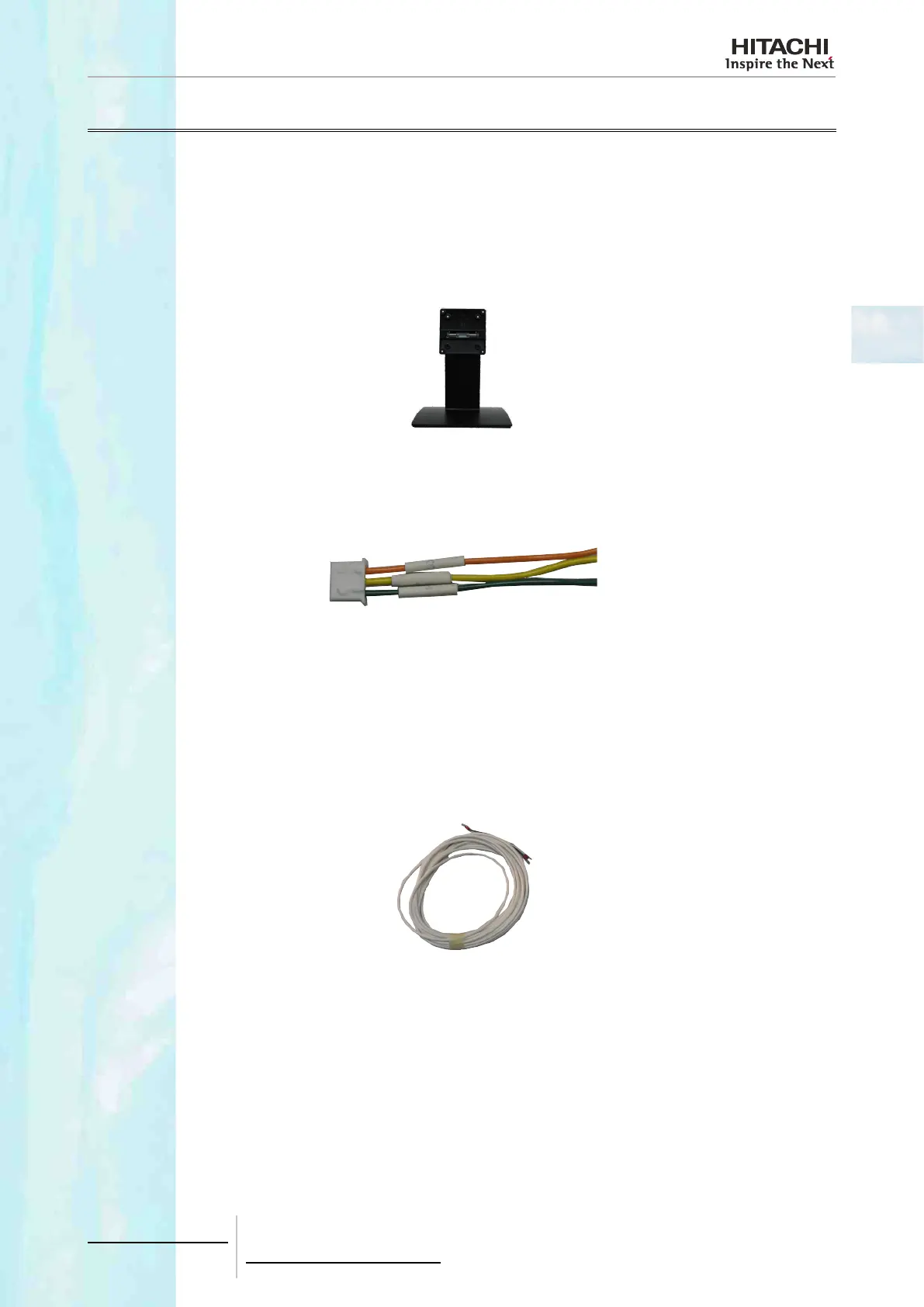

3.6.1 Wall / Stand mounted support for CSNET Manager LT/XT
CSNET Manager has standard VESA mounting dimensions commonly available in the market. However, HITACHI offers 2
accessories for the CSNET Manager (LT/XT) assembly:
Wall mounted support
(Image to be informed later)
Stand mounted support
3.6.2 PCC-1A
The PCC-1A is a 3P connector cable used when the remote ON/OFF device is connected or signals are taken out on the
printed circuit board. One set contains ve 3P connector cables.
PCC-1A Optional function 3P connector cable
• Dedicated connector for the optional functions. To be connected to the printed circuit board of the units.
• This last updated PCC-1A connector cable does not contain any Substance of Very High Concern (SVHC) according to
Article 59 of REACH Regulation 1997/2006 of European Union.
3.6.3 PRC-(10/15/20/30)E1
The PRC-(10/15/20/30)E1 is a 2P extension cable intended for individual remote controllers or central extensions whose
cables need to be extended up to more than 30 m. When the total cable length is not higher than 30 m, other type cable
(more than 0.3 mm
2
) can be used.
PRC-(10/15/20/30)E1: 2P extension cable
• The 2P extension cable is available in four different lengths:
- PRC-10E1: 10 m
- PRC-15E1: 15 m
- PRC-20E1: 20 m
- PRC-30E1: 30 m
• The remote control cable can be extended to a maximum of 500 m.
