6 Building air conditioning controls

CSNET Manager LT/XT

TCGB0106 rev.0 - 12/2014

521521

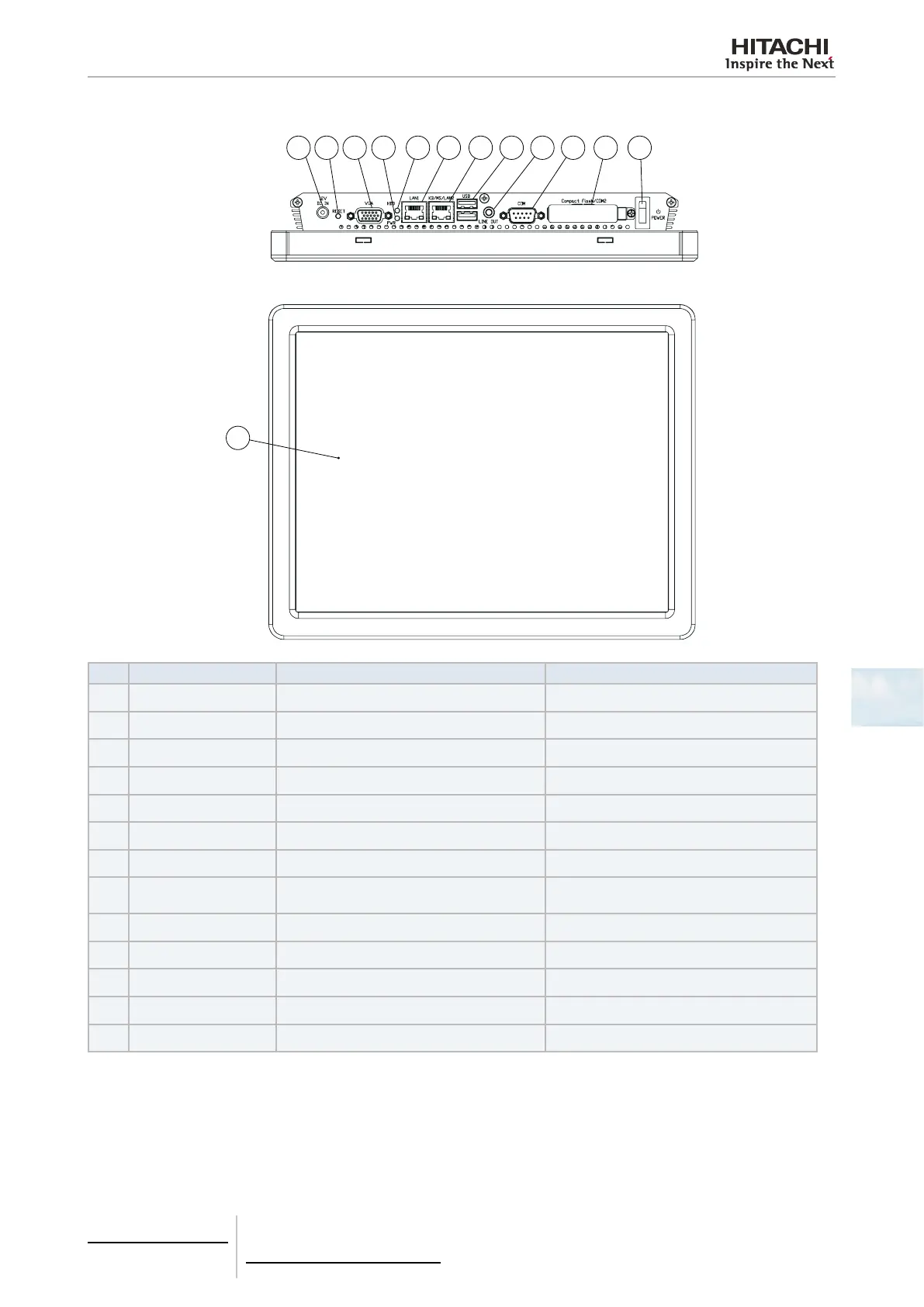

6.2.3.3 Description of the parts

5 4678913 12 11 10

No. Name Function Remarks



Screen Touch screen for selecting all the functions -



POWER Power on button -



Compact Flash/COM2 CF Type I/II Socket with Ejector Optional for 2nd COM port



COM Serial port 1 connector DB-9 male connector



LINE OUT Line-out audio jack -



USB 2 x USB 2.0 connector Dock USB



LAN1 RJ-45 Ethernet connector 1 -



KB/MS (LAN2)

LPC-1705/1707 -- PS/2 connector

LPC-17A4 -- LAN2

For CSNET Manager XT it is a LAN2 (RJ-45

Ethernet connector)



HDD HDD indicator -



PWR System power indicator -



VGA/HDMI CRT connector/HDMI connector -



RESET Reset button -



DC-IN DC Power-in connector -
