4 Individual remote controls
PC-ARH
TCGB0106 rev.0 - 12/2014
166

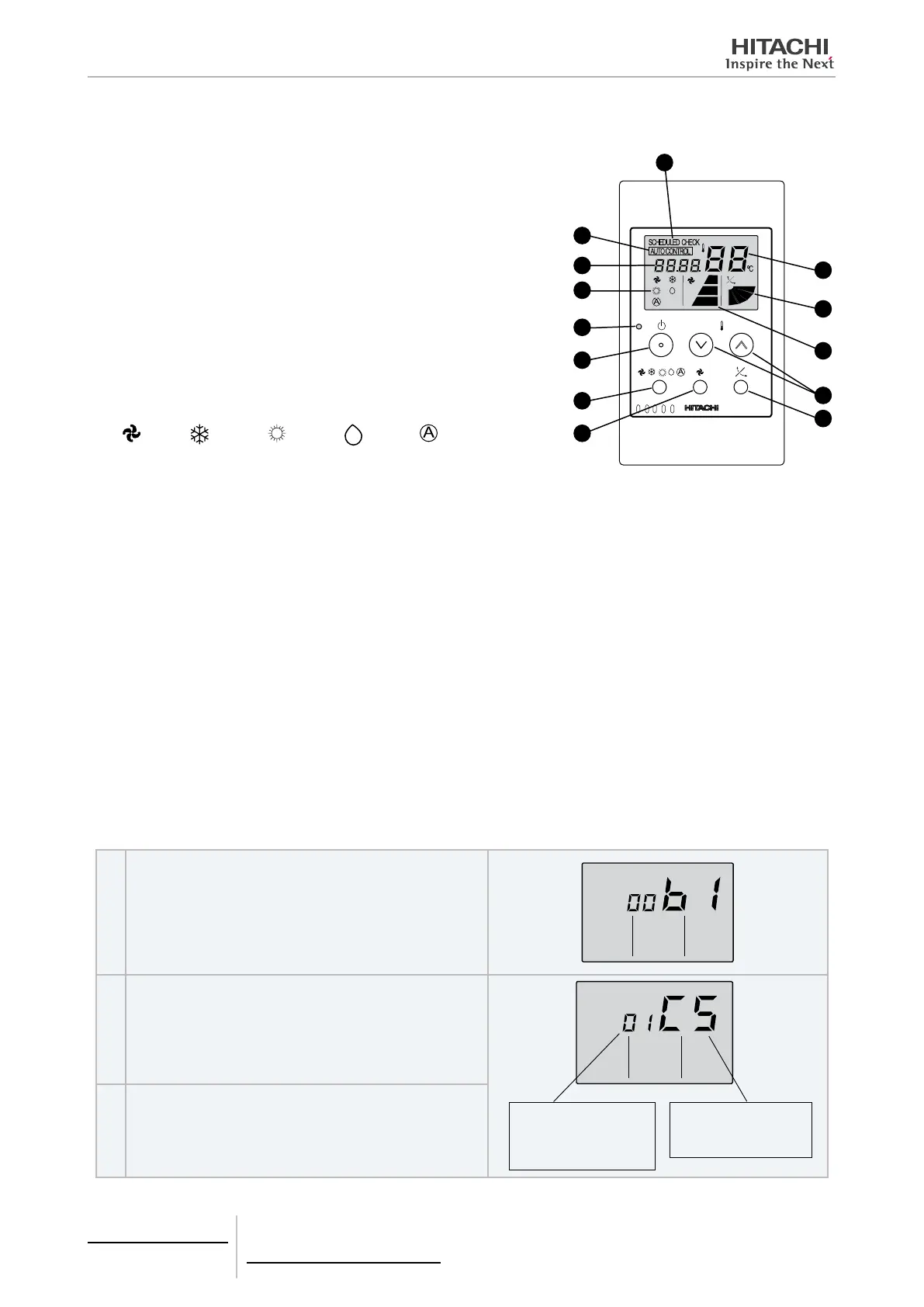

4.3.5 Operation
SCHEDULED CHECK indicator
Switches on during test mode
4
6
7
8
9
10
11
1
2
3
5
12
13
Model: PC-ARH (E)
AUTO CONTROL indicator
Appears when the operating condition is limited
Alarm code indicator
Appears when there is an abnormal condition in the air conditioning unit
Operation mode indicator
RUN LED (green)
Indicates that the unit is running.
RUN/STOP button
This button is used to start and stop the system.
MODE button
: FAN : COOL : HEAT : DRY : AUTO
By pressing this button repeatedly, the setting will change in sequence: “COOL”, “FAN”,
“HEAT”, “DRY” or “AUTO”.”FAN” (to restrict the change of operation mode H3:01; no restric-
tion, H3:02).
FAN SPEED button
By pressing this button repeatedly, the setting will change in sequence.
Swing louver
Start the swing louver by pressing this button. Press it again to stop the swing louver. The louver will then stop at the angle indicated by the direction
of the “
”indicator.
TEMP button (temperature setting)
This button is used to establish the setting temperature.
Fan speed indicator
Swing louver indicator
Temperature indicator
4.3.6 Optional Functions
4.3.6.1 Command functions
1. Switching to optional setting mode:
Press the “MODE” and “FAN SPEED” buttons at the same time
for at least 3 seconds when the air conditioning unit is off.
The screen will change, as shown in the diagram, when op-
tional setting mode is activated.
2. Changing options and setting elements:
Press “TEMP ” to change certain setting elements when
shown.
To change setting options, press the “TEMP ” button.Refer
the following table for setting elements and options.
Press the “TEMP ”
button to select setting
elements
Press the “TEMP ” but-
ton to change the set-
ting options
3. Cancelling the function selection mode:
To return to normal mode from 2., press the "MODE" and "FAN
SPEED" buttons at the same time.
