4 Individual remote controls
PC-LH3(A/B)
TCGB0106 rev.0 - 12/2014
173
4

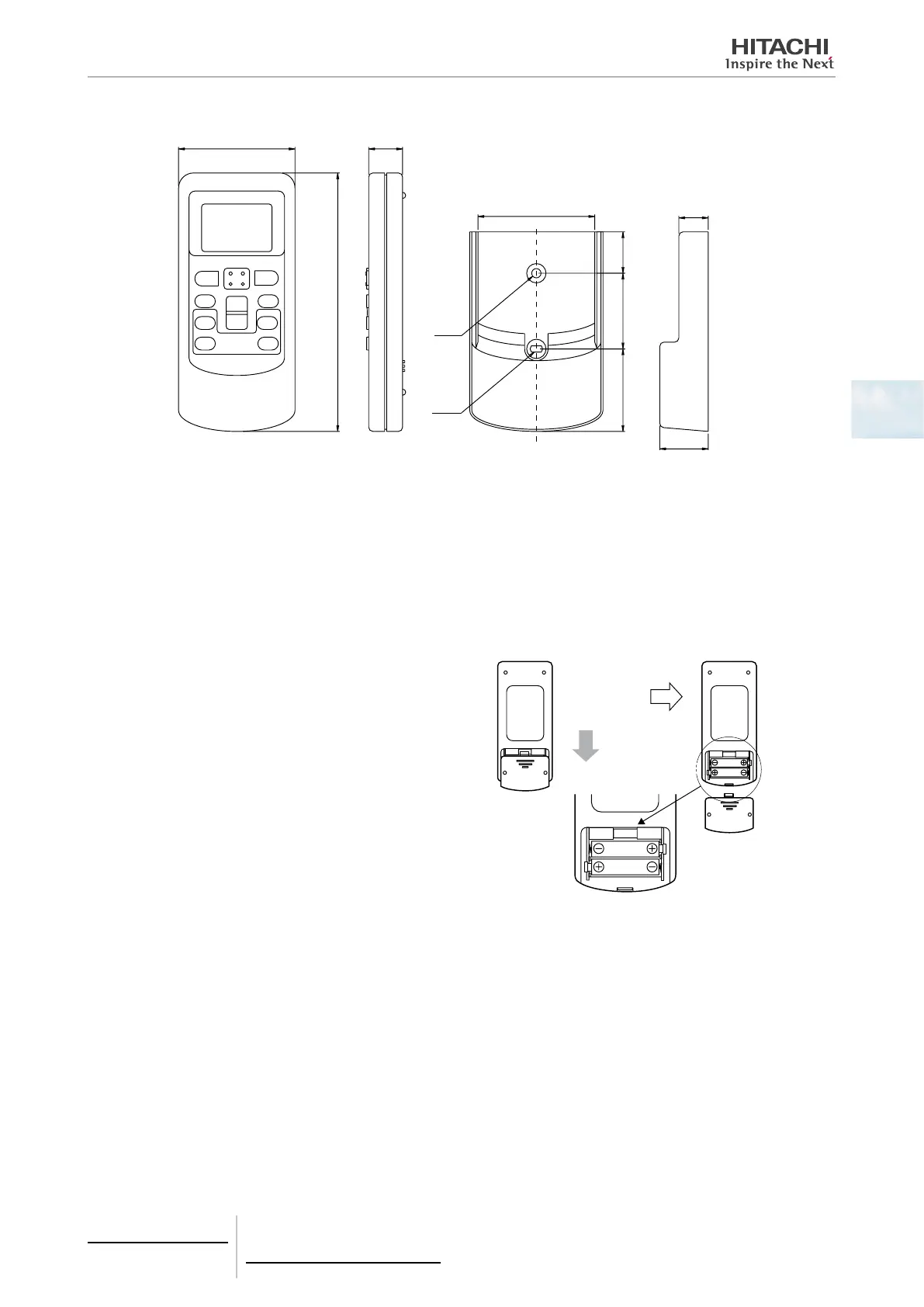

4.4.2.3 Dimension data
(mm)
5 x 4.6
125
14.2
20
23.4
39.9 36.6
16.4
56.5
56
ø4.5
4.4.2.4 Installation space
The space necessary for the installation is the minimum necessary to îš¿x the bracket allowing to remove without problems
the remote control.
4.4.2.5 Batteries setting
Place the batteries (AAA/1.5Vx2) in the controller as follows.
1 Remove the battery cover by sliding toward the arrow
direction by pushing the part of the cover as shown in
the îš¿gure below.
2 Insert the batteries according to the marks of + and - on
the case.
Slide toward
the arrow
direction with
pushing
AAA Bateries
