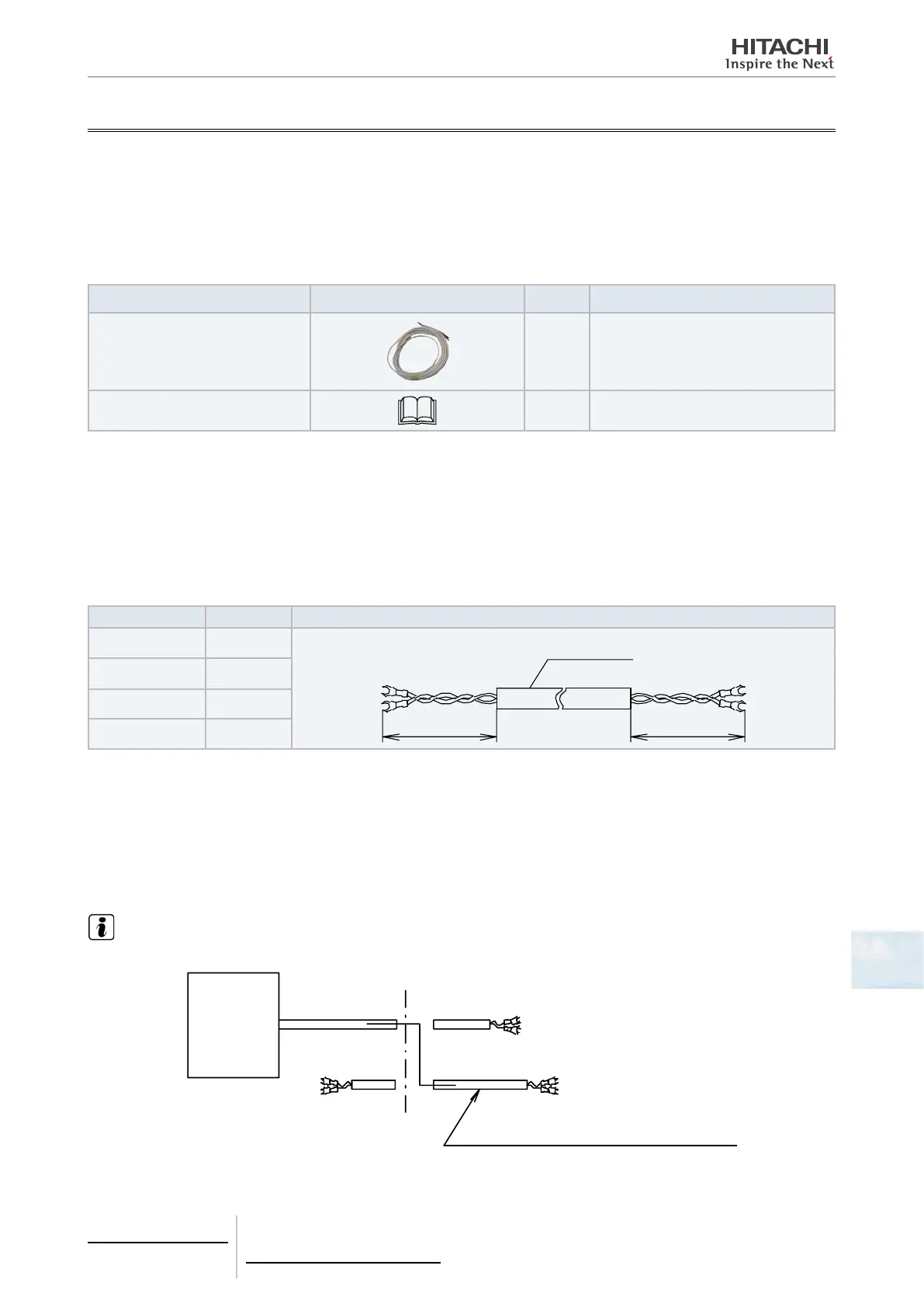

9.3 PRC-(10-30)E1
9.3.1 Components list
Unpack the unit and check that:
• The package contains all the components (see next table).
• All components are in perfect condition.
Otherwise, contact the manufacturer.
Name Figure Quantity Comments
PCC-1A connector cord
1
For extending the length of individual and
central remote controllers
Installation manual
1 Installation unit instructions.
9.3.2 System description
The PRC-(10/15/20/30)E1 is a 2P extension cable intended for individual remote controllers or central extensions whose
cables need to be extended up to more than 30 m. When the total cable length is not higher than 30 m, other type cable
(more than 0.3 mm
2
) can be used.
For the details of the optional 2P extension cable, refer to the table:
Model Length (m) Specication
PRC-10E1 10
Indoor unit
PCB side
50
100
Ø 3.6 Beige colour
(2 Twisted wires)
Remote control
switch side
PRC-15E1 15
PRC-20E1 20
PRC-30E1 30
9.3.3 Installation procedure
If the remote control cable requirement is longer than 30 m, connect a control cable (2 x 0.75mm2) in the eld, by soldering,
or use an optional extension remote control cable.
• The remote control cable can be extended to a maximum of 500 m.
• Extend the Remote Control Cable as shown in the gure
NOTE
Cut, connect each wire by twisting, and then solder it. Insulate each wire with a vinyl tape.
Remote
Control
Cut
Optional Remote Control Cable (PRC-(10-30)E1)
9 Control accessories
PRC-(10-30)E1
TCGB0106 rev.0 - 12/2014
753
