6 Building air conditioning controls
CSNET Manager LT/XT
TCGB0106 rev.0 - 12/2014
516516

CSNET MANAGER
ETHERNET
CSNET Manager
LT/XT
H-LINK
HC-A64NET
CSNET Manager
LT/XT
ETHERNET
HC-A64NET
LAN
H-LINK
T
H
-
H
-
L
It can be LAN or
Internet
CSNET Manager is connected to another CSNET Manager that it is connected to the H-Link installation through the HC-
A64NET.
Two CSNET Managers can be interconnected, allowing each of them to monitor and control the H-Link installation
connected to the other one.
NOTE
• HC-A64NET can be connected only to one CSNET Manager.
• (*1): One CSNET Manager only sends the units from its HC-A64NET and CSNET WEB to all the CSNET Managers that are monitoring
it.
• (*2):CSNET Manager monitoring devices shall be connected only to a CSNET Manager with linked H-LINK devices congured;
otherwise, these devices will not be shown on the monitoring screen.
• (*3): Each CSNET Manager can only share with other CSNET Manager devices the control of those indoor units that are connected
directly to it through HC-A64NET or CSNET WEB interfaces.
• (*4): CSNET MANAGER devices can monitor each other reciprocally.

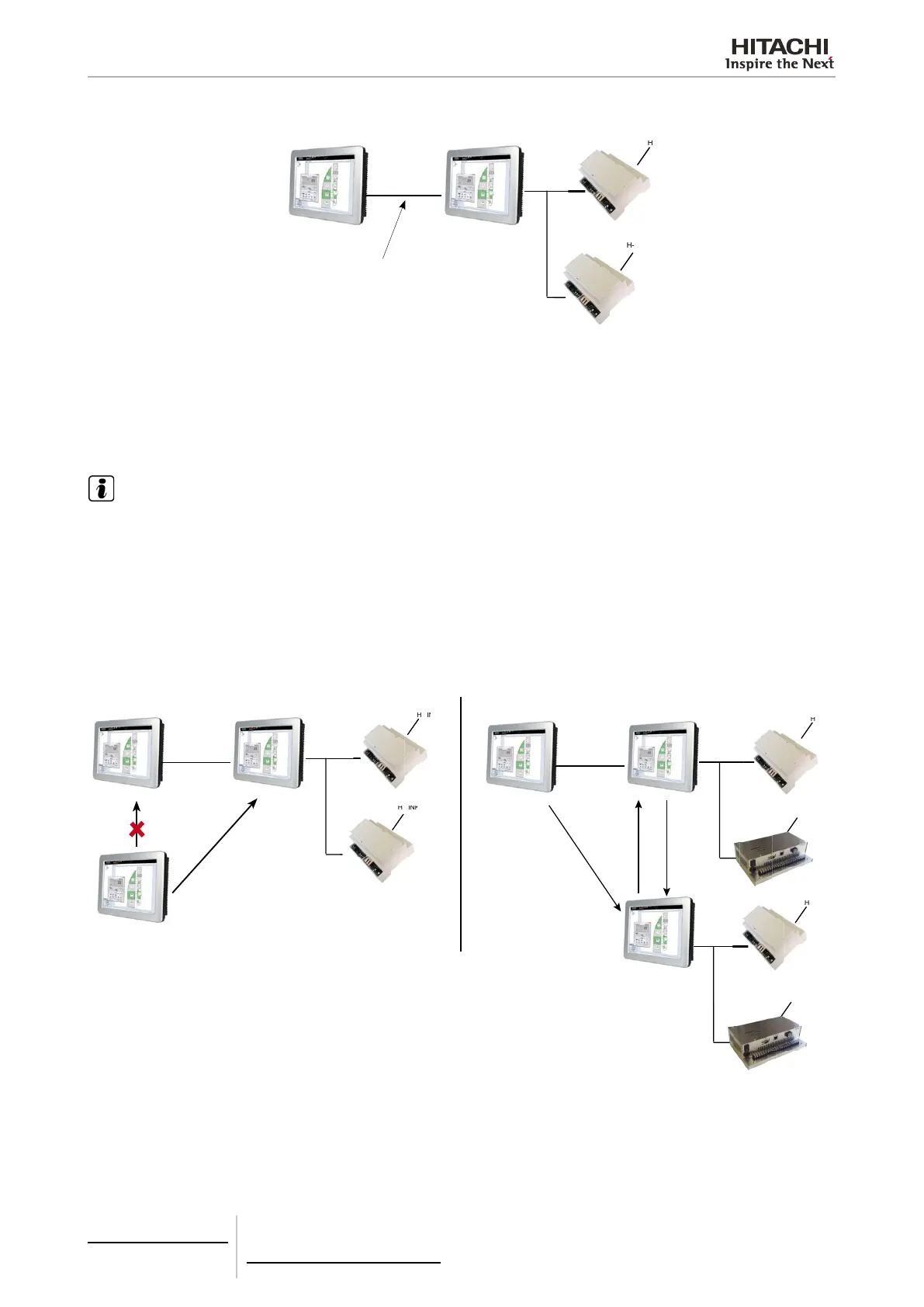

Example 2:
H-LINK
HC-A64NET
H-LINK
CSNET WEB
H-LINK
HC-A64NET
H-LINK
CSNET WEB
H
-
L
CSNET
WEB
H
-
(*3)
(*3)
(*4)
CSNET Manager LT/XT
CSNET Manager LT/XT
CSNET Manager LT/XT
LAN
ETHERNET
ETHERNET
H-LINK
HC-A64NET
HC-A64NET
H-LINK
H
-
L
I
N
H
-
L
I
N
K
(*1)
Yes
(*2)
No
(*2)
CSNET Manager LT/XT
Example 1:
CSNET Manager LT/XT
ETHERNET
LAN
ETHERNET
6.2.2.2 Based on Java technology
CSNET Manager, RCS Web Net congurator and building layout use JAVA.
JAVA J2SE Runtime Environment must be installed in order to run RCS Web, Net congurator or building layout. CSNET
Manager is supplied in a USB drive to simplify installation.
