4 Individual remote controls
Receiver kit for wireless remote control
TCGB0106 rev.0 - 12/2014
192

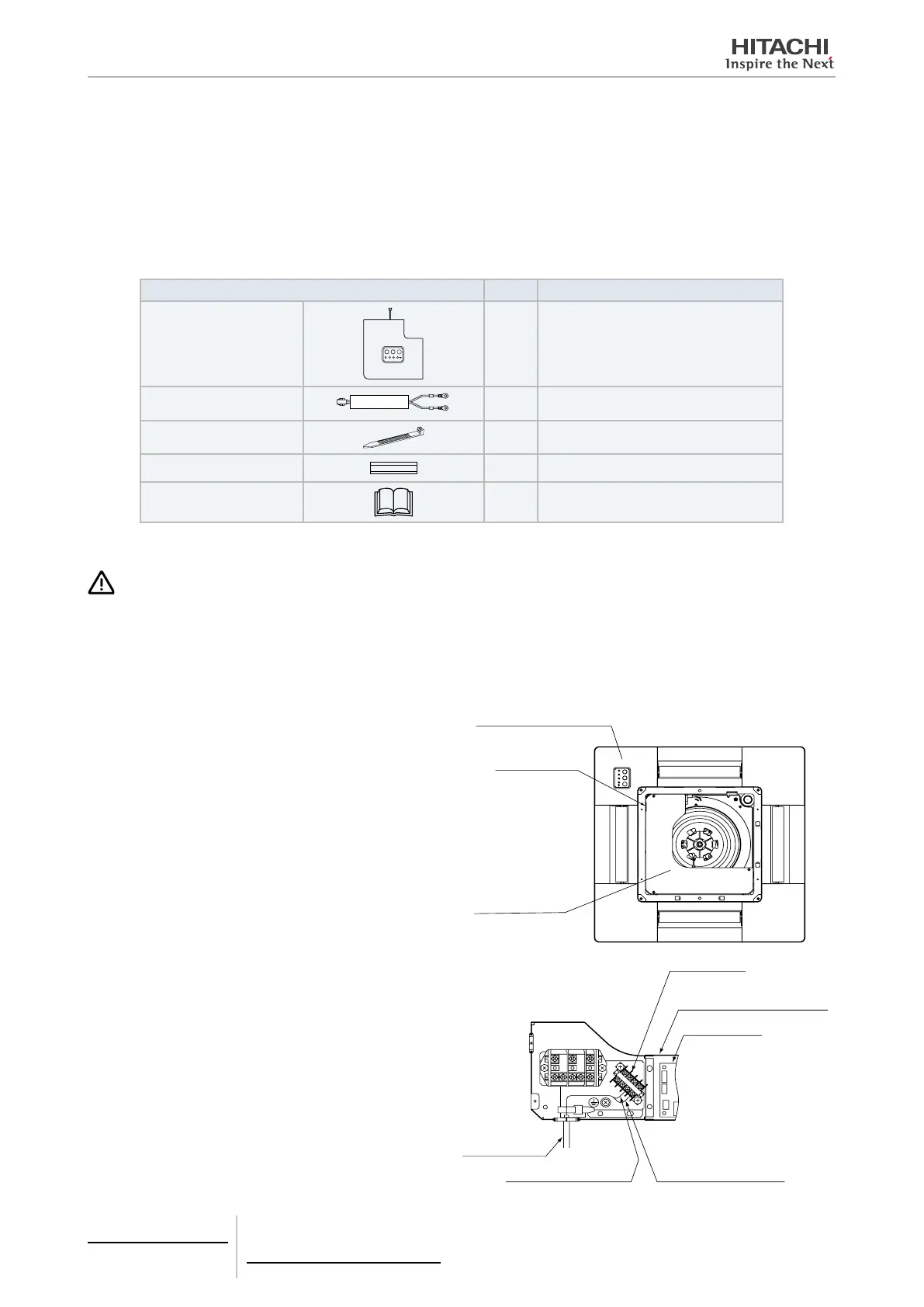

4.5.2.2 Installation
Components list
Unpack the unit and check that:
• The package contains all the components (see next table).
• All components are in perfect condition.
Otherwise, contact the manufacturer.
Name Quant. Comments
Receiver kit PC-ALHC
1 With connection wire
Connection cable
1 –
Flexible cable tie
2 For securing the cables
Wiring cover
1 To protect the connection cable
Installation and operation
manual
1 Installation and operation unit instructions
Installation procedure
CAUTION
Follow these installation procedures carefully. Failure to do so may cause the receiver to become detached from the panel causing a
serious accident.
1 Install the wireless receiver kit, indoor unit and air panel at the same time.
2 If installing the wireless receiver kit after the indoor unit, unplug the power source from the indoor unit. Then remove
the grille from the air inlet.
3 This receiver kit can only be installed in one position.
Cable hole
Installation position
Electrical box
4 Remove the cover from the electrical box of the indoor
unit and connect the cable to the terminal block (white),
as shown below.
Connection cable
Terminal board
Electrical box of the indoor unit
PCB
Cable tie trade “A” Cable tie trade “B”
To Next Page
