FUEL SYSTEM (Programmed Fuel Injection)
6-40

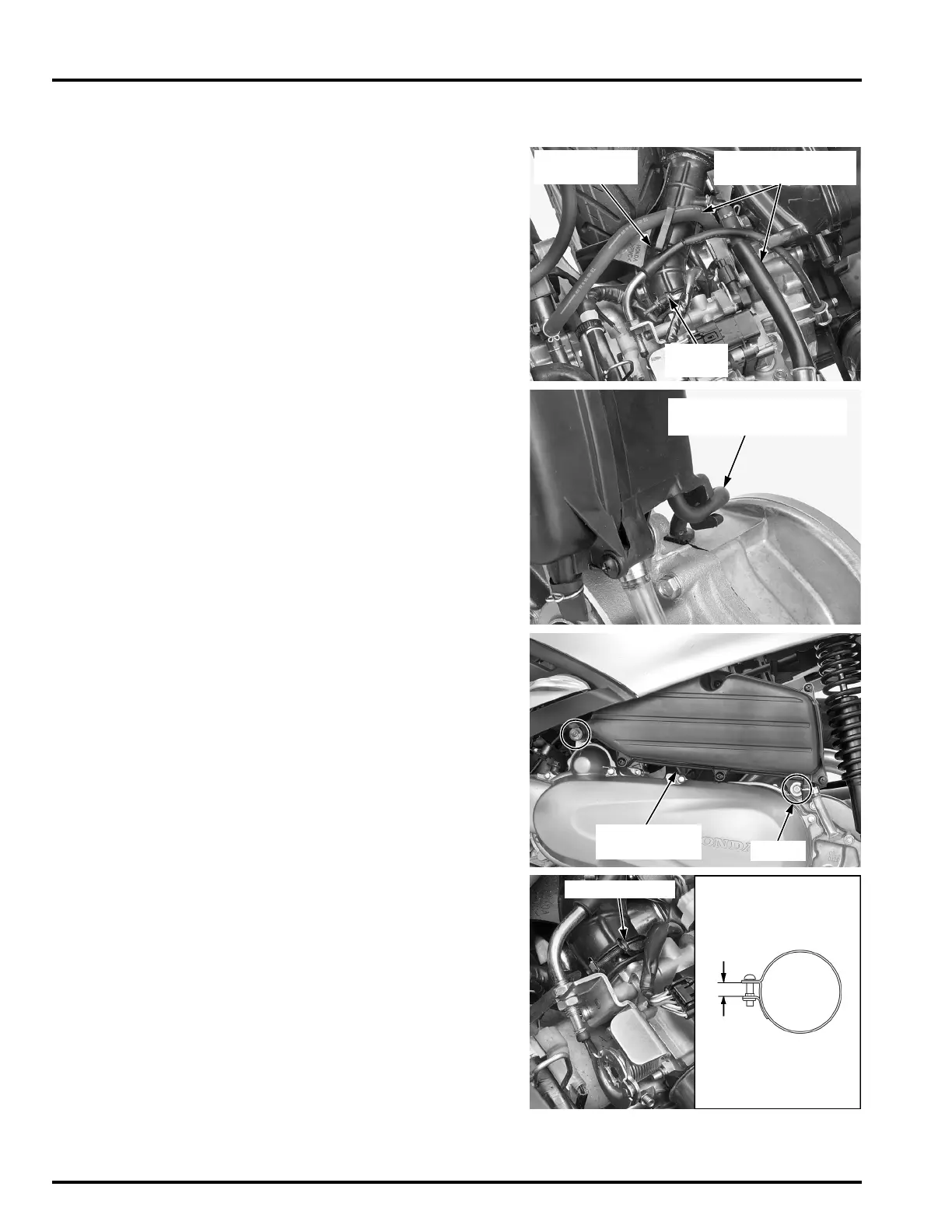

AIR CLEANER HOUSING
REMOVAL/INSTALLATION
Remove the luggage box (page 3-8).
Disconnect the crankcase breather hoses from the
air cleaner housing.
Loosen the connecting hose band screw and dis-
connect the connecting hose from the throttle body.
Disconnect the final reduction case breather hose
from the air cleaner housing.
Remove the bolts and air cleaner housing.
Route the hoses
properly (page 1-
17).
Installation is in the reverse order of removal.
• Tighten the connecting hose band screw until the
clearance between the screw and band end is 7.0
± 1.0 mm (0.28 ± 0.04 in)
BAND
SCREW
CONNECTING
HOSE
CRANKCASE
BREATHER HOSES
FINAL REDUCTION CASE
BREATHER HOSE
MOUNTING BOLTS
SPEED SENSOR WIRE
BOLTS
AIR CLEANER
HOUSING
7.0 ± 1.0 mm
(0.28 ± 0.04 in)
BAND SCREW
