LIGHTS/METERS/SWITCHES
21-14

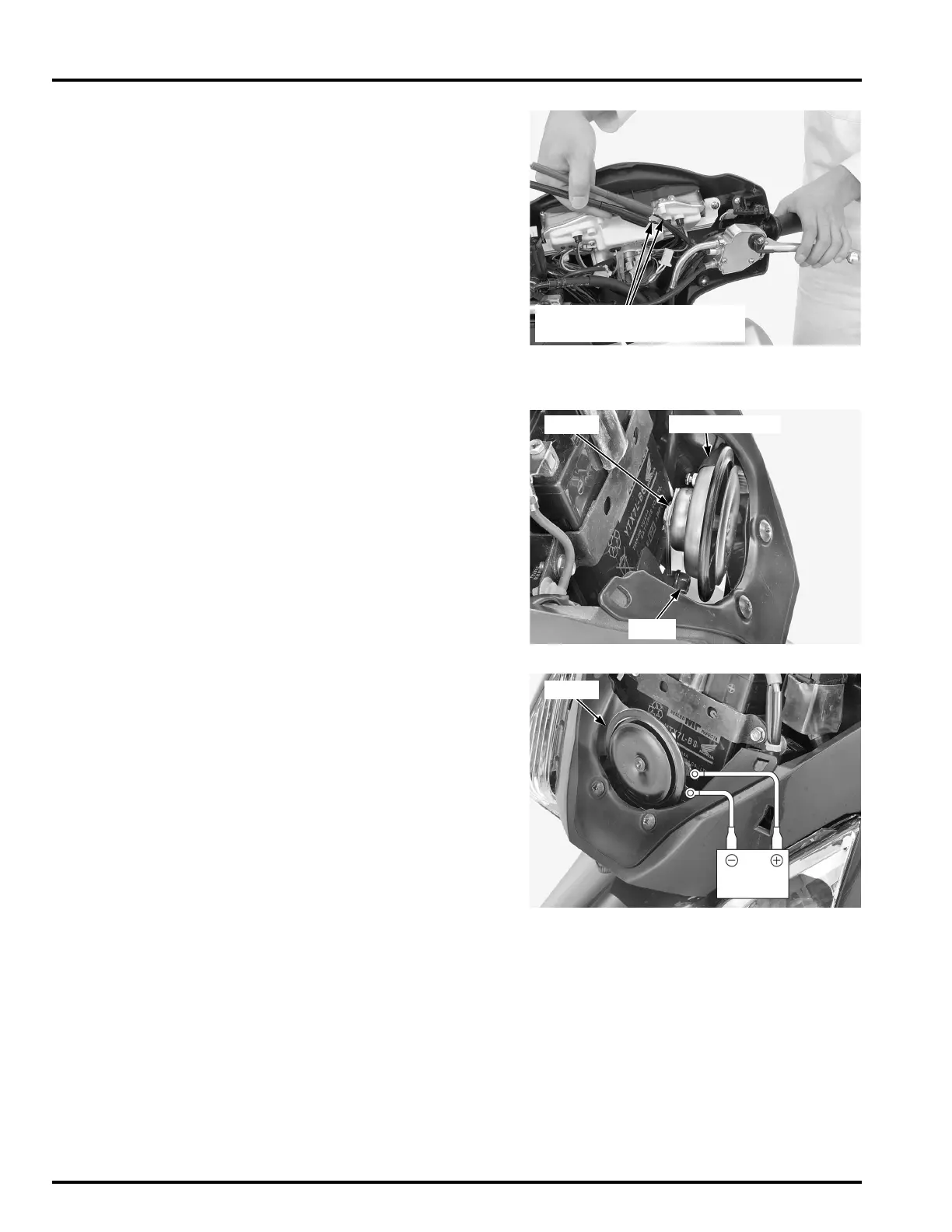

REAR
Remove the front handlebar cover (page 3-6).
Disconnect the rear brake light switch wire connec-
tors and check for continuity at the wire connector
terminals of the switch side.
There should be continuity with the rear brake lever
squeezed, and there should be no continuity when
the rear brake lever is released.
HORN
REMOVAL/INSTALLATION
Remove the front center cover (page 3-4).
Disconnect the horn connectors from the horn.
Remove the bolt and horn.
Installation is in the reverse order of removal.
INSPECTION
Remove the front center cover (page 3-4).
Disconnect the horn connectors from the horn.
Connect a 12V battery to the horn terminals.
The horn is normal if it sounds when the 12V battery
is connected to the horn terminals.
REAR BRAKE LIGHT SWITCH
WIRE CONNECTORS
To Next Page
