BRAKE SYSTEM
17-8
BRAKE PAD/DISC
BRAKE PAD REPLACEMENT
Check the fluid
level in the master
cylinder reservoir as
this operation
causes the fluid
level to rise.

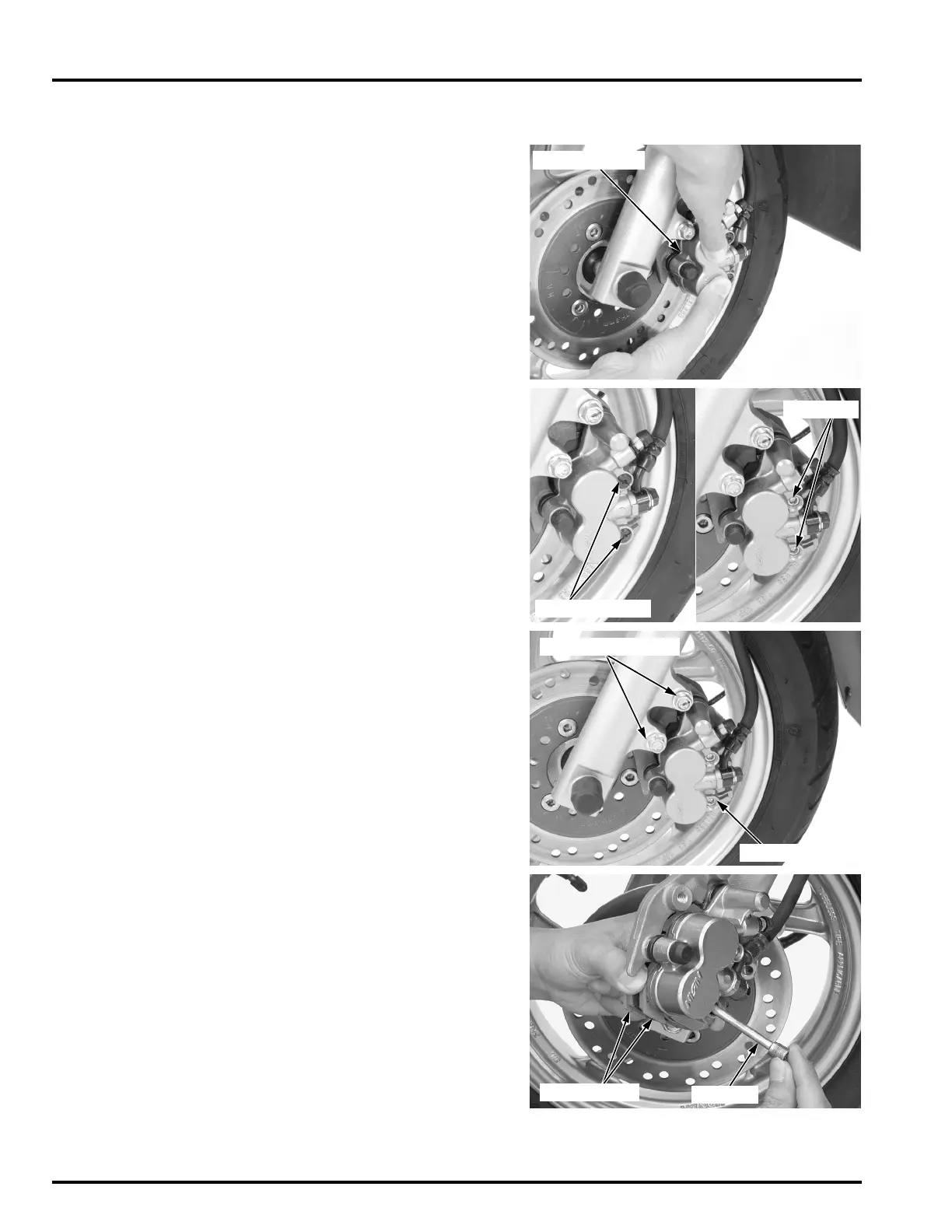

Push the caliper pistons all the way in by pushing
the caliper body inward to allow installation of new
brake pads.
Remove the brake pad pin plugs.
Loosen the brake pad pins.
Remove the mounting bolts and remove the brake
caliper from the brake disc.
Remove the pad pins and brake pads.
MOUNTING BOLTS
BRAKE CALIPER
