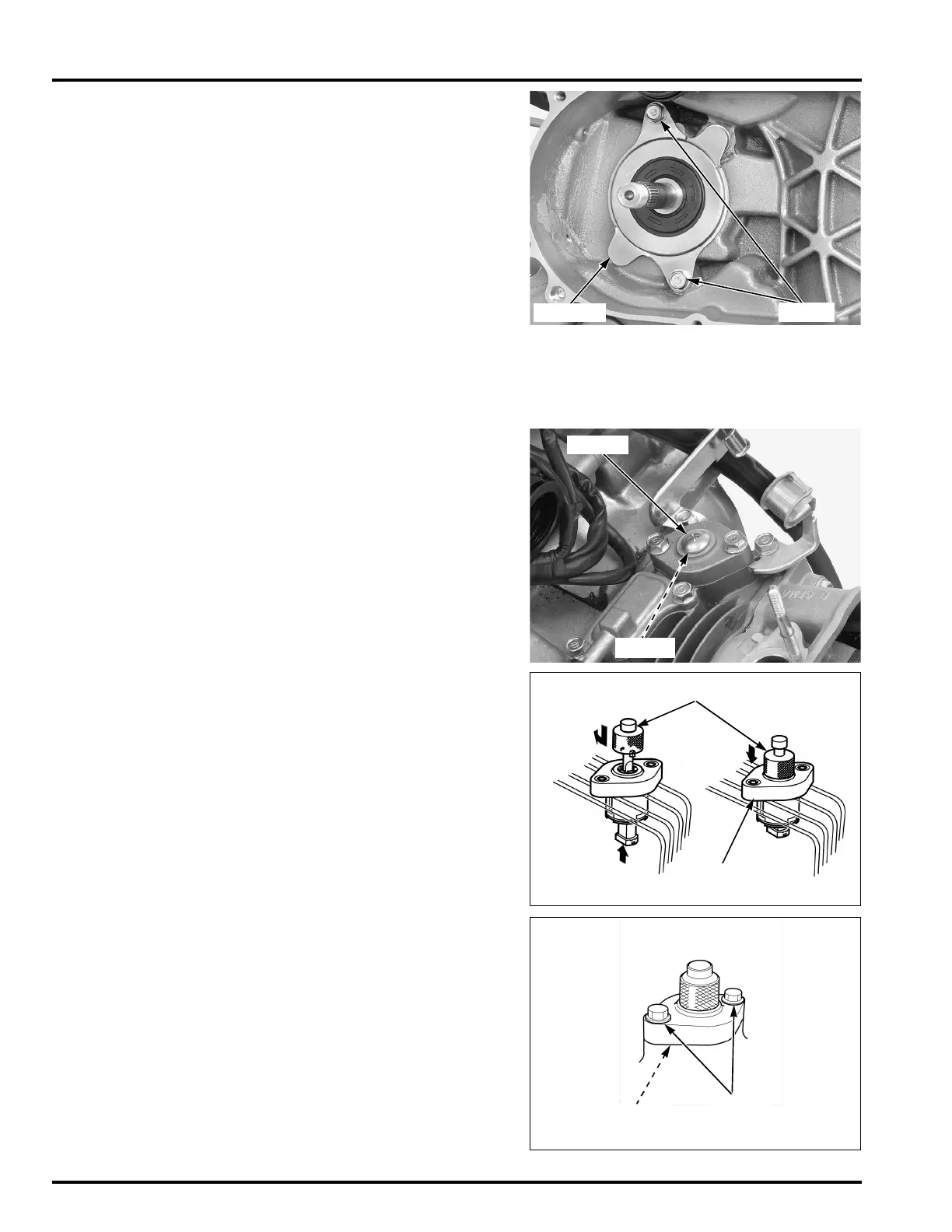

CYLINDER HEAD/VALVES
9-26
Install the crankshaft oil seal/cam chain tensioner
pivot pin holder and tighten the bolts.
Install the following:
– Cylinder head (page 9-21)
– Drive pulley (page 11-11)
CAM CHAIN TENSIONER LIFTER
REMOVAL
• The cam chain tensioner lifter can be serviced
with the engine installed in the frame.
Remove the following:
– Luggage box (page 3-8)
– Throttle body (page 6-41)
Remove the tensioner lifter screw and the O-ring.
Install the special tool into the tensioner lifter body
and turn the tool clockwise until it stops turning.
Hold the tensioner lifter by pushing the tool while
aligning the tabs of the tool with the grooves of the
tensioner lifter.
Remove the two bolts, cam chain tensioner lifter
and the gasket.
TOOL:
Tensioner lifter stopper 070MG-0010100
TENSIONER LIFTER STOPPER
TENSIONER
LIFTER/GASKET
To Next Page
