MAINTENANCE
4-20

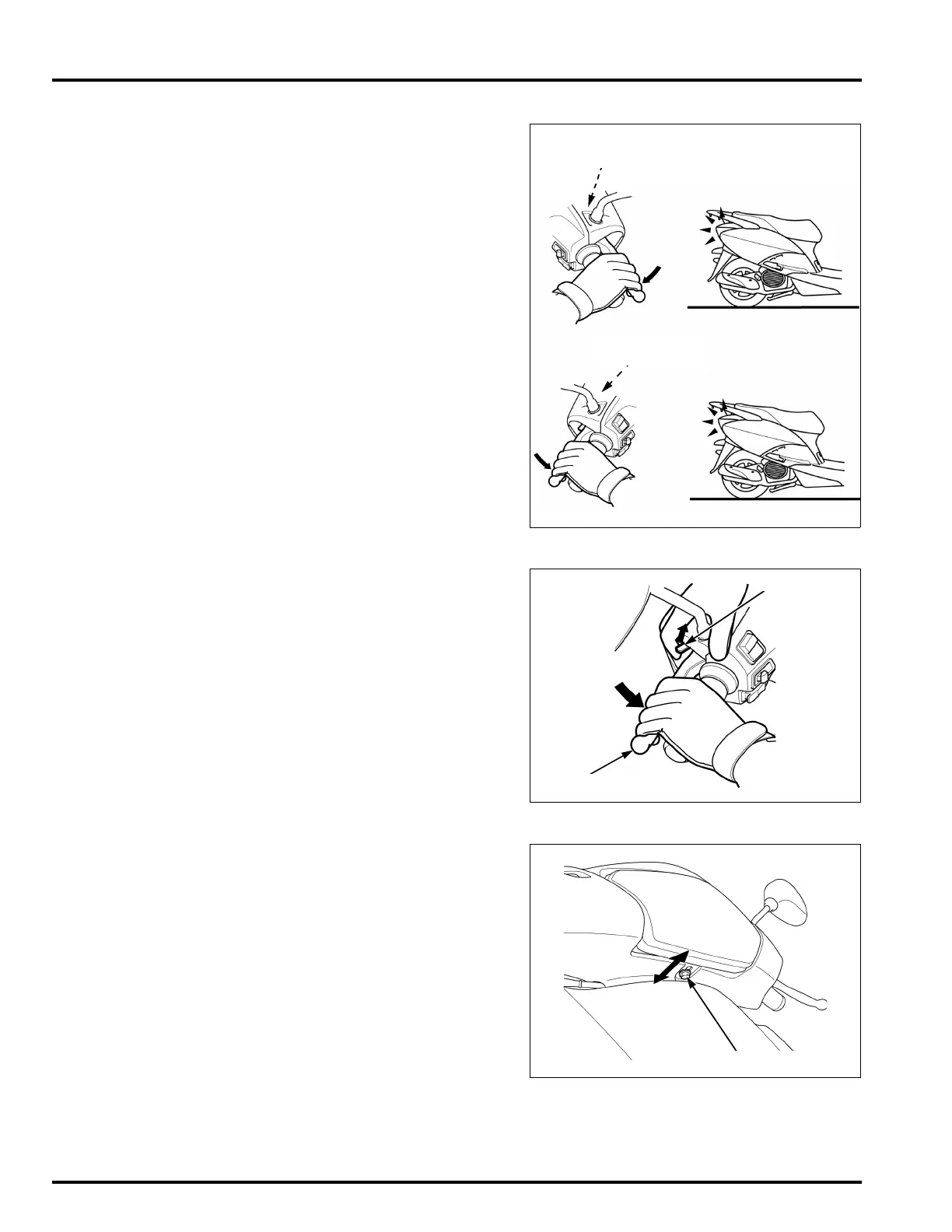

BRAKE LIGHT SWITCH
• The brake light switch on the brake lever cannot
be adjusted. If the brake light switch actuation
and brake engagement are not synchronized,
either replace the switch or malfunction parts of
the system.
Check that the brake light comes on just prior to the
brake actually being engaged.
Refer to brake light switch inspection (page 21-13).
BRAKE LOCK OPERATION
Check the brake
lock operation after
the rear brake lever
freeplay is checked
and adjusted (page
4-17).
Squeeze the rear brake lever and set the lock lever
by pulling it up.
Check that the rear wheel is locked.
HEADLIGHT AIM
Place the scooter on a level ground.
Adjust the headlight beam vertically by loosing the
headlight aim adjusting bolt.
Hold the headlight and tighten the adjusting bolt.
FRONT BRAKE
LIGHT SWITCH
REAR BRAKE
LIGHT SWITCH
Adjust the headlight
beam as specified
by local laws and
regulations.
TORQUE: 1.8 N·m (0.18 kgf·m, 1.3 lbf·ft)
