CYLINDER HEAD/VALVES
9-25

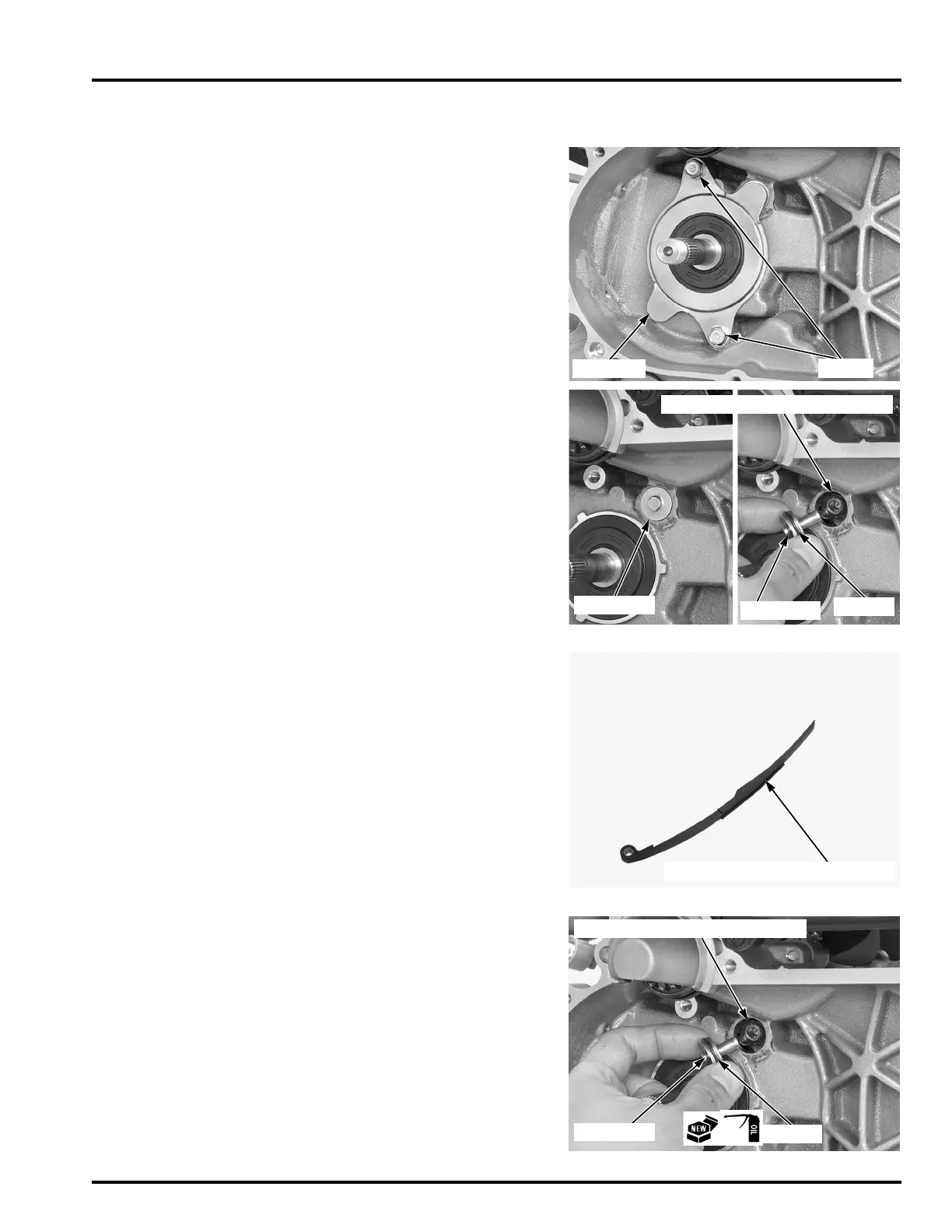

CAM CHAIN TENSIONER SLIDER
REMOVAL
Remove the following:
– Drive pulley (page 11-8)
– Cylinder head (page 9-7)
Remove the bolts and crankshaft oil seal/cam chain
tensioner pivot pin holder.
Remove the pivot pin, O-ring and cam chain
tensioner slider.
INSPECTION
Check the sliding area of the cam chain tensioner
slider for excessive wear or damage.
INSTALLATION
Install the cam chain tensioner slider to the left
crankcase.
Coat a new O-ring with engine oil and install it to
the pivot pin groove.
Install the pivot pin into the cam chain tensioner
slider hole.
HOLDER
BOLTS
O-RING
CAM CHAIN TENSIONER SLIDER
PIVOT PIN
PIVOT PIN
CAM CHAIN TENSIONER SLIDER
PIVOT PIN
O-RING
CAM CHAIN TENSIONER SLIDER
