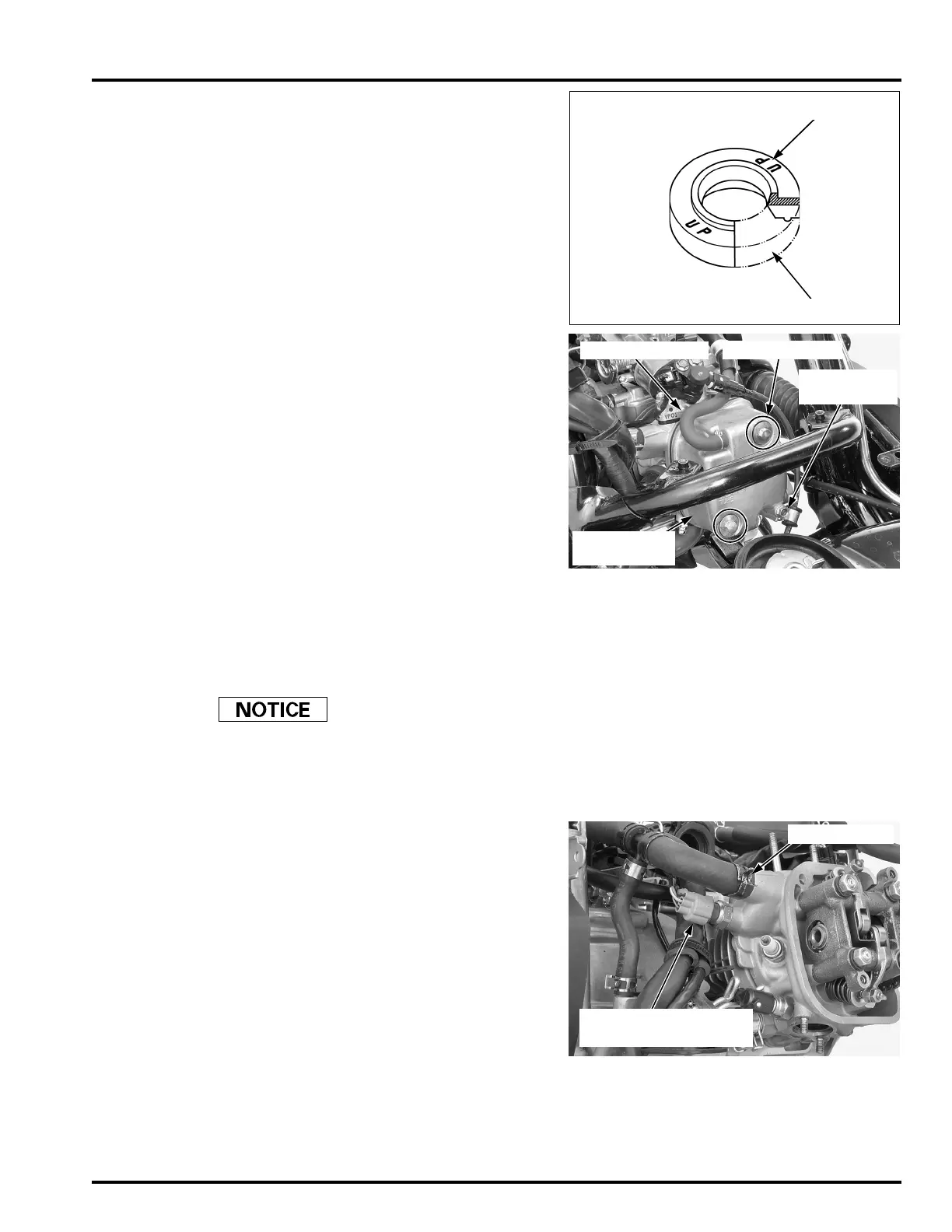

CYLINDER HEAD/VALVES
9-7
Install the mounting rubber with its "UP" mark fac-
ing up.
Install the cylinder head cover onto the cylinder
head.
Install the special bolts and tighten them to the
specified torque.
Connect the crankcase breather hose.
Set the fuel hose clamp and tighten the bolt.
Install the following:
– Front body cover (page 3-9)
– Luggage box (page 3-8)
– Grab rail/carrier (page 3-8)
– Side body cover (page 3-4)
CAMSHAFT/CYLINDER HEAD
CAM SHAFT HOLDER/CYLINDER
HEAD REMOVAL
• If performing the cylinder head service without
disconnecting the O
2 sensor cap, cover the cap to
prevent it from being contaminated by the oil.
• Once the camshaft holder is removed, the cylin-
der head gasket must be replaced with new one.
Drain the coolant (page 7-8).
Drain the engine oil (page 4-11).
Remove the following:
– Engine (page 8-4)
– Exhaust pipe/muffler (page 3-13)
– Cylinder head cover (page 9-6)
– Throttle body (page 6-41)
– Intake pipe (page 6-56)
Disconnect the following:
– O
2 sensor connector (page 6-54)
– ECT sensor 3P (Gray) connector
– Water hose
TORQUE: 12 N·m (1.2 kgf·m, 9 lbf·ft)
CYLINDER
HEAD COVER
SPECIAL BOLTS
BREATHER HOSE
FUEL HOSE
CLAMP BOLT
ECT SENSOR 3P (Gray)
CONNECTOR
WATER HOSE
To Next Page
