DRIVE PULLEY/DRIVEN PULLEY/CLUTCH
11-19
DRIVEN PULLEY

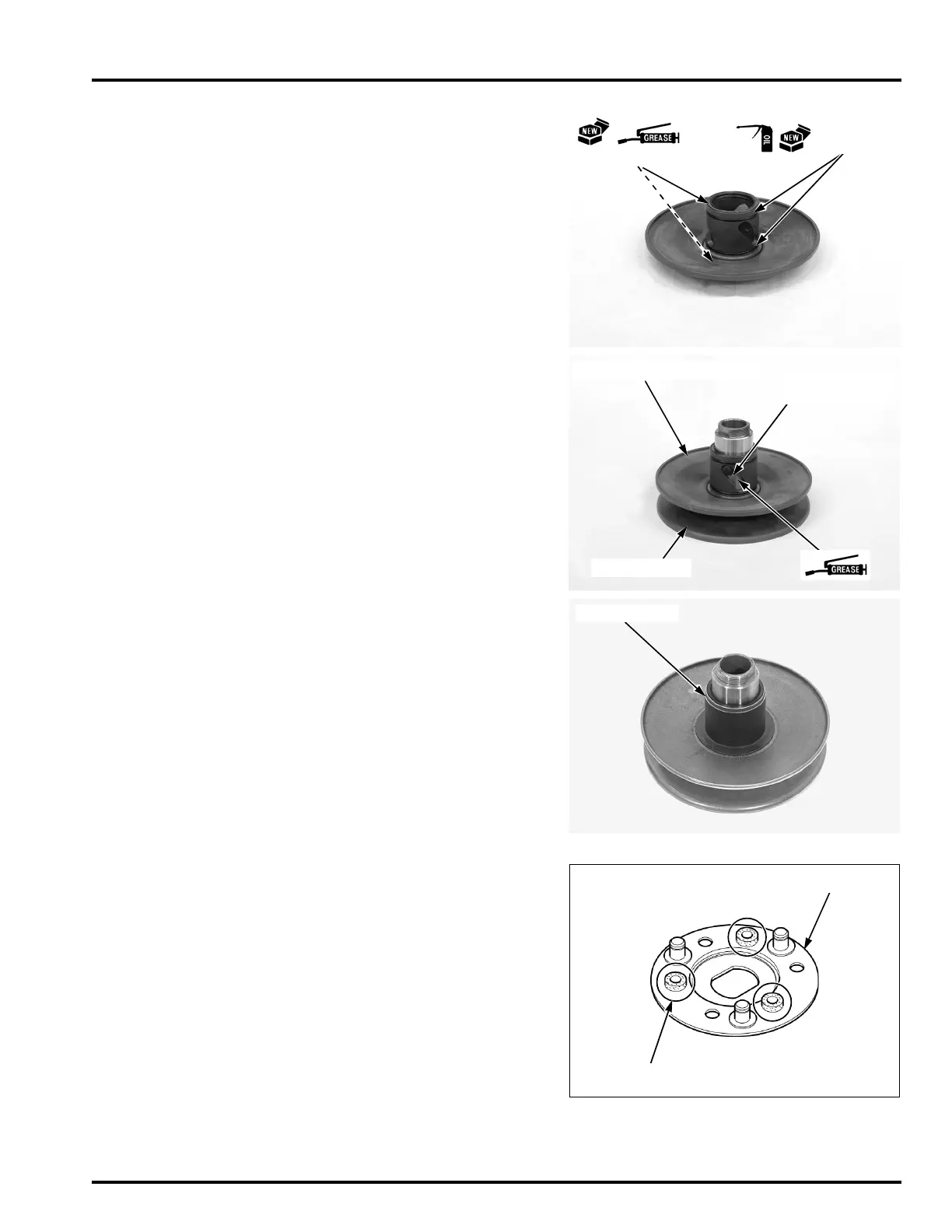

Apply grease to new oil seal lips and install them
into the movable driven face.
Coat new O-rings with engine oil and install them
into the movable driven face grooves.
Clean any oil and grease from the pulley face.
Install the movable driven face onto the driven face.
Install the guide rollers and guide pins.
Apply 2.0 – 2.5 g of grease (Shell ALVANIA R3 or
IDEMITSU AUTOREX B or SHIN-NIHON POWER-
NOC WB3 or equivalent) to each guide groove.
Install the seal collar to the driven pulley.
CLUTCH
Install the damper rubbers onto the drive plate.
GUIDE
ROLLERS/PINS
MOVABLE DRIVEN FACE
DRIVEN FACE
DRIVE PLATE
DAMPER RUBBERS
