DRIVE PULLEY/DRIVEN PULLEY/CLUTCH
11-9

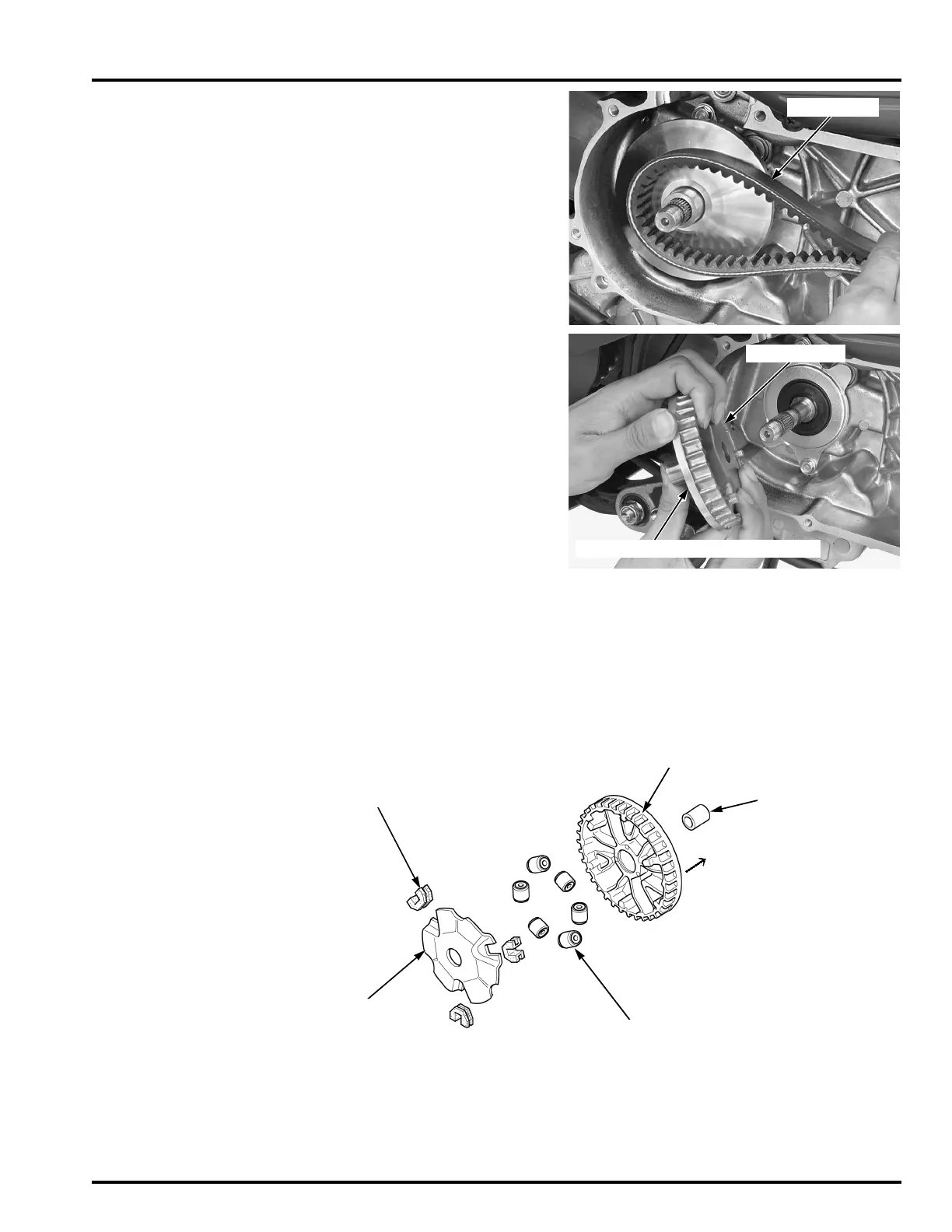

Slide the drive belt off from the drive pulley boss by
squeezing the drive belt.
Remove the movable drive face assembly while
holding the back of the face (ramp plate) and drive
face boss.
DISASSEMBLY/ASSEMBLY
Remove the following:
– Drive face boss
– Ramp plate
– Slide pieces
– Weight rollers
Assembly is in the reverse order of disassembly.
• Clean any oil and grease from the weight rollers and movable drive face.
MOVABLE DRIVE FACE ASSEMBLY
RAMP PLATE
SLIDE PIECES
DRIVE FACE
BOSS
MOVABLE DRIVE FACE
WEIGHT ROLLERS
RAMP PLATE
Left crankcase
cover side
