LIGHTS/METERS/SWITCHES
21-7
SPEEDOMETER
BULB REPLACEMENT
Remove the front handlebar cover (page 3-6).
Pull out the bulb socket from the speedometer.
Remove the bulb from the socket.
Installation is in the reverse order of removal.

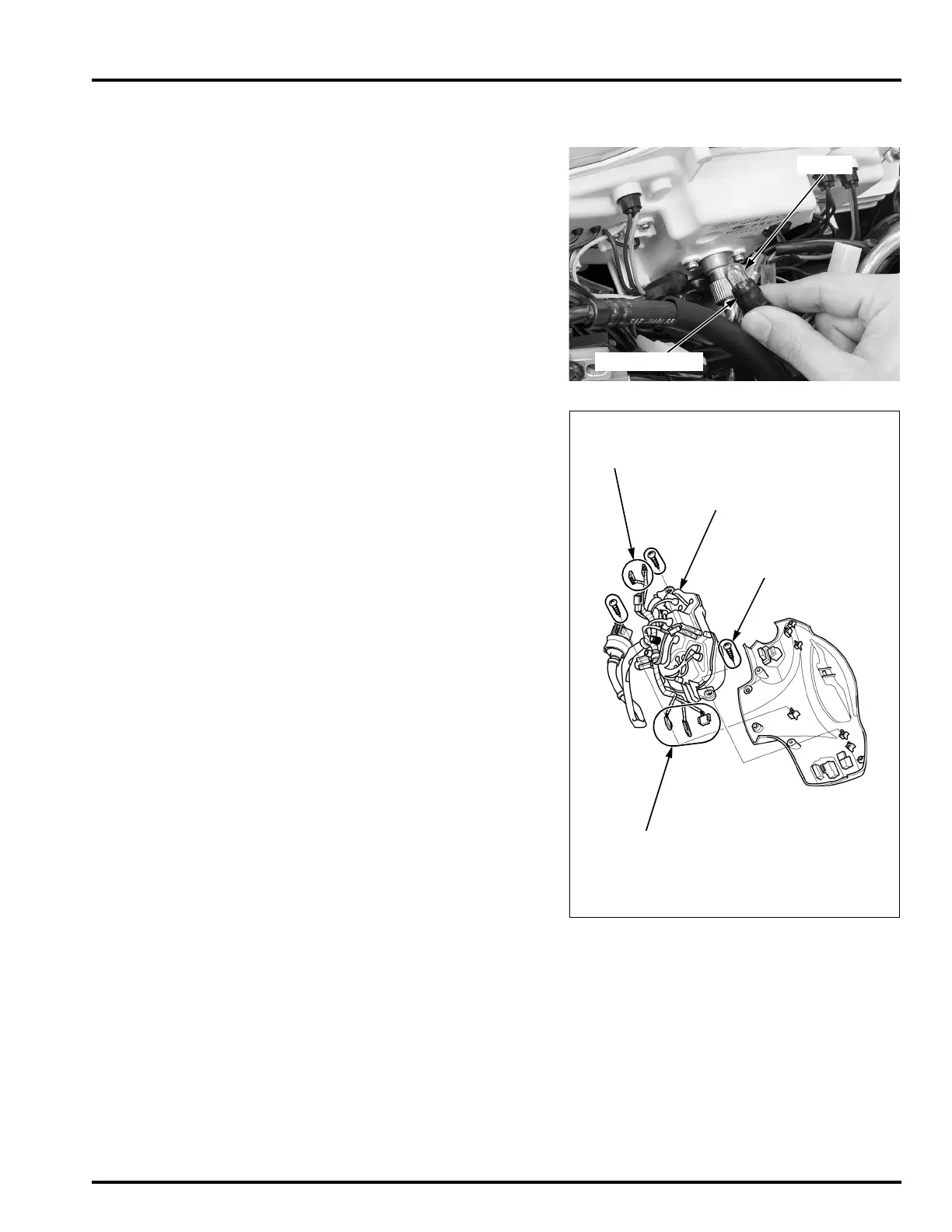

REMOVAL/INSTALLATION
Remove the rear handlebar cover (page 3-7).
Disconnect the left and right handlebar switch con-
nectors.
Remove the three screws and speedometer.
Installation is in the reverse order of removal.
Route the wire har-
ness properly (page
1-17).
RIGHT HANDLEBAR
SWITCH CONNECTORS
SPEEDOMETER
SCREWS
LEFT HANDLEBAR
SWITCH CONNECTORS
To Next Page
