LIGHTS/METERS/SWITCHES
21-11

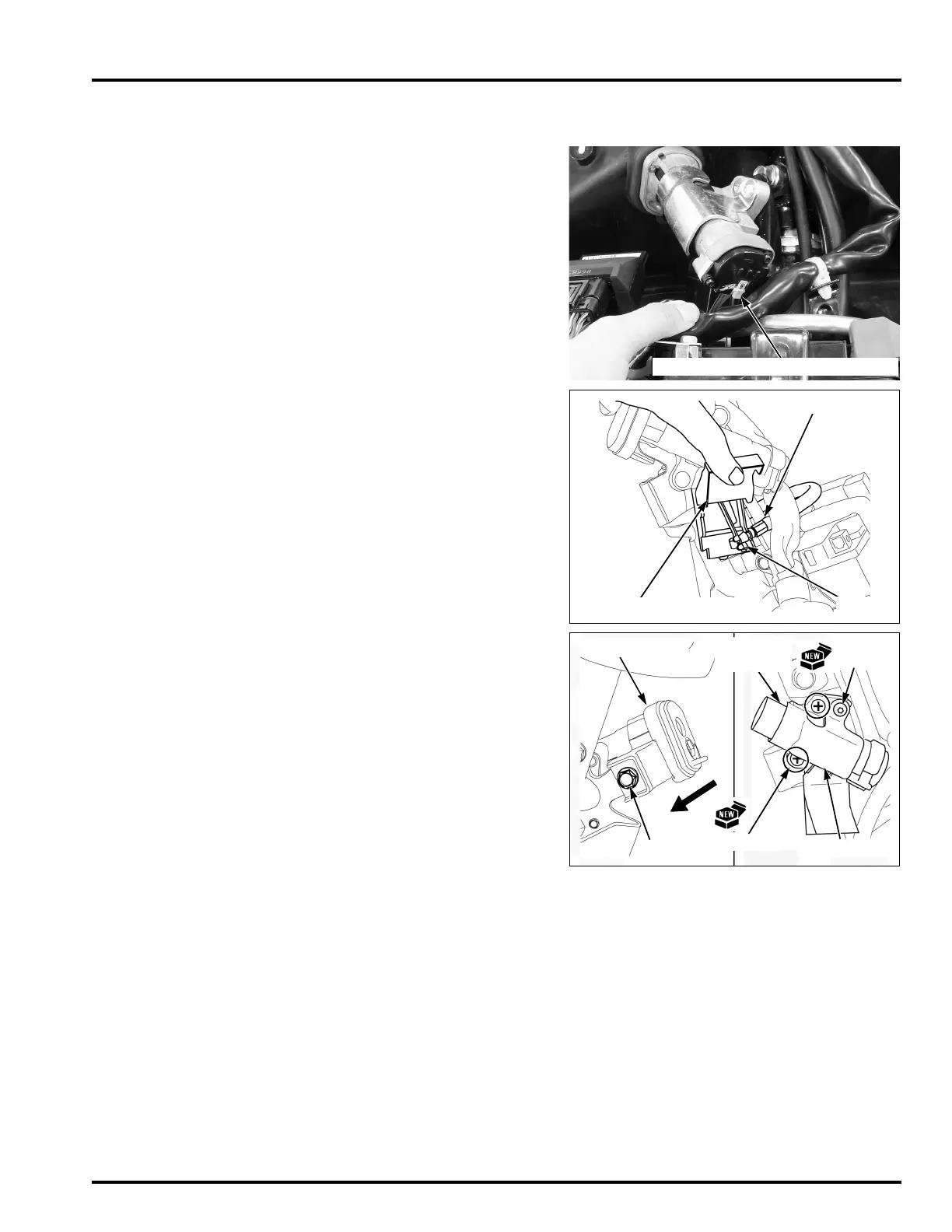

IGNITION SWITCH
REMOVAL
Remove the front inner cover (page 3-12).
Disconnect the ignition switch 3P connector.
Open the seat lock arm cover and disconnect the
seat lock cable from the arm.
Remove the bolt and key shutter.
Remove the following:
– Mount screws
– Ignition switch
– Socket bolt
– Protector
Installation is in the reverse order of removal.
• Install the new socket bolt and new mount screw.
• When install the key shutter, push that to the
ignition switch. If the key shutter floated, there is
the case that can not completely insert the key in.
IGNITION SWITCH 3P CONNECTOR
SEAT LOCK ARM COVER
SEAT LOCK CABLE
ARM
TORQUE: Ignition switch protector socket bolt
8.5 N·m (0.87 kgf·m, 6.3 lbf·ft)
IGNITION
SWITCH
BOLT
SCREWS
KEY SHUTTER
PROTECTOR
SOCKET
BOLT
To Next Page
