GENERAL INFORMATION
1-17

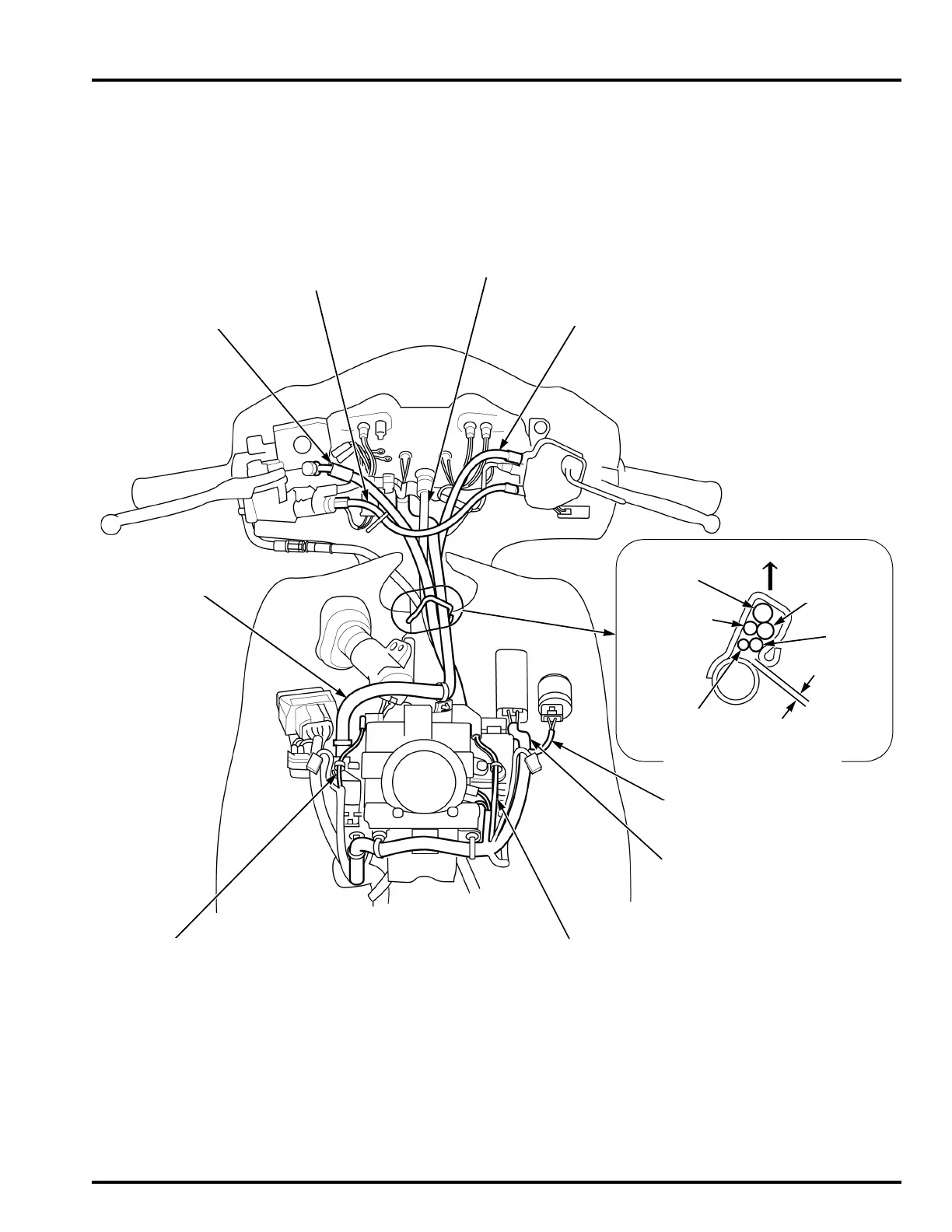

CABLE & HARNESS ROUTING
REAR BRAKE CABLE
FRONT BRAKE HOSE
METER/HANDLEBAR
SWITCH WIRE
TURN SIGNAL RELAY WIRE
BATTERY POSITIVE (+) CABLE
STARTER RELAY WIRE
FRONT
BRAKE
HOSE
THROTTLE
CABLE
METER/
HANDLEBAR
SWITCH WIRE
REAR
BRAKE
CABLE
CONNECTING CABLE
BATTERY NEGATIVE (–) CABLE
SPEEDOMETER CABLE
View from the lower side:
FRONT
SIDE
SPEEDOMETER
CABLE
5 mm
(0.2 in)
MAX.
